Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2670 |

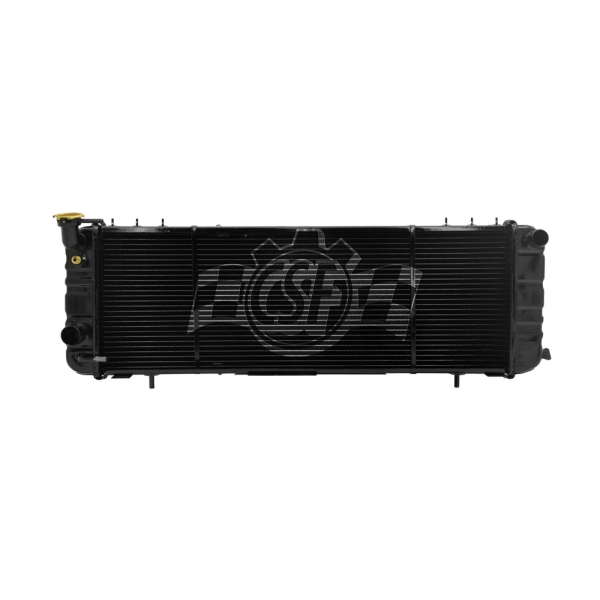

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Left |
Box Height (in) | 8 5/8 |
Box Length (in) | 38 3/4 |
Box Weight (lbs) | 16 |
Box Width (in) | 16 1/16 |
Core Length | 31 |
Core Material | Copper |
Core Thickness | 1 1/4 |
Core Width | 10 15/16 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4501 |
Hazardous Material | No |
Inlet Length (in) | 11 1/8 |
Inlet Width (in) | 2 1/2 |
No. Of Rows | 2 |
UPC | 710353026700 |
OE Part Number | 52004921, 52006341, 52028131, 52028134, 52030000, 52079682, 52079693, 52080104, 52080115, 53007135, 895 2004 917, 8011193, 895 2029 045, CU1193 |
Oil Cooler (in) | 7 1/2 (high-effeciency Concentric Type) |
Outlet Length(in) | 11 1/8 |
Outlet Width | 2 1/2 |
Radiator Cap Supplied | No |
Tank Material | Brass |
Tech Note | Rugged ALL METAL model; Condenser mounts on top bracket, bumper side. |
Top Hose Fitting (in) | 1 1/4 Right |
Year Make Model | Trim | Engine |
---|---|---|
1991-2001 Jeep Cherokee | All Trims | 6 Cyl 4.0L |
1998 Jeep Cherokee | All Trims | 4 Cyl 2.5L |
2000 Jeep Cherokee | All Trims | 4 Cyl 2.5L |
