Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2624 |

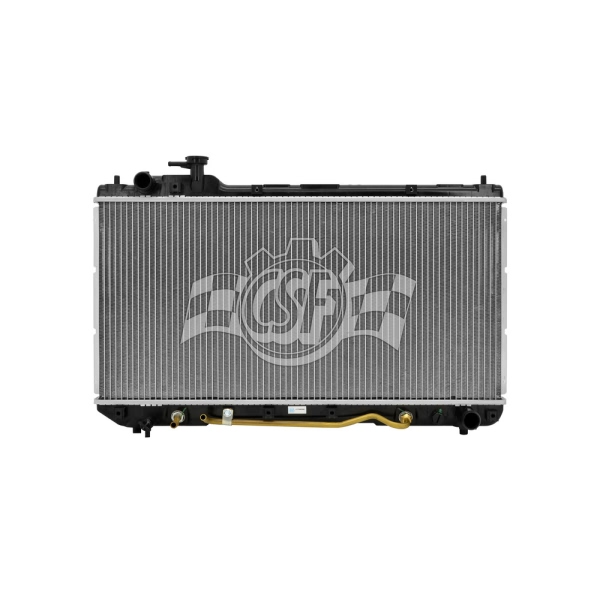

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/4 Right |
Box Height (in) | 6 1/16 |
Box Length (in) | 30 7/16 |
Box Weight (lbs) | 10 |
Box Width (in) | 21 3/16 |
Core Length | 13 3/4 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 27 7/8 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4514 |
Hazardous Material | No |
Inlet Length (in) | 28 1/8 |
Inlet Width (in) | 1 5/16 |
No. Of Rows | 1 |
UPC | 710353026243 |
OE Part Number | 2292, 2293, 16400-7A500, CU2292, 16400-7A490, 8012292, 221-3135 |
Oil Cooler (in) | 15 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 28 1/8 |
Outlet Width | 1 3/4 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 1/4 Left |
Year Make Model | Trim | Engine |
---|---|---|
1998-2000 Toyota RAV4 | All Trims | 4 Cyl 2.0L |
