Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2622 |

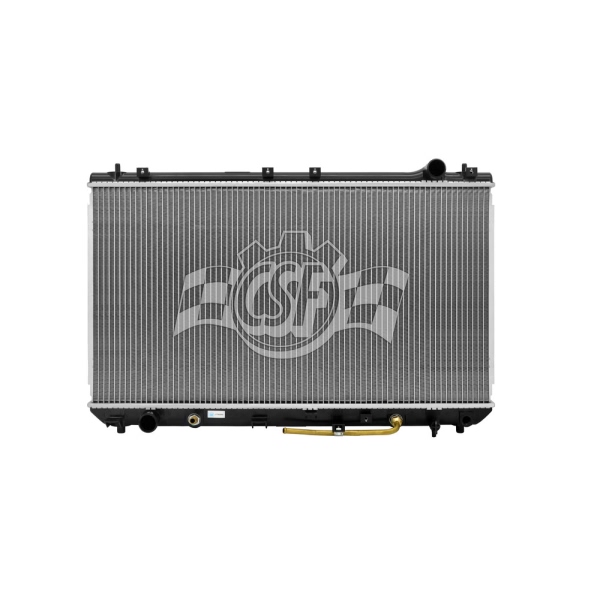

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Left |
Box Height (in) | 4 14/16 |
Box Length (in) | 31 5/8 |
Box Weight (lbs) | 11 |
Box Width (in) | 21 9/16 |
Core Length | 15 13/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 29 1/16 |
Cross-flow/ Down-flow | Down Flow |
Hazardous Material | No |
Inlet Length (in) | 29 1/2 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353026229 |
OE Part Number | 16400-0A062, 1910, 8012299, 16400-0A052, 16400-20161, 16400-0A050, 2299, 16400-0A200, 16400-20091, 8012434, 16400-0A270, 16400-0A190, CU2299, 8011910, 16400-0A201, 221-0501, 221-0502, 2004, CU1910, 16400-0A061, 16400-20090, 16400-0A260, 2624, 16400-0A051 |
Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 29 1/2 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 5/16 Right |
Year Make Model | Trim | Engine |
---|---|---|
1997-2001 Lexus ES300 | All Trims | 6 Cyl 3.0L |
1997-2001 Toyota Camry | All Trims | 6 Cyl 3.0L |
1999-2003 Toyota Solara | All Trims | 6 Cyl 3.0L |
