Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2606 |

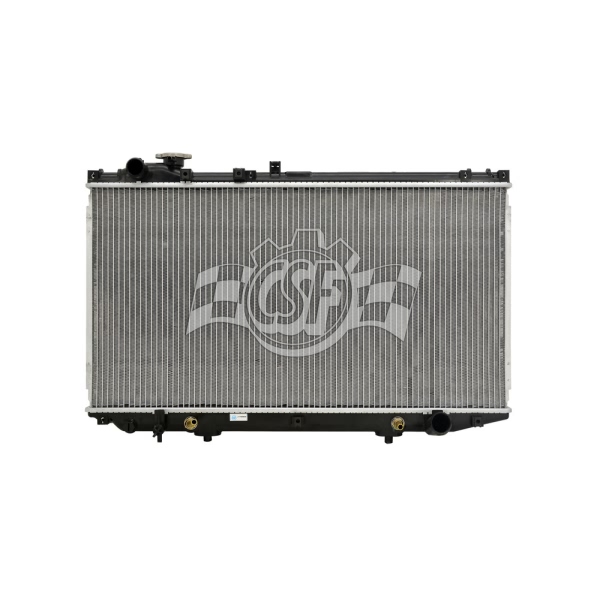

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Right |
Box Height (in) | 5 11/16 |
Box Length (in) | 32 5/8 |
Box Weight (lbs) | 8 |
Box Width (in) | 22 3/4 |
Core Length | 15 13/16 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 29 13/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4502 |
Hazardous Material | No |
Inlet Length (in) | 30 1/4 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353026069 |
OE Part Number | 16400-46570, CU2222, 8012222, 221-3121 |
Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 30 1/4 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 5/16 Left |
Year Make Model | Trim | Engine |
---|---|---|
1998-2005 Lexus GS300 | All Trims | 6 Cyl 3.0L |
1998-2000 Lexus GS400 | All Trims | 8 Cyl 4.0L |
