Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 2578 |

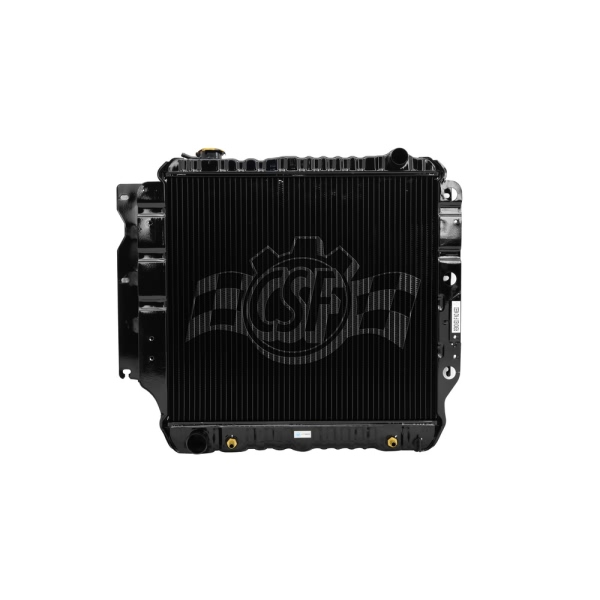

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Left |
Box Height (in) | 5 11/16 |
Box Length (in) | 28 1/16 |
Box Weight (lbs) | 20 |
Box Width (in) | 25 5/16 |
Core Length | 18 1/8 |
Core Material | Copper |
Core Thickness | 1 11/16 |
Core Width | 20 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4501 |
Hazardous Material | No |
Inlet Length (in) | 20 1/16 |
Inlet Width (in) | 2 1/16 |
No. Of Rows | 3 |
UPC | 710353025789 |
OE Part Number | 52004781, 52006122, 52006123, 52006124, 52006125, 52007227, 52007228, 52040229, 52040285, 52040286, 52040287, 52040288, 8952040229, 8952040285, 8952040286, 8952040287, 8952040288, 8011015, 52028112 (H.D.), 52080180 (H.D.), 8012101, 52080183 AB (H.D.), 520 |
Oil Cooler (in) | 12 (high-effeciency Concentric Type) |
Outlet Length(in) | 20 1/16 |
Outlet Width | 2 |
Radiator Cap Supplied | No |
Tank Material | Brass |
Tech Note | Rugged ALL METAL Heavy Duty, Multifit model; Supplied with snap-on & push-on oil cooler fittings; Removable bracket for applications with A/C. |
Top Hose Fitting (in) | 1 1/4 Right |
Year Make Model | Trim | Engine |
---|---|---|
1987-1995 Jeep Wrangler | All Trims | 4 Cyl 2.5L |
1991-1995 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
1997-2002 Jeep Wrangler | All Trims | 4 Cyl 2.5L |
1997-2004 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
