Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Walker |
Part Number | 31694 |

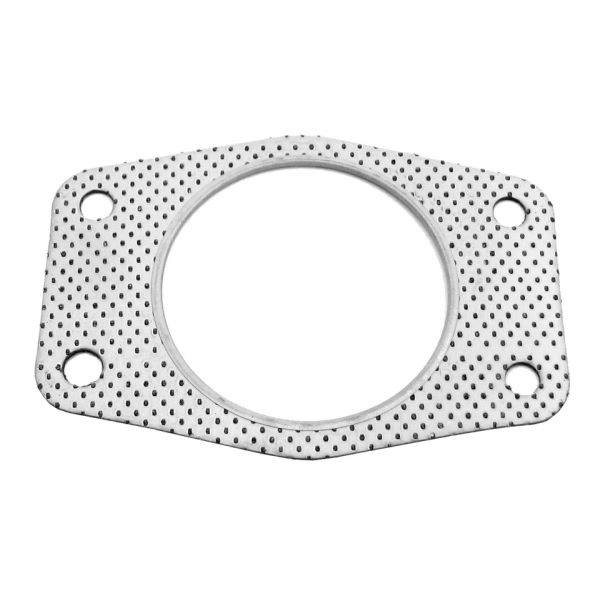

Part Description | Perforated Metal |
Bolt Hole Center to Center Distance 1 | 1.875 |
Bolt Hole Center to Center Distance 1 (in) | 1.9219 |
Bolt Hole Center to Center Distance 2 | 4.375 |
Bolt Hole Center to Center Distance 2 (in) | 4.391 |
Bolt Hole Diameter | 0.375 |
Gasket / Seal Material | Perforated Metal, Fiber Core And Fire Ring |
Gasket Thickness | 0.11 |
Gasket Type | 4 Bolt |
Internet Product Code (IPC) | 4EB337F8847 |
Item Grade | Standard Replacement |
Item has MSDS (SDS) | N |
Material | Perforated Metal With Fiber Core And Metal Fire Ring |
Max Year Covered | 2010 |
MFG Brand Name | Walker Exhaust |
MFG Model # (Series) | 31694 |
MFG Name | Tenneco, Inc |
Min Year Covered | 2004 |
Most Popular Make / Model | Volvo S40 |
Most Popular Year | 2005 |
Package Contents | 1 Gasket |
Port 1 Length | 3.000 |
Port 1 Length (in) | 2.9369 |
Port 1 Width | 2.9369 or 3.000 |
Product Grade | Economy |
Supplier Company Name | Tenneco, Inc |
Thickness | 0.090 |
Total Part VIO | 80171 |
UPC | 086387316941 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2010 Volvo S40 | All Trims | 5 Cyl 2.4L |
2005-2010 Volvo V50 | All Trims | 5 Cyl 2.4L |
