Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Walker |
Part Number | 31542 |

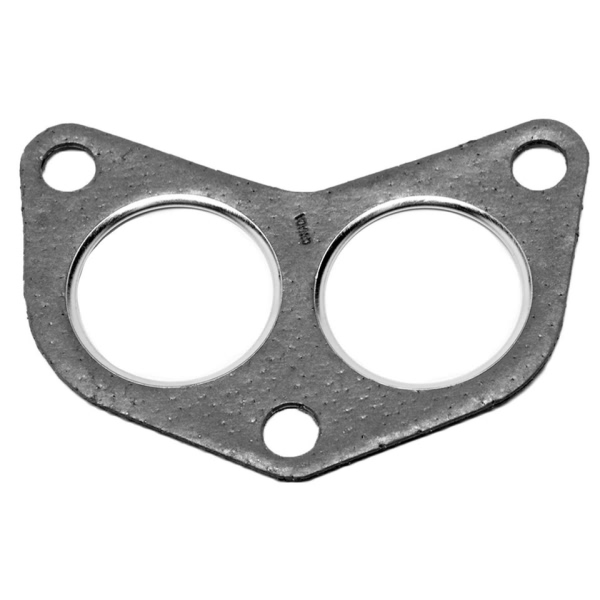

Part Description | Fiber 3 Bolt Exhaust Pipe Flange Gasket |
Bolt Hole Center to Center Distance 1 | 4.000 |
Bolt Hole Center to Center Distance 1 (in) | 4 |
Bolt Hole Center to Center Distance 2 | 1.625 |
Bolt Hole Center to Center Distance 2 (in) | 2.61 |
Bolt Hole Center to Center Distance 3 | 1.625 |
Bolt Hole Diameter | 0.375 |
Gasket / Seal Material | Fiber Material |
Gasket Thickness | 0.09 |
Gasket Type | 3 Bolt |
Internet Product Code (IPC) | 2B614A1F92B |
Item Grade | Standard Replacement |
Item has MSDS (SDS) | N |
Material | Metal With Fiber Core |
Max Year Covered | 1995 |
MFG Brand Name | Walker Exhaust |
MFG Model # (Series) | 31542 |
MFG Name | Tenneco, Inc |
Min Year Covered | 1989 |
Most Popular Make / Model | Geo Tracker |
Most Popular Year | 1995 |
Package Contents | 1 Gasket |
Port 1 Length | 1.625 |
Port 1 Length (in) | 1.69 |
Port 1 Width | 1.625 or 1.69 |
Port 2 Length | 1.625 |
Port 2 Length (in) | 1.69 |
Port 2 Width | 1.625 or 1.69 |
Product Grade | Economy |
Supplier Company Name | Tenneco, Inc |
Thickness | 0.090 |
Total Part VIO | 46254 |
UPC | 086387315425 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1995 Geo Tracker | All Trims | 4 Cyl 1.6L |
1986-1988 Nissan 200SX | All Trims | 4 Cyl 2.0L |
1989 Suzuki Sidekick | All Trims | 4 Cyl 1.3L |
1989 Suzuki Sidekick | JA | 4 Cyl 1.3L |
1989 Suzuki Sidekick | JLX | 4 Cyl 1.6L |
1989 Suzuki Sidekick | JX | 4 Cyl 1.6L |
1989-1995 Suzuki Sidekick | All Trims | 4 Cyl 1.6L |
1994 Suzuki Sidekick | JS | 4 Cyl 1.6L |
1994 Suzuki Sidekick | JX | 4 Cyl 1.6L |
