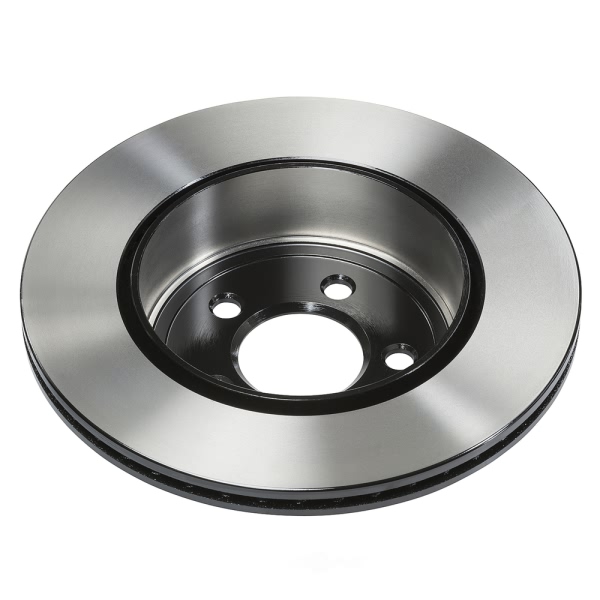

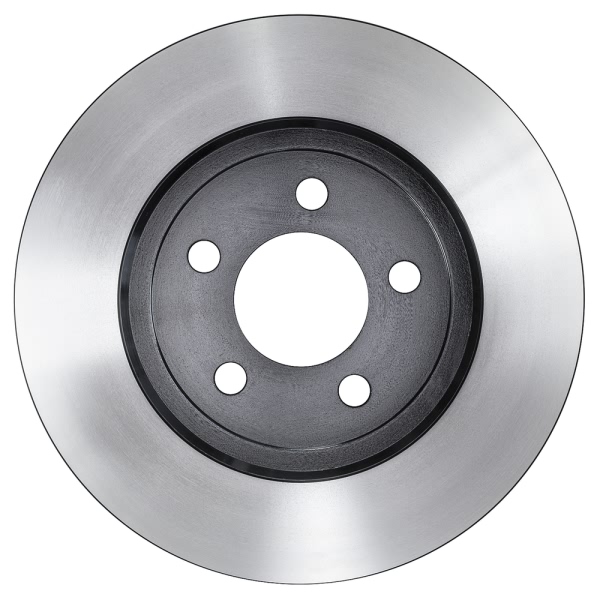

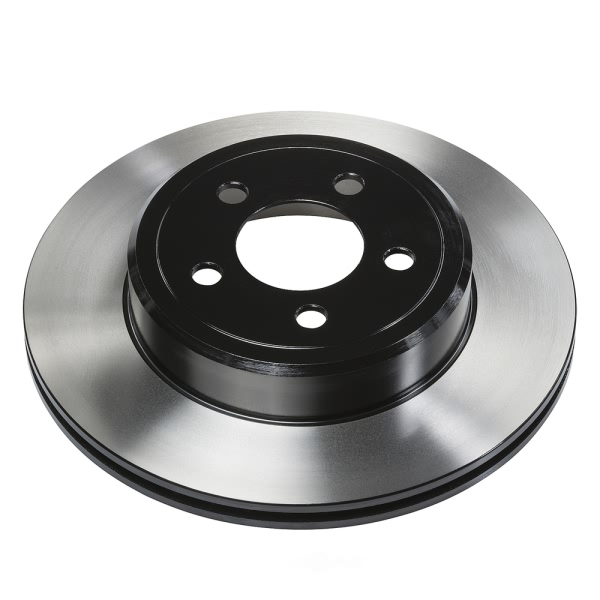

Wagner® Vented Rear Brake Rotor BD126270E

Wagner Vented Rear Brake Rotor BD126270E

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandWagner
    Part NumberBD126270E
    Part DescriptionVented Rear Brake Rotor
    Bolt Circle114.81mm (4.52")
    Lug Holes Quantity5
    Minimum Thickness20.5mm (0.81")
    Nominal Thickness22.1mm (0.87")
    Quantity1 Per Pack
    Rotor Construction1-Piece
    Rotor DesignRotors Only
    Rotor Diameter320mm (12.6")
    Rotor FinishWith E-Shield™ Coating
    Rotor Height67.056mm (2.64")
    Rotor MaterialCast Iron
    Rotor StylePlain
    UPC008536947585
    Warning: California’s Proposition 65
  • Features

    Wagner Vented Rear Brake Rotor are featured as follows:
    • Rotor preparation time is reduced by a Vapor Corrosion Inhibitor (VCI) bag and thus saves on installation time.
    • Lessened effort to break in pads with a smooth surface finish.
    • This can be attributed to a superior metallurgy and tighter tolerances that make it possible for optimal performance to be achieved.
    • To avoid improper balance issues, the outer diameter is precision-cut finished.
    • Reliability was tested within the reach of these fields.
    • It prevents corrosion through E-Shield coating.
    • Higher surface area means increased stopping power as well as improved safety measures.
    • Increased surface are also improves heat dissipation.
    • It reduces rotor noise by patented vane/rib design.
    • They are ready to use upon purchase.
    • Cooling can be enhanced more by using special vane designs.
    • Special rib designs help control NVH (noise, vibration, harshness).
    • Thickness variations and lateral run-outs are minimized due to tight tolerance specifications.
    • To avoid oil traces enclosed within Vapor Corrosion Inhibitor (VCI) bag.
    Wagner Vented Rear Brake Rotor BD126270E is a premium brake part that offers original equipment fit, form, and dependability. Features a Vapor Corrosion Inhibitor (VCI) bag for reduced rotor prep and installation time, a smooth surface finish for less pad break-in time, and superior metallurgy for optimal performance. Precision-cut finish of the outer diameter prevents balance issues, while the patented vane/rib design reduces rotor noise. The E-Shield coating prevents corrosion, and the increased surface area improves heat dissipation for more effective and safer stopping power. Wagner Vented Rear Brake Rotor are field-tested for reliability and are ready to install right out of the box.
    A Federal-Mogul Corporation brand, Wagner Brake is a leader in the automotive industry, known for its innovative "Global Friction" OE & Aftermarket products. Their premium brake parts exceed original equipment standards in fit, form, and dependability, consistently setting new industry standards with their cutting-edge braking technologies.
  • Vehicle Fitment

    Year Make Model Trim Engine
    2005-2011 Chrysler 300All Trims8 Cyl 5.7L
    2006-2010 Chrysler 300All Trims6 Cyl 3.5L
    2012-2015 Chrysler 300All Trims6 Cyl 3.6L
    2013-2015 Chrysler 300All Trims8 Cyl 5.7L
    2016-2019 Chrysler 300All TrimsAll Engines
    2020 Chrysler 300All Trims6 Cyl 3.6L
    2020 Chrysler 300All Trims8 Cyl 5.7L
    2009-2010 Dodge ChallengerAll Trims6 Cyl 3.5L
    2009-2013 Dodge ChallengerAll Trims8 Cyl 5.7L
    2011-2013 Dodge ChallengerAll Trims6 Cyl 3.6L
