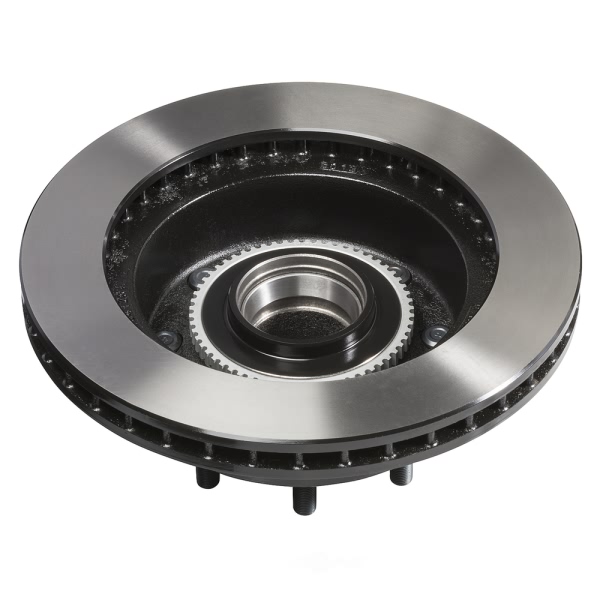

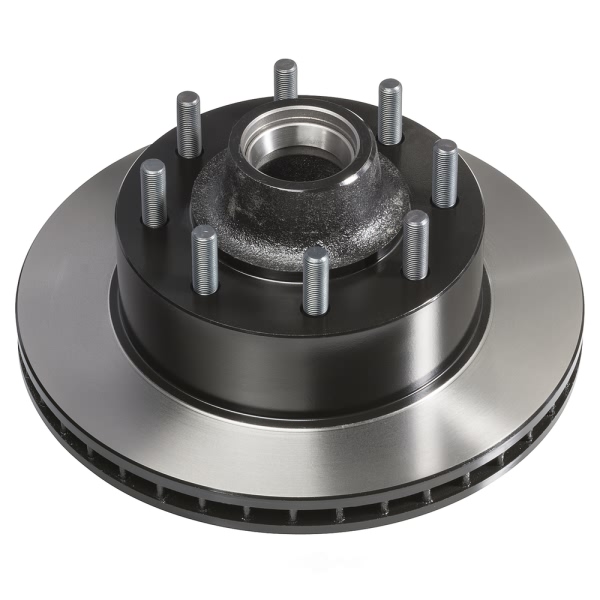

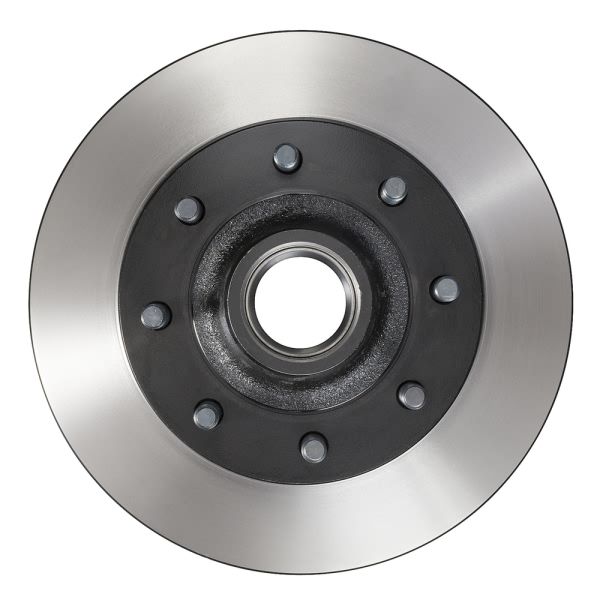

Wagner® Vented Front Brake Rotor And Hub Assembly BD125477E

Wagner Vented Front Brake Rotor And Hub Assembly BD125477E

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandWagner
    Part NumberBD125477E
    Part DescriptionVented Front Brake Rotor And Hub Assembly
    Bolt Circle165.1mm (6.5")
    Lug Holes Quantity8
    Minimum Thickness28mm (1.102")
    Nominal Thickness29.97mm (1.18")
    Quantity1 Per Pack
    Rotor Construction1-Piece
    Rotor DesignHub and Rotor Assembly
    Rotor Diameter330mm (12.99")
    Rotor FinishWith E-Shield™ Coating
    Rotor MaterialCast Iron
    Rotor StylePlain
    UPC008536933588
    Warning: California’s Proposition 65
  • Features

    Wagner Vented Front Brake Rotor are featured as follows:
    • Rotor preparation time is reduced by a Vapor Corrosion Inhibitor (VCI) bag and thus saves on installation time.
    • Lessened effort to break in pads with a smooth surface finish.
    • This can be attributed to a superior metallurgy and tighter tolerances that make it possible for optimal performance to be achieved.
    • To avoid improper balance issues, the outer diameter is precision-cut finished.
    • Reliability was tested within the reach of these fields.
    • It prevents corrosion through E-Shield coating.
    • Higher surface area means increased stopping power as well as improved safety measures.
    • Increased surface are also improves heat dissipation.
    • It reduces rotor noise by patented vane/rib design.
    • They are ready to use upon purchase.
    • Cooling can be enhanced more by using special vane designs.
    • Special rib designs help control NVH (noise, vibration, harshness).
    • Thickness variations and lateral run-outs are minimized due to tight tolerance specifications.
    • To avoid oil traces enclosed within Vapor Corrosion Inhibitor (VCI) bag.
    Wagner Vented Front Brake Rotor BD125477E is a premium brake part that offers original equipment fit, form, and dependability. Features a Vapor Corrosion Inhibitor (VCI) bag for reduced rotor prep and installation time, a smooth surface finish for less pad break-in time, and superior metallurgy for optimal performance. Precision-cut finish of the outer diameter prevents balance issues, while the patented vane/rib design reduces rotor noise. The E-Shield coating prevents corrosion, and the increased surface area improves heat dissipation for more effective and safer stopping power. Wagner Vented Front Brake Rotor are field-tested for reliability and are ready to install right out of the box.
    A Federal-Mogul Corporation brand, Wagner Brake is a leader in the automotive industry, known for its innovative "Global Friction" OE & Aftermarket products. Their premium brake parts exceed original equipment standards in fit, form, and dependability, consistently setting new industry standards with their cutting-edge braking technologies.
  • Vehicle Fitment

    Year Make Model Trim Engine
    2007 Ford E-150 EconolineAll TrimsAll Engines
    2003-2007 Ford E-250All TrimsAll Engines
    1995-2002 Ford E-250 EconolineAll TrimsAll Engines
    2003-2005 Ford E-350 Club WagonAll TrimsAll Engines
    1995-1998 Ford E-350 EconolineAll TrimsAll Engines
    1995-2002 Ford E-350 Econoline Club WagonAll TrimsAll Engines
    1999-2007 Ford E-350 Super DutyAll TrimsAll Engines
