Vehicle Specific
Check if it fits by entering your vehicle infoBrand | VAICO |
Part Number | V10-2595 |

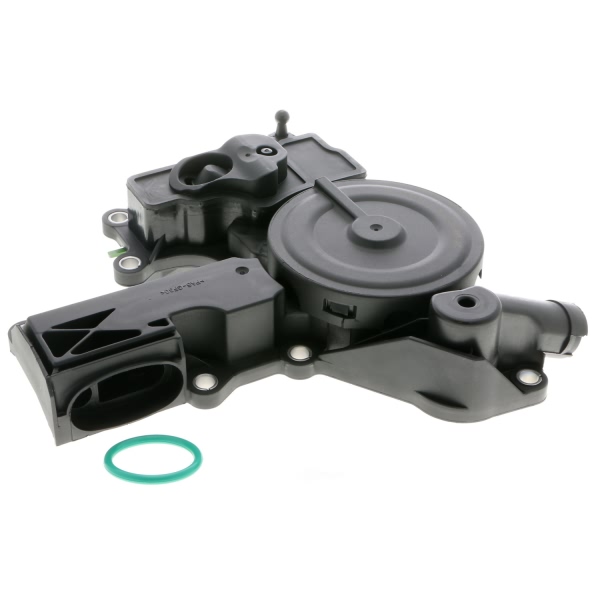

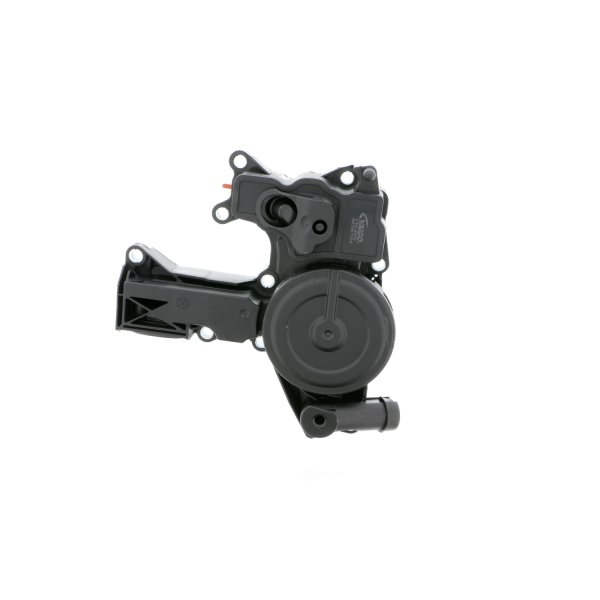

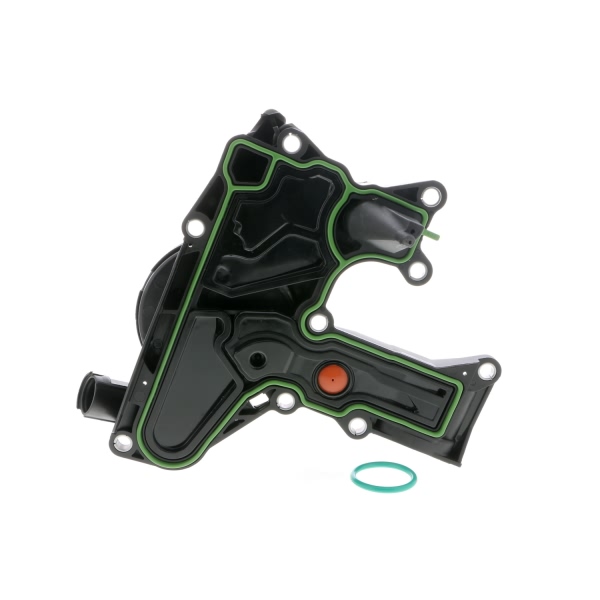

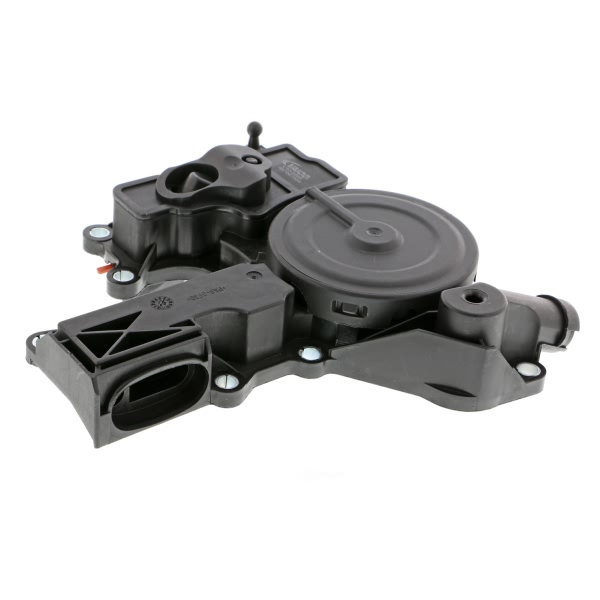

Part Description | Crankcase Breather Oil Trap |
Fitting Position | Cylinder Head |
for engine number | CBFA, CCTA |
for OE number | 06A 103 495 AC |
Height [mm] | 90 |
Housing Material | Polyamid 6.6 |
Length [mm] | 215 |
UPC | 884109109549 |
OE Part Number | 6H 103 495 AC, 06H 103 495 AH, 06H 103 495 AC, 6H 103 495 A, 06H 103 495 E, 6H 103 495 E, 06H 103 495 A |
Operating Mode | Pressure Controlled |
Packaging height [cm] | 18,2 |
Packaging width [cm] | 16,2 |
Part number of recommended accessories | V10-3881 |
Recommended replace interval [km] | 60000 |
Recommended replace interval [years] | 3 |
Seal Material | FPM (fluoride rubber)/ACM (polyacrylate rubber) |
Supplementary Article/Supplementary Info | with seal |
Valve type | Breather Valve |
Weight [kg] | 0,5541 |
Width [mm] | 200 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2013 Audi A3 | Base | 4 Cyl 2.0L |
2009 Audi A3 Quattro | Base | 4 Cyl 2.0L |
2010-2013 Audi A3 Quattro | All Trims | 4 Cyl 2.0L |
2009-2011 Audi A4 | Base | 4 Cyl 2.0L |
2009-2011 Audi A4 Quattro | Avant | 4 Cyl 2.0L |
2009-2011 Audi A4 Quattro | Base | 4 Cyl 2.0L |
2010-2011 Audi A5 | Cabriolet | 4 Cyl 2.0L |
2010-2011 Audi A5 Quattro | Base | 4 Cyl 2.0L |
2010-2011 Audi A5 Quattro | Cabriolet | 4 Cyl 2.0L |
2012 Audi Q5 | Premium | 4 Cyl 2.0L |
