Vehicle Specific
Check if it fits by entering your vehicle infoBrand | StrongArm |
Part Number | 6901 |

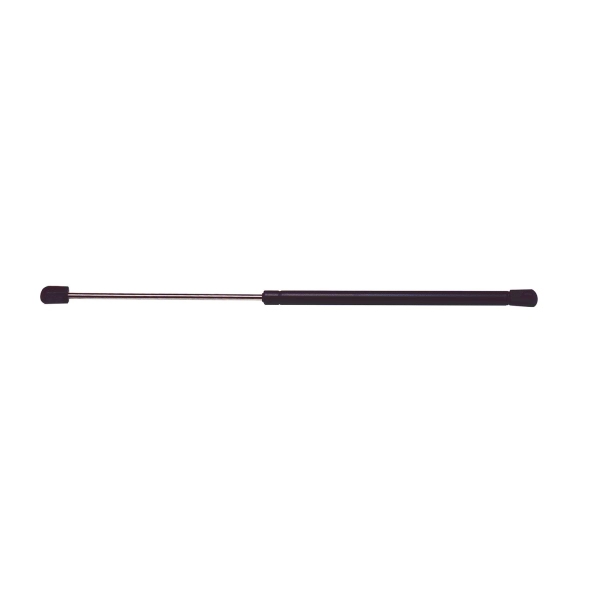

Part Description | Rear Access Door Lift Support |
Body | 15.00 |
BODY CONNECTION | ball socket (nylon) 10mm |
Brackets | No |
Compressed Length | 14.34 |
Extended Length | 20.59 |
Force | 26.00 |
Hardware Kit | No |
High Performance Item | N |
Internal Springs | No |
Is Application Specific | Y |
Material | Heavy gauge steel pressure tube provides long life or Rubber o-ring piston seal for controlled lift or Teflon backup ring gives enhanced performance |
Shaft | 6.00 |
SHAFT CONNECTION | ball socket (nylon) 10mm |
Stroke | 6.25 |
UPC | 845998011009 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2014 Chevrolet Express 1500 | All Trims | All Engines |
2003-2018 Chevrolet Express 2500 | All Trims | All Engines |
2003-2018 Chevrolet Express 3500 | All Trims | All Engines |
2003-2014 GMC Savana 1500 | All Trims | All Engines |
2003-2018 GMC Savana 2500 | All Trims | All Engines |
2003-2018 GMC Savana 3500 | All Trims | All Engines |
