Check if it fits by entering your vehicle infoBrand | SKF |
Part Number | BR930777 |

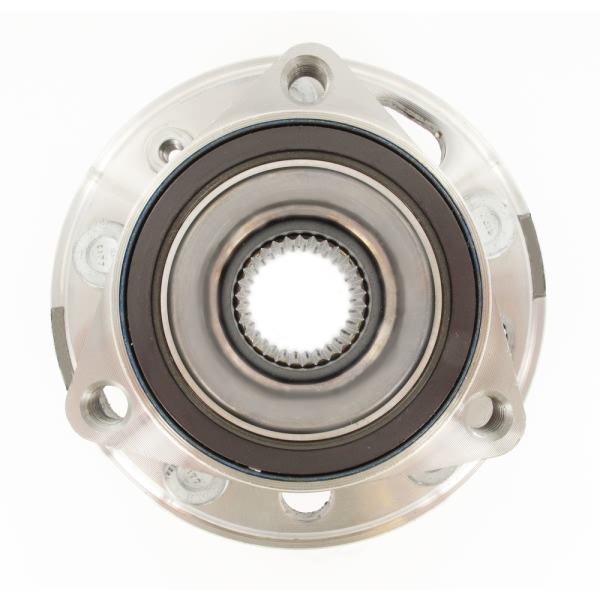

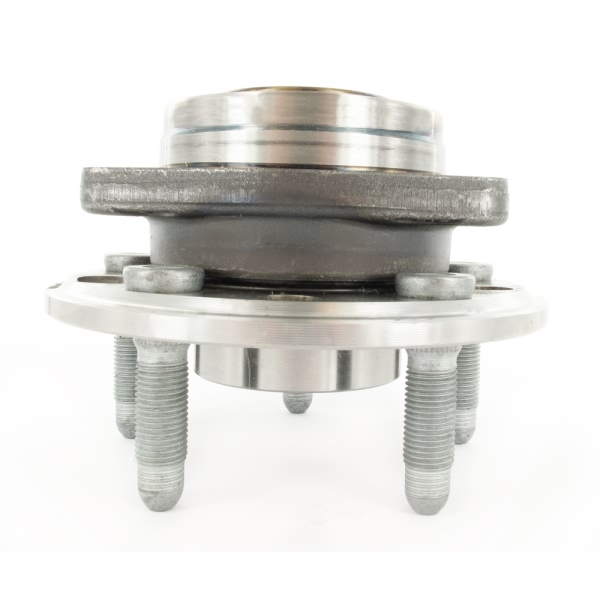

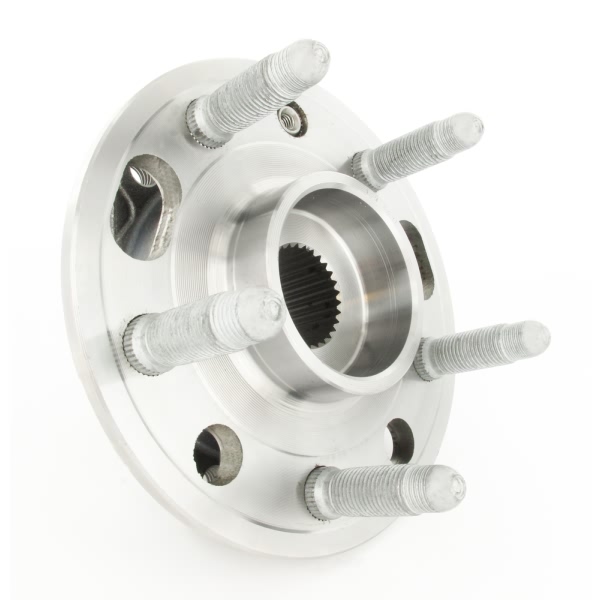

Part Description | Front Passenger Side Wheel Bearing And Hub Assembly |
Bolt Circle Diameter A | 4.7244" |
Bolt Circle Diameter B | 4.5669" |
Bolt Hole Size | 0.472 |
Bolt Size | M14X2.5 |
Flange Diameter | 6.1811" |
Flange Offset | 1.6559" |
Inner Diameter | 1.3285" |
Number of Bolts | 5 |
Number of Holes | 3 |
Number of Splines | 30 |
Sensor Ring | Yes |
UPC | 085311475815 |
Wheel Pilot Diameter | 2.6311" |
Year Make Model | Trim | Engine |
---|---|---|
2010-2014 Buick LaCrosse | All Trims | 6 Cyl 3.6L |
2010-2016 Buick LaCrosse | All Trims | All Engines |
2011-2017 Buick Regal | All Trims | All Engines |
2013-2017 Cadillac XTS | All Trims | All Engines |
2010-2017 Chevrolet Equinox | All Trims | All Engines |
2014-2017 Chevrolet Impala | All Trims | All Engines |
2013-2015 Chevrolet Malibu | All Trims | All Engines |
2016 Chevrolet Malibu Limited | All Trims | All Engines |
2010-2017 GMC Terrain | All Trims | All Engines |
2010-2011 Saab 9-5 | All Trims | All Engines |
