Check if it fits by entering your vehicle infoBrand | Sealed Power |
Part Number | W470AP |

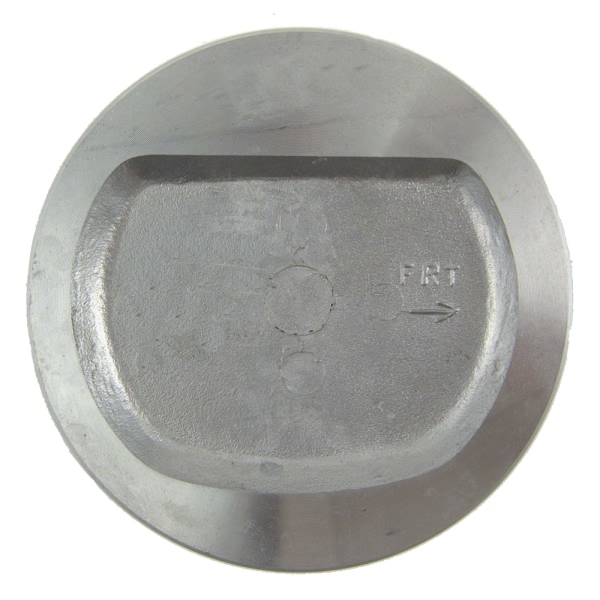

Part Description | Piston |
Bore | 95.2500 mm |
Compression Distance | 1.633" |
Head Illustration | 12 |
Material | Cast |
Minimum Clearance | 0.001 @ 2.640 from top of head |
Pin Diameter | 23.655 mm |
Pin Offset | 0.06" |
Ring 1 Qty | 2 |
Ring 1 Width | 5/64" |
Ring 2 Qty | 1 |
Ring 2 Width | 3/16" |
Size | Standard |
UPC | 614046895348 |
Year Make Model | Trim | Engine |
---|---|---|
1979-1980 American Motors AMX | All Trims | 6 Cyl 4.2L |
1979-1983 American Motors Concord | All Trims | 6 Cyl 4.2L |
1980-1988 American Motors Eagle | All Trims | 6 Cyl 4.2L |
1979-1980 American Motors Pacer | All Trims | 6 Cyl 4.2L |
1979-1983 American Motors Spirit | All Trims | 6 Cyl 4.2L |
1979-1983 Jeep CJ5 | All Trims | 6 Cyl 4.2L |
1979-1986 Jeep CJ7 | All Trims | 6 Cyl 4.2L |
1979-1983 Jeep Cherokee | All Trims | 6 Cyl 4.2L |
1979-1983 Jeep DJ5 | All Trims | 6 Cyl 4.2L |
1984-1986 Jeep Grand Wagoneer | All Trims | 6 Cyl 4.2L |
