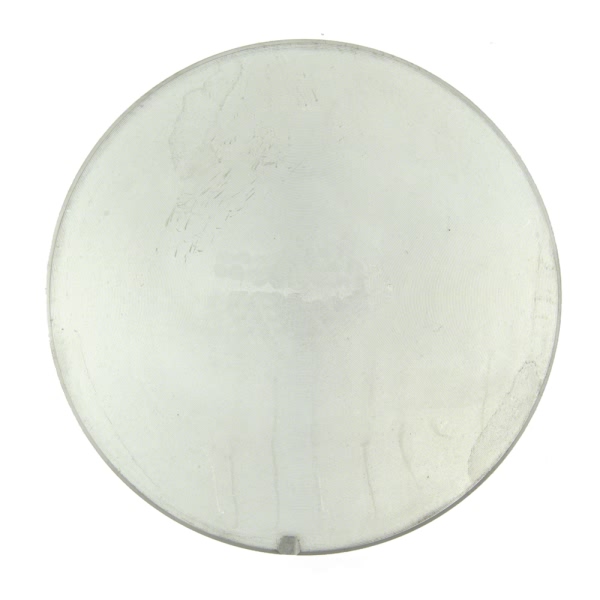

Sealed Power® Flat Top Piston 433NP

Sealed Power Flat Top Piston 433NP

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandSealed Power
    Part Number433NP
    Part DescriptionFlat Top Piston
    Bore3.6610
    Compression Distance1.511
    Head Illustration23
    Head TypeFlat Head - 8.0:1 C.R.
    Minimum Clearance0.001 @ 2.470 from top of head
    Note 1Standard Size
    Part MaterialCast
    Pin Diameter23.995
    Pin Offset0.03
    Ring 1 Qty1
    Ring 1 Width2.00mm
    Ring 2 Qty1
    Ring 2 Width2.50mm
    Ring 3 Qty1
    Ring 3 Width4.00mm
    Standard SizeStandard
    UPC724956352432
    Warning: California’s Proposition 65
  • Features

    Sealed Power Engine Piston are featured as follows:
    • Cylinder sealing is improved for minimum blow-by.
    • It maintains standard ring gaps in the top groove.
    • Piston coated with DUROSHIELD on the skirt.
    • Engine life is extended by moly-graphite coating.
    • Friction reduction leads to higher fuel economy.
    • Protects against damage from inadequate lubrication during start-up.
    • Creating certified ISO & QS, manufacturing guarantees high performance and long product life that engine rebuilders cherish for good reasons.
    • Up-tilt ring grooves improve piston-to-ring sealing & provide great blow-by control.
    • A full range of internal replacement components designed specifically for application are included as part of Sealed Power engine products.
    The Sealed Power Engine Piston 433NP is an engine component that is made with quality in mind to decrease the amount of blow-by through improved cylinder sealing and keep the top groove ring gaps within standard. With a Duroshield coated skirt, it has a moly-graphite coating which extends its life span and reduces friction thus enhancing fuel economy. The piston has been developed to prevent damage from inadequate lubrication on start-up. It guarantees performance and longer life for engine rebuilds since it is manufactured under ISO & QS certified standards. Casted using FM413 Eutectic aluminum containing 12% silicon, ensuring strength and durability. Besides, it also provides enhanced sealability in piston-to-rings due to ring grooves tilting up and better blow-by control. This product is included in Sealed Power comprehensive range of application-engineered internal replacement components for engines.
    The application-engineered internal engine replacement components are the main characteristic of Sealed Power, an automotive industry brand that is highly distinguished. Their products include pistons, piston rings, engine bearings, camshafts, oil pumps, timing components and valvetrain products. The brand's determination to keep creating new products ensures they offer top quality items for their customers.
  • Vehicle Fitment

    Year Make Model Trim Engine
    1986 Ford AerostarAll Trims6 Cyl 2.8L
    1984-1985 Ford Bronco IIAll Trims6 Cyl 2.8L
    1979 Ford MustangAll Trims6 Cyl 2.8L
    1974-1978 Ford Mustang IIAll Trims6 Cyl 2.8L
    1975-1979 Ford PintoAll Trims6 Cyl 2.8L
    1983-1985 Ford RangerAll Trims6 Cyl 2.8L
    1975-1979 Mercury BobcatAll Trims6 Cyl 2.8L
    1974-1977 Mercury CapriAll Trims6 Cyl 2.8L
    1979 Mercury CapriAll Trims6 Cyl 2.8L
