Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Sealed Power |
Part Number | H893CP |

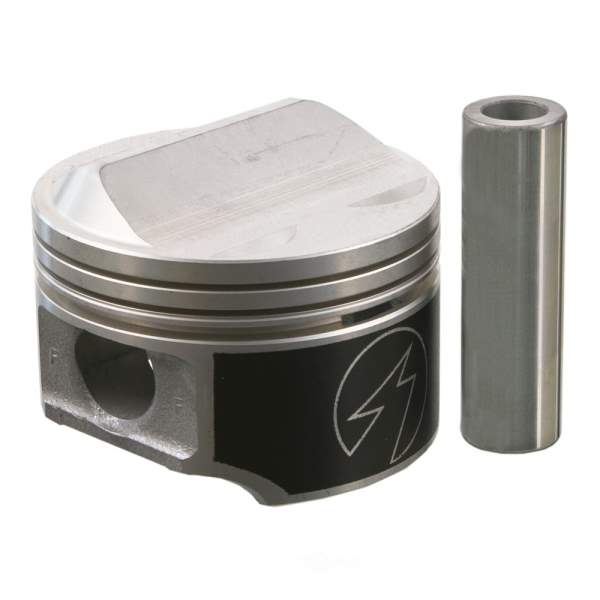

Part Description | Engine Piston |
Bore | 87.5000 |
Bore (Inch) | 3.4449 |
Compression Distance | 1.225 |

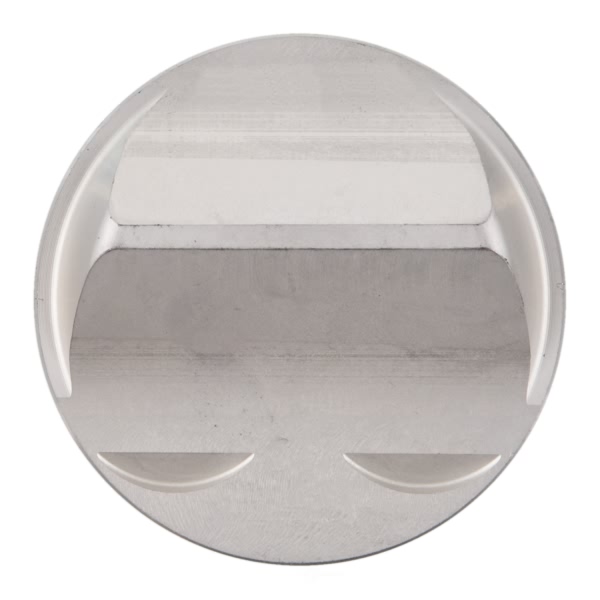

Head Type | Domed Head .420 high |
Minimum Clearance | See Piston Fitting Information on carton label |
Note 1 | Standard Size |
Part Material | Hypereutectic |
Pin Diameter | 24.544 |
Pin Diameter (Inch) | 0.8663 |
Pin Offset | 0.762 |
Pin Offset (Inch) | 0.03 |
Ring 1 Qty | 1 |
Ring 1 Width | 1.50mm |
Ring 2 Qty | 1 |
Ring 2 Width | 1.50mm |
Ring 3 Qty | 1 |
Ring 3 Width | 3.00mm |
Standard Size | Standard |
UPC | 614046785564 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2007 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L |
2001-2005 Chrysler Sebring | All Trims | 4 Cyl 2.4L |
2001-2003 Chrysler Voyager | All Trims | 4 Cyl 2.4L |
2001-2007 Dodge Caravan | All Trims | 4 Cyl 2.4L |
2001-2005 Dodge Stratus | All Trims | 4 Cyl 2.4L |
