Sealed Power® Engine Piston H667P

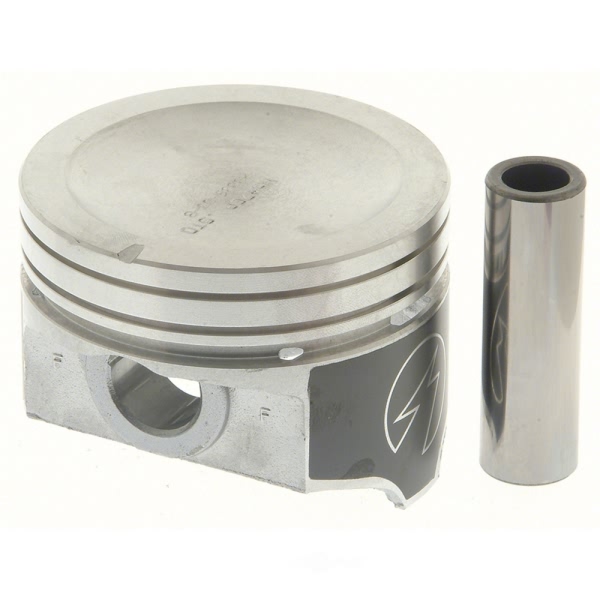

Sealed Power Engine Piston H667P

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandSealed Power
    Part NumberH667P
    Part DescriptionEngine Piston
    Bore100.4000
    Bore (Inch)3.9527
    Compression Distance1.452
    Head Illustration28

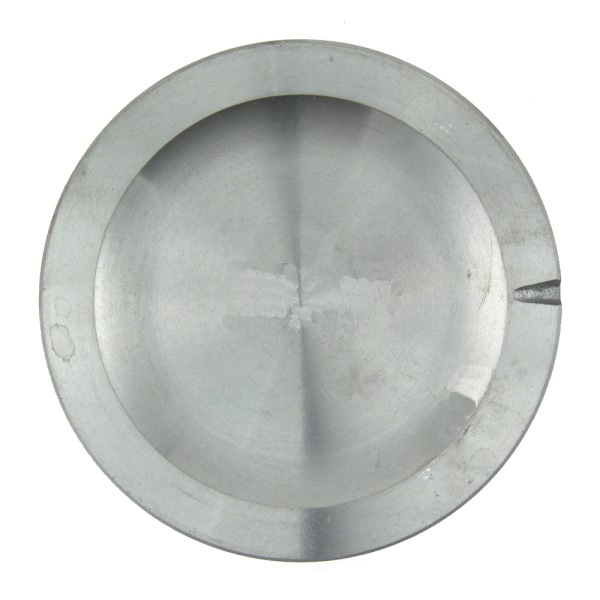

    Head TypeRecessed Head .330 deep x 3.160 dia.
    Minimum Clearance0.0007 @ 2.160 from top of head
    Note 1Standard Size
    Part MaterialHypereutectic
    Pin Diameter23.995
    Pin Diameter (Inch)0.9447
    Pin Offset1.016
    Pin Offset (Inch)0.04
    Ring 1 Qty1
    Ring 1 Width1.60mm
    Ring 2 Qty1
    Ring 2 Width1.75mm
    Ring 3 Qty1
    Ring 3 Width3.50mm
    Standard SizeStandard
    UPC614046229426
    Weight W Pin Gram00640.+/- 00.
    Warning: California’s Proposition 65
  • Features

    Sealed Power Engine Piston are featured as follows:
    • Cylinder sealing is improved for minimum blow-by.
    • It maintains standard ring gaps in the top groove.
    • Piston coated with DUROSHIELD on the skirt.
    • Engine life is extended by moly-graphite coating.
    • Friction reduction leads to higher fuel economy.
    • Protects against damage from inadequate lubrication during start-up.
    • Creating certified ISO & QS, manufacturing guarantees high performance and long product life that engine rebuilders cherish for good reasons.
    • Up-tilt ring grooves improve piston-to-ring sealing & provide great blow-by control.
    • A full range of internal replacement components designed specifically for application are included as part of Sealed Power engine products.
    The Sealed Power Engine Piston H667P is an engine component that is made with quality in mind to decrease the amount of blow-by through improved cylinder sealing and keep the top groove ring gaps within standard. With a Duroshield coated skirt, it has a moly-graphite coating which extends its life span and reduces friction thus enhancing fuel economy. The piston has been developed to prevent damage from inadequate lubrication on start-up. It guarantees performance and longer life for engine rebuilds since it is manufactured under ISO & QS certified standards. Casted using FM413 Eutectic aluminum containing 12% silicon, ensuring strength and durability. Besides, it also provides enhanced sealability in piston-to-rings due to ring grooves tilting up and better blow-by control. This product is included in Sealed Power comprehensive range of application-engineered internal replacement components for engines.
    The application-engineered internal engine replacement components are the main characteristic of Sealed Power, an automotive industry brand that is highly distinguished. Their products include pistons, piston rings, engine bearings, camshafts, oil pumps, timing components and valvetrain products. The brand's determination to keep creating new products ensures they offer top quality items for their customers.
  • Vehicle Fitment

    Year Make Model Trim Engine
    1995-1997 Ford AerostarAll Trims6 Cyl 4.0L
    1995-1997 Ford ExplorerAll Trims6 Cyl 4.0L
    1995-1997 Ford RangerAll Trims6 Cyl 4.0L
    1995-1997 Mazda B4000All Trims6 Cyl 4.0L
