Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Sealed Power |
Part Number | 611P |

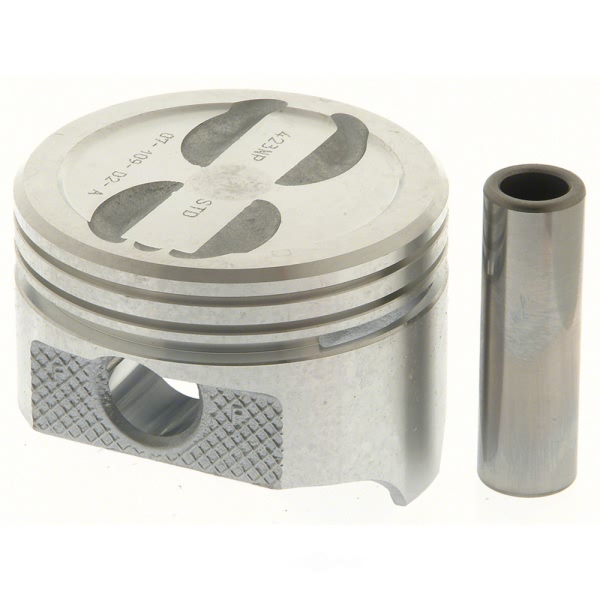

Part Description | Engine Piston |
Bore | 94.9000 |
Bore (Inch) | 3.7360 |
Compression Distance | 1.540 |
Head Illustration | 29 |

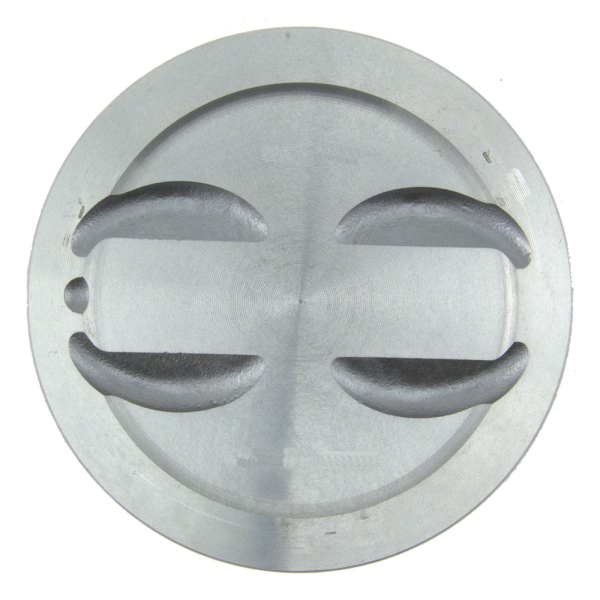

Head Type | Recessed Head .095 deep x 3.130 dia. w/4 valve reliefs |
Minimum Clearance | 0.001 @ 1.840 from top of head |
Note 1 | Standard Size |
Note 2 | For use w/350 crank w/o need to rebalance Eng. |
Part Alert | For use w/350 crank w/o need to rebalance Eng. |
Part Material | Cast |
Pin Diameter | 23.559 |
Pin Diameter (Inch) | 0.9275 |
Pin Offset | 1.524 |
Pin Offset (Inch) | 0.06 |
Ring 1 Qty | 2 |
Ring 1 Width | 5/64 |
Ring 2 Qty | 1 |
Ring 2 Width | 3/16 |
Standard Size | Standard |
UPC | 724956364992 |
Year Make Model | Trim | Engine |
---|---|---|
1977-1981 Buick Century | All Trims | 8 Cyl 5.0L |
1978 Buick LeSabre | All Trims | 8 Cyl 5.0L |
1977-1980 Buick Regal | All Trims | 8 Cyl 5.0L |
1982-1987 Buick Regal | All Trims | 8 Cyl 5.0L |
1977-1979 Buick Skylark | All Trims | 8 Cyl 5.0L |
1981 Chevrolet Bel Air | All Trims | 8 Cyl 5.0L |
1987 Chevrolet Blazer | All Trims | 8 Cyl 5.0L |
1977-1986 Chevrolet C10 | All Trims | 8 Cyl 5.0L |
1977-1979 Chevrolet C10 Suburban | All Trims | 8 Cyl 5.0L |
1981-1986 Chevrolet C10 Suburban | All Trims | 8 Cyl 5.0L |
