Check if it fits by entering your vehicle infoBrand | Sealed Power |
Part Number | 405P |

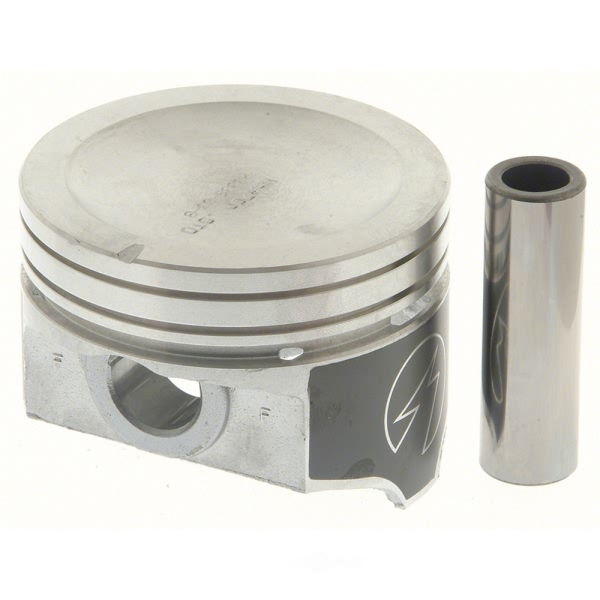

Part Description | Engine Piston |
Bore | 101.6000 |
Bore (Inch) | 4.0000 |
Compression Distance | 1.576 |
Head Illustration | 28 |

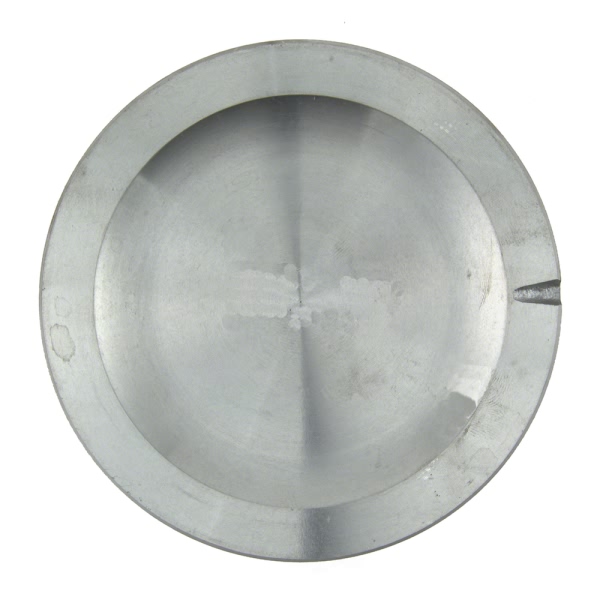

Head Type | Recessed Head .070 deep x 3.140 dia. - 8.0:1 C.R. |
Minimum Clearance | 0.001 @ 2.320 from top of head |
Note 1 | Standard Size |
Part Material | Cast |
Pin Diameter | 24.999 |
Pin Diameter (Inch) | 0.9842 |
Pin Offset | 1.524 |
Pin Offset (Inch) | 0.06 |
Ring 1 Qty | 2 |
Ring 1 Width | 5/64 |
Ring 2 Qty | 1 |
Ring 2 Width | 3/16 |
Standard Size | Standard |
UPC | 724956350292 |
Year Make Model | Trim | Engine |
---|---|---|
1975-1980 Chrysler Cordoba | All Trims | 8 Cyl 5.9L |
1978-1979 Chrysler LeBaron | All Trims | 8 Cyl 5.9L |
1977-1980 Chrysler New Yorker | All Trims | 8 Cyl 5.9L |
1971-1980 Chrysler Newport | All Trims | 8 Cyl 5.9L |
1978-1979 Chrysler Town & Country | All Trims | 8 Cyl 5.9L |
1976-1980 Dodge Aspen | All Trims | 8 Cyl 5.9L |
1976-1978 Dodge B100 | All Trims | 8 Cyl 5.9L |
1972-1974 Dodge B100 Van | All Trims | 8 Cyl 5.9L |
1975-1980 Dodge B200 | All Trims | 8 Cyl 5.9L |
1972-1974 Dodge B200 Van | All Trims | 8 Cyl 5.9L |
