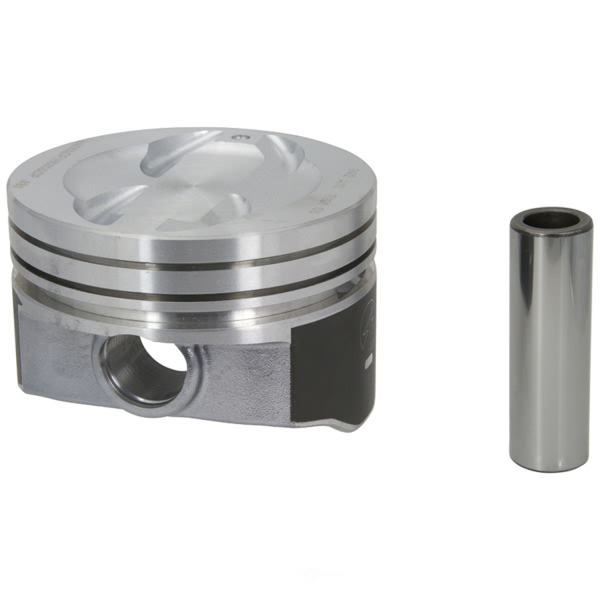

Sealed Power® Duroshield Cast Piston WH699DCP

Sealed Power Duroshield Cast Piston WH699DCP
$30.99
In Stock. Ships in 1-3 Business Days

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandSealed Power
    Part NumberWH699DCP
    Part DescriptionDuroshield Cast Piston
    Head Illustration29
    Head TypeRecessed Head 0.098" Deep X 2.771 Dia. with 4 Valve Reliefs; Duroshield™ Skirt Coated Piston
    Pin TypeP or F
    Ring 1 Qty2
    Ring 1 Width1.50mm
    Ring 2 Qty1
    Ring 2 Width3.00mm
    SizeStandard
    UPC019826510358
    Warning: California’s Proposition 65
  • Features

    Sealed Power Engine Piston are featured as follows:
    • Cylinder sealing is improved for minimum blow-by.
    • It maintains standard ring gaps in the top groove.
    • Piston coated with DUROSHIELD on the skirt.
    • Engine life is extended by moly-graphite coating.
    • Friction reduction leads to higher fuel economy.
    • Protects against damage from inadequate lubrication during start-up.
    • Creating certified ISO & QS, manufacturing guarantees high performance and long product life that engine rebuilders cherish for good reasons.
    • Up-tilt ring grooves improve piston-to-ring sealing & provide great blow-by control.
    • A full range of internal replacement components designed specifically for application are included as part of Sealed Power engine products.
    The Sealed Power Engine Piston WH699DCP is an engine component that is made with quality in mind to decrease the amount of blow-by through improved cylinder sealing and keep the top groove ring gaps within standard. With a Duroshield coated skirt, it has a moly-graphite coating which extends its life span and reduces friction thus enhancing fuel economy. The piston has been developed to prevent damage from inadequate lubrication on start-up. It guarantees performance and longer life for engine rebuilds since it is manufactured under ISO & QS certified standards. Casted using FM413 Eutectic aluminum containing 12% silicon, ensuring strength and durability. Besides, it also provides enhanced sealability in piston-to-rings due to ring grooves tilting up and better blow-by control. This product is included in Sealed Power comprehensive range of application-engineered internal replacement components for engines.
    The application-engineered internal engine replacement components are the main characteristic of Sealed Power, an automotive industry brand that is highly distinguished. Their products include pistons, piston rings, engine bearings, camshafts, oil pumps, timing components and valvetrain products. The brand's determination to keep creating new products ensures they offer top quality items for their customers.
  • Vehicle Fitment

    Year Make Model Trim Engine
    1996-2002 Chevrolet AstroAll Trims6 Cyl 4.3L
    1996-2002 Chevrolet BlazerAll Trims6 Cyl 4.3L
    1996-1998 Chevrolet C1500All Trims6 Cyl 4.3L
    1996-2002 Chevrolet Express 1500All Trims6 Cyl 4.3L
    1996-2002 Chevrolet Express 2500All Trims6 Cyl 4.3L
    1996-1998 Chevrolet K1500All Trims6 Cyl 4.3L
    1996-1999 Chevrolet P30All Trims6 Cyl 4.3L
    1996-2002 Chevrolet S10All Trims6 Cyl 4.3L
    1999-2002 Chevrolet Silverado 1500All Trims6 Cyl 4.3L
    1996-1998 GMC C1500All Trims6 Cyl 4.3L
