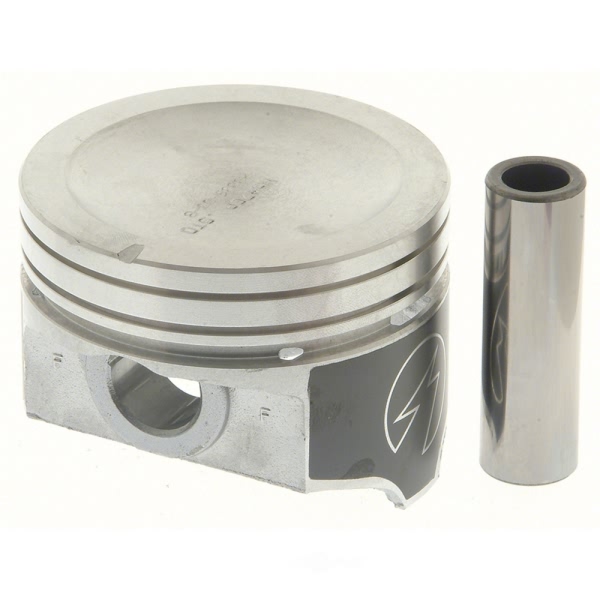

Sealed Power® Duroshield Cast Piston H547CP

Sealed Power Duroshield Cast Piston H547CP
$27.72
In Stock. Ships in 1-3 Business Days

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandSealed Power
    Part NumberH547CP
    Part DescriptionDuroshield Cast Piston
    Bore101.6000
    Compression Distance1.560
    Head Illustration28

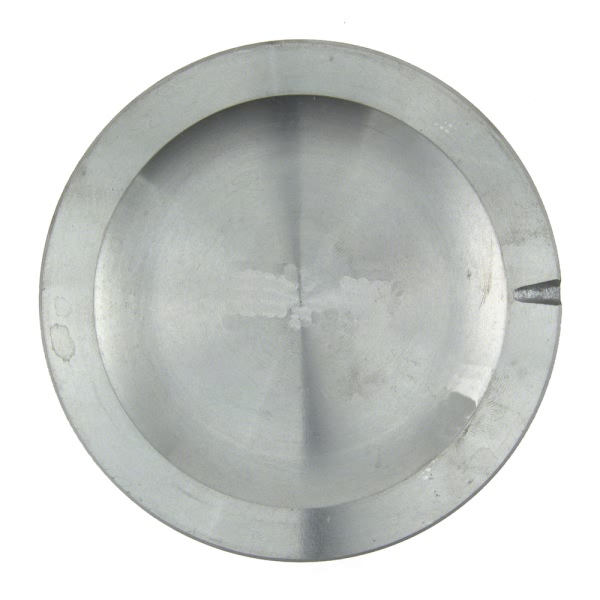

    Head TypeRecessed Head .165 deep x 3.120 dia. w/shallow oil ring groove for low tension oil ring - 9.0:1 C.R.; DUROSHIELD~ skirt coated piston
    Minimum ClearanceSee Piston Fitting Information on carton label
    Part MaterialHypereutectic
    Pin Diameter23.559
    Pin Offset0.04"
    Ring 1 Qty1
    Ring 1 Width1/16
    Ring 2 Qty1
    Ring 2 Width5/64
    Ring 3 Qty1
    Ring 3 Width3/16
    UPC614046227613
    Warning: California’s Proposition 65
  • Features

    Sealed Power Engine Piston are featured as follows:
    • Cylinder sealing is improved for minimum blow-by.
    • It maintains standard ring gaps in the top groove.
    • Piston coated with DUROSHIELD on the skirt.
    • Engine life is extended by moly-graphite coating.
    • Friction reduction leads to higher fuel economy.
    • Protects against damage from inadequate lubrication during start-up.
    • Creating certified ISO & QS, manufacturing guarantees high performance and long product life that engine rebuilders cherish for good reasons.
    • Up-tilt ring grooves improve piston-to-ring sealing & provide great blow-by control.
    • A full range of internal replacement components designed specifically for application are included as part of Sealed Power engine products.
    The Sealed Power Engine Piston H547CP is an engine component that is made with quality in mind to decrease the amount of blow-by through improved cylinder sealing and keep the top groove ring gaps within standard. With a Duroshield coated skirt, it has a moly-graphite coating which extends its life span and reduces friction thus enhancing fuel economy. The piston has been developed to prevent damage from inadequate lubrication on start-up. It guarantees performance and longer life for engine rebuilds since it is manufactured under ISO & QS certified standards. Casted using FM413 Eutectic aluminum containing 12% silicon, ensuring strength and durability. Besides, it also provides enhanced sealability in piston-to-rings due to ring grooves tilting up and better blow-by control. This product is included in Sealed Power comprehensive range of application-engineered internal replacement components for engines.
    The application-engineered internal engine replacement components are the main characteristic of Sealed Power, an automotive industry brand that is highly distinguished. Their products include pistons, piston rings, engine bearings, camshafts, oil pumps, timing components and valvetrain products. The brand's determination to keep creating new products ensures they offer top quality items for their customers.
  • Vehicle Fitment

    Year Make Model Trim Engine
    1980-1982 American Motors ConcordAll Trims4 Cyl 2.5L
    1981-1983 American Motors EagleAll Trims4 Cyl 2.5L
    1980-1982 American Motors SpiritAll Trims4 Cyl 2.5L
    1982-1992 Buick CenturyAll Trims4 Cyl 2.5L
    1980-1985 Buick SkylarkAll Trims4 Cyl 2.5L
    1987-1991 Buick SkylarkAll Trims4 Cyl 2.5L
    1987 Buick SomersetAll Trims4 Cyl 2.5L
    1985-1990 Chevrolet AstroAll Trims4 Cyl 2.5L
    1982-1990 Chevrolet CelebrityAll Trims4 Cyl 2.5L
    1980-1983 Chevrolet CitationAll Trims4 Cyl 2.5L
