Replacement and OEM Parts for Dodge Diplomat Fuel Systems & Components

Select your vehicle for the best product fit

  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Make
Select Model
Select Year
or

Dodge Diplomat Fuel Systems & Components

< Back to View All
Engine & Drivetrain
  • Department
  • Brands
  • Prices

125 products about Dodge Diplomat Fuel Systems & Components found

Show Item:
  • 30
  • 60
  • 90
Sort by:
Recommended
Filter
Sort
View by
  • Gates Pre Release Locking Fuel Tank Cap for Dodge Diplomat - 31734

    Gates® Pre Release Locking Fuel Tank Cap for Dodge Diplomat

    PartNumber: 31734
    Product Specifications
    • Cam Type: Threaded
    • Cap Depth: 2.38"
    • Locking: Yes
    • Neck Diameter: 1.77"
    • Shell Diameter: 2.75"
    • Type: Pre-Release Locking Fuel Cap
    • UPC: 072053416091
    • Venting: Emission Control
    • Part Description: Dodge Diplomat Pre Release Locking Fuel Tank Cap
    More Info
    $19.72

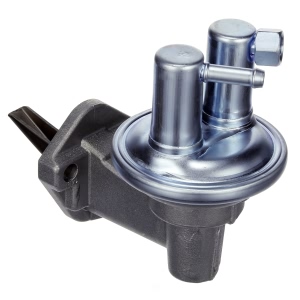

  • Delphi Mechanical Fuel Pump for Dodge Diplomat - MF0124

    Delphi® Mechanical Fuel Pump for Dodge Diplomat

    PartNumber: MF0124
    Product Specifications
    • Flow Rating: 30 gph
    • Fuel Type: Gas
    • Gasket or Seal Included: Yes
    • Inlet Outside Diameter: 0.313''
    • Inlet Type: Hose Bead
    • Item Grade: Standard Replacement
    • Outlet Fitting Thread Size: 1/2'' - 20 UNF
    • Outlet Quantity: 1
    • Outlet Type: Threaded
    • System Pressure: 4 psi
    • UPC: 689604234594
    • Part Description: Dodge Diplomat Mechanical Fuel Pump
    More Info
    $22.79
  • WIX Complete In Line Fuel Filter for Dodge Diplomat - 33095

    WIX® Complete In Line Fuel Filter for Dodge Diplomat

    PartNumber: 33095
    Product Specifications
    • Class: A
    • Duty Type: LD
    • Height: 3.49''
    • Inlet: 5/16''
    • Inner Diameter Top: Closed
    • MediaType: Cellulose
    • Micron: 11.00 Micron
    • Outer Diameter Top: 1.48''
    • Outlet: 5/16''
    • Style: Fuel (Complete In-Line) Filter
    • UPC: 765809330955
    • Part Description: Dodge Diplomat Complete In Line Fuel Filter
    More Info
    $8.38
  • Spectra Premium Fuel Tank for Dodge Diplomat - CR1A

    Spectra Premium® Fuel Tank for Dodge Diplomat

    PartNumber: CR1A
    Product Specifications
    • Kit: LO05 (Included)
    • Liter: 75.0
    • Size: 35-3/8 x 29-1/2 x 7
    • Strap Set: ST02 (Not Included)
    • UPC: 671607900088
    • US Gallon: 20.0
    • Part Description: Dodge Diplomat Fuel Tank
    More Info
    $117.52
  • Uremco Remanufacted Carburetor for Dodge Diplomat - 5-5209

    Uremco® Remanufacted Carburetor for Dodge Diplomat

    PartNumber: 5-5209
    Product Specifications
    • Part Description: Dodge Diplomat Remanufacted Carburetor
    $430.94
  • Walker Products Carburetor Repair Kit for Dodge Diplomat - 15711C

    Walker Products® Carburetor Repair Kit for Dodge Diplomat

    PartNumber: 15711C
    Product Specifications
    • UPC: 724620012068
    • Part Description: Dodge Diplomat Carburetor Repair Kit
    $44.78
  • Gates Locking Fuel Tank Cap for Dodge Diplomat - 31778

    Gates® Locking Fuel Tank Cap for Dodge Diplomat

    PartNumber: 31778
    Product Specifications
    • Cam Type: Threaded
    • Cap Depth: 2.61"
    • Locking: Yes
    • Neck Diameter: 1.77"
    • Shell Diameter: 2.91"
    • Type: Regular Fuel Cap
    • UPC: 072053021455
    • Venting: Emission Control
    • Part Description: Dodge Diplomat Locking Fuel Tank Cap
    More Info
    $14.52
  • Delphi Mechanical Fuel Pump for Dodge Diplomat - MF0017

    Delphi® Mechanical Fuel Pump for Dodge Diplomat

    PartNumber: MF0017
    Product Specifications
    • Flow Rating: 25 gph
    • Fuel Type: Gas
    • Gasket or Seal Included: Yes
    • Inlet Outside Diameter: 0.313''
    • Inlet Type: Hose Bead
    • Item Grade: Standard Replacement
    • Outlet Fitting Thread Size: 1/2'' - 20 UNF
    • Outlet Quantity: 1
    • Outlet Type: Threaded
    • System Pressure: 5 psi
    • UPC: 689604212394
    • Part Description: Dodge Diplomat Mechanical Fuel Pump
    More Info
    $20.32
  • WIX Complete In Line Fuel Filter for Dodge Diplomat - 33032

    WIX® Complete In Line Fuel Filter for Dodge Diplomat

    PartNumber: 33032
    Product Specifications
    • BurstPressure: 60 PSI
    • Class: A
    • Duty Type: LD
    • Ends: Metal
    • Height: 3.862''
    • Inlet: 5/16''
    • Inner Diameter Top: Closed
    • MediaType: Cellulose
    • Micron: 20.00 Micron
    • Outer Diameter Top: 1.936''
    • Outlet: 5/16''
    • Style: Fuel (Complete In-Line) Filter
    • UPC: 765809330320
    • Part Description: Dodge Diplomat Complete In Line Fuel Filter
    More Info
    $6.28
  • Spectra Premium Fuel Tank for Dodge Diplomat - CR1B

    Spectra Premium® Fuel Tank for Dodge Diplomat

    PartNumber: CR1B
    Product Specifications
    • Kit: LO05 (Included)
    • Liter: 75.0
    • Size: 35-3/8 x 29-1/2 x 7
    • Strap Set: ST02 (Not Included)
    • UPC: 671607900095
    • US Gallon: 20.0
    • Part Description: Dodge Diplomat Fuel Tank
    More Info
    $113.00
  • Walker Products Carburetor Repair Kit for Dodge Diplomat - 151068

    Walker Products® Carburetor Repair Kit for Dodge Diplomat

    PartNumber: 151068
    Product Specifications
    • UPC: 724620002489
    • Part Description: Dodge Diplomat Carburetor Repair Kit
    $37.88
  • Gates Replacement Non Locking Fuel Tank Cap for Dodge Diplomat - 31748

    Gates® Replacement Non Locking Fuel Tank Cap for Dodge Diplomat

    PartNumber: 31748
    Product Specifications
    • Cam Type: Threaded
    • Cap Depth: 2.05"
    • Locking: No
    • Neck Diameter: 1.77"
    • Shell Diameter: 2.78"
    • Type: OE Equivalent Fuel Cap
    • UPC: 072053021325
    • Venting: Emission Control
    • Part Description: Dodge Diplomat Replacement Non Locking Fuel Tank Cap
    More Info
    $6.50
  • Spectra Premium Fuel Tank Sending Unit for Dodge Diplomat - FG62A

    Spectra Premium® Fuel Tank Sending Unit for Dodge Diplomat

    PartNumber: FG62A
    Product Specifications
    • Inlet: 1/4 Butt Flare
    • Kit: LO05
    • Outlet: 5/16 Butt Flare
    • Outlet nb.: 1
    • Resistance: 75 - 10 Ohms
    • UPC: 671607141740
    • Part Description: Dodge Diplomat Fuel Tank Sending Unit
    More Info
    $75.87
  • Delphi Mechanical Fuel Pump for Dodge Diplomat - MF0048

    Delphi® Mechanical Fuel Pump for Dodge Diplomat

    PartNumber: MF0048
    Product Specifications
    • Flow Rating: 25 gph
    • Fuel Type: Gas
    • Gasket or Seal Included: Yes
    • Inlet Outside Diameter: 0.313''
    • Inlet Type: Hose Bead
    • Item Grade: Standard Replacement
    • Outlet Fitting Thread Size: 1/2'' - 20 UNF
    • Outlet Quantity: 2
    • Outlet Type: Threaded
    • System Pressure: 6 psi
    • UPC: 689604212707
    • Part Description: Dodge Diplomat Mechanical Fuel Pump
    More Info
    $19.46
  • WIX Complete In Line Fuel Filter for Dodge Diplomat - 33002

    WIX® Complete In Line Fuel Filter for Dodge Diplomat

    PartNumber: 33002
    Product Specifications
    • Class: A
    • Duty Type: LD
    • Height: 3.920''
    • Inlet: 5/16''
    • Inner Diameter Top: Closed
    • MediaType: Cellulose
    • Micron: 20.00 Micron
    • Outer Diameter Top: 1.770''
    • Outlet: 5/16''
    • Style: Fuel (Complete In-Line) Filter
    • UPC: 765809330023
    • Part Description: Dodge Diplomat Complete In Line Fuel Filter
    More Info
    $4.16
  • Walker Products Carburetor Repair Kit for Dodge Diplomat - 15560D

    Walker Products® Carburetor Repair Kit for Dodge Diplomat

    PartNumber: 15560D
    Product Specifications
    • UPC: 724620000355
    • Part Description: Dodge Diplomat Carburetor Repair Kit
    $28.34
  • Spectra Premium Fuel Tank Strap Kit for Dodge Diplomat - ST02

    Spectra Premium® Fuel Tank Strap Kit for Dodge Diplomat

    PartNumber: ST02
    Product Specifications
    • Internet Product Code (IPC): 52F3DB697B3
    • Item has MSDS (SDS): N
    • MFG Brand Name: Spectra Premium
    • MFG Model # (Series): ST02
    • MFG Name: Spectra Premium Industries
    • Package Contents: Two Fuel Tank Straps
    • Strap 1 Length: 39.5
    • Strap 1 Width: 1.25
    • Strap 2 Length: 39.5
    • Strap 2 Width: 1.25
    • Strap Material: Satin Coat Steel
    • Supplier Company Name: Spectra Premium Industries
    • UPC: 671607130010
    • Part Description: Dodge Diplomat Fuel Tank Strap Kit
    More Info
    $25.63
  • Walker Products Carburetor Repair Kit for Dodge Diplomat - 151045A

    Walker Products® Carburetor Repair Kit for Dodge Diplomat

    PartNumber: 151045A
    Product Specifications
    • UPC: 724620029271
    • Part Description: Dodge Diplomat Carburetor Repair Kit
    $24.26
  • Spectra Premium Fuel Tank Lock Ring for Dodge Diplomat - LO05

    Spectra Premium® Fuel Tank Lock Ring for Dodge Diplomat

    PartNumber: LO05
    Product Specifications
    • Inside Diameter: 2-7/8
    • Material: Steel / Polymer
    • Outside Diameter: 3-3/4
    • UPC: 671607110043
    • Part Description: Dodge Diplomat Fuel Tank Lock Ring
    More Info
    $5.04
  • Walker Products Primary Carburetor Float for Dodge Diplomat - 100-104

    Walker Products® Primary Carburetor Float for Dodge Diplomat

    PartNumber: 100-104
    Product Specifications
    • UPC: 724620003103
    • Part Description: Dodge Diplomat Primary Carburetor Float
    $11.19
  • OEM Dodge Diplomat Cap-Fuel Filler Diagram - 82400806
    View Related Parts

    OEM (Genuine) Dodge Diplomat Cap-Fuel Filler

    PartNumber: 82400806
    OEM Dodge Diplomat Cap-Fuel Filler - 82400806
    Product Specifications
    • Other Names: Cap, Filler Cap, Fuel Cap
    • Item Dimensions: 4.1 x 4.3 x 3.2 inches
    • Item Weight: 0.80 Pounds
    • Fitment Type: Direct Replacement
    • Part Description: Dodge Diplomat Cap-Fuel Filler
    More Info
    $31.46 MSRP: $39.90
    You Save: $8.44 (22%)
  • OEM Dodge Diplomat Cap-Fuel Filler Diagram - 82400806
    View Related Parts

    OEM (Genuine) Dodge Diplomat Cap-Fuel Filler

    PartNumber: 82400806
    OEM Dodge Diplomat Cap-Fuel Filler - 82400806
    Product Specifications
    • Other Names: Cap, Filler Cap, Fuel Cap
    • Item Dimensions: 4.1 x 4.3 x 3.2 inches
    • Item Weight: 0.80 Pounds
    • Fitment Type: Direct Replacement
    • Part Description: Dodge Diplomat Cap-Fuel Filler
    More Info
    $31.46 MSRP: $39.90
    You Save: $8.44 (22%)
  • Gates Pre Release Non Locking Fuel Tank Cap for Dodge Diplomat - 31615

    Gates® Pre Release Non Locking Fuel Tank Cap for Dodge Diplomat

    PartNumber: 31615
    Product Specifications
    • Cam Type: Threaded
    • Cap Depth: 2.14"
    • Locking: No
    • Neck Diameter: 1.77"
    • Shell Diameter: 2.81"
    • Type: Pre-Release Fuel Cap
    • UPC: 072053107760
    • Venting: Emission Control
    • Part Description: Dodge Diplomat Pre Release Non Locking Fuel Tank Cap
    More Info
    $9.61
  • Uremco Remanufacted Carburetor for Dodge Diplomat - 5-5185

    Uremco® Remanufacted Carburetor for Dodge Diplomat

    PartNumber: 5-5185
    Product Specifications
    • Part Description: Dodge Diplomat Remanufacted Carburetor
    $224.42
  • WIX Complete In Line Fuel Filter for Dodge Diplomat - 33054

    WIX® Complete In Line Fuel Filter for Dodge Diplomat

    PartNumber: 33054
    Product Specifications
    • Class: C
    • Duty Type: LD
    • Height: 3.83''
    • Inlet: 5/16''
    • Inner Diameter Top: Closed
    • MediaType: Cellulose
    • Micron: 11.00 Micron
    • Outer Diameter Top: 1.725''
    • Outlet: 5/16''
    • Style: Fuel (Complete In-Line) Filter
    • UPC: 765809330542
    • Vapor: 1/4
    • Part Description: Dodge Diplomat Complete In Line Fuel Filter
    More Info
    $8.38
  • Uremco Remanufacted Carburetor for Dodge Diplomat - 5-5187

    Uremco® Remanufacted Carburetor for Dodge Diplomat

    PartNumber: 5-5187
    Product Specifications
    • Part Description: Dodge Diplomat Remanufacted Carburetor
    $245.70
  • Uremco Remanufacted Carburetor for Dodge Diplomat - 5-5196

    Uremco® Remanufacted Carburetor for Dodge Diplomat

    PartNumber: 5-5196
    Product Specifications
    • Part Description: Dodge Diplomat Remanufacted Carburetor
    $245.70
  • Uremco Remanufacted Carburetor for Dodge Diplomat - 5-5203

    Uremco® Remanufacted Carburetor for Dodge Diplomat

    PartNumber: 5-5203
    Product Specifications
    • Part Description: Dodge Diplomat Remanufacted Carburetor
    $286.76
  • STANT Yellow Fuel Cap Testing Adapter for Dodge Diplomat - 12404

    STANT® Yellow Fuel Cap Testing Adapter for Dodge Diplomat

    PartNumber: 12404
    Product Specifications
    • Cam Type: Deep Cam
    • Color: Yellow
    • Neck Diameter: 1.38"
    • UPC: 033342062849
    • Part Description: Dodge Diplomat Yellow Fuel Cap Testing Adapter
    More Info
    $12.09
  • Uremco Remanufactured Carburetor for Dodge Diplomat - 5-5205

    Uremco® Remanufactured Carburetor for Dodge Diplomat

    PartNumber: 5-5205
    Product Specifications
    • Ford Kickdown: No
    • Fuel: Gasoline
    • Fuel Inlet: Single
    • New or Remanufactured: Remanufactured
    • Number of Barrels: 1BBL
    • OE Part Number: 8978, 9340, 8718, 9107, 9982, 8832, 80023, 80012, 8720, 8833, 8179, 8680, 8831, 9338, 9106, 8719
    • UPC: 724840003792
    • Part Description: Dodge Diplomat Remanufactured Carburetor
    More Info
    $223.79
1-30 of 125 Results
< Previous
12345
Next >

Browse Dodge Diplomat Fuel Systems & Components by Years

1989 1988 1987 1986 1985 1984
