2013 Mazda 3
Delphi® Fuel Pump Module Assembly for 2013 Mazda 3
PartNumber: FG1558Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 29 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 65.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 410.0
- Resistance Ohms Full: 15.0
- Strainer Included: Yes
- System Pressure: 60 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604279977
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2013 Mazda 3 Fuel Pump Module Assembly
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.3L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
$437.60
Gates® Locking Fuel Tank Cap for 2013 Mazda 3
PartNumber: 31842Product Specifications- Cam Type: Quick-On
- Cap Depth: 2.53"
- Locking: Yes
- Neck Diameter: 1.56"
- Shell Diameter: 2.68"
- Type: Regular Fuel Cap
- UPC: 072053604276
- Venting: Vacuum Only
- Part Description: 2013 Mazda 3 Locking Fuel Tank Cap
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
$15.11
Spectra Premium® Fuel Tank Filler Neck for 2013 Mazda 3
PartNumber: FN1109Product Specifications- Cup Type: Quick-On
- Diameter: 1-1/4
- Fuel Type: Gas
- Length: 28-1/2
- UPC: 671607119442
- Vent 1: 5/16
- Vent Quantity: 1
- Part Description: 2013 Mazda 3 Fuel Tank Filler Neck
Vehicle Fitment- 2013 Mazda 3 | All Trims | All Engines
$163.78
facet® Fuel Temperature Sensor for 2013 Mazda 3
PartNumber: 7.3234Product Specifications- Notes: Terminals: 2; Location-Eng Block
- Part Description: 2013 Mazda 3 Fuel Temperature Sensor
Vehicle Fitment- 2013 Mazda 3 | i | 4 Cyl 2.0L
- 2013 Mazda 3 | Mazdaspeed | 4 Cyl 2.3L
- 2013 Mazda 3 | S | 4 Cyl 2.5L
$12.89
Delphi® Fuel Pump Module Assembly for 2013 Mazda 3
PartNumber: FG1286Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 8
- Flow Rating: 50 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 94.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 400.0
- Resistance Ohms Full: 20.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604232538
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2013 Mazda 3 Fuel Pump Module Assembly
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.5L
$260.60
Delphi® In Tank Fuel Injection Pressure Regulator for 2013 Mazda 3
PartNumber: FP10530Product Specifications- Adjustable: No
- Inlet Port Diameter: 0.63''
- Inlet Quantity: 1
- Inlet Type: Push In
- Material: Metal
- Mounting Type: Clamp
- Outlet Port Diameter: 8.0 mm
- Outlet Quantity: 1
- Outlet Type: Push In
- System Pressure: 46
- UPC: 689604292754
- Part Description: 2013 Mazda 3 In Tank Fuel Injection Pressure Regulator
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.3L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
$29.18
Gates® Replacement Non Locking Fuel Tank Cap for 2013 Mazda 3
PartNumber: 31841Product Specifications- Cam Type: Quick-On
- Cap Depth: 1.9"
- Locking: No
- Neck Diameter: 1.56"
- Shell Diameter: 2.75"
- Type: OE Equivalent Fuel Cap
- UPC: 072053497328
- Venting: Vacuum Only
- Part Description: 2013 Mazda 3 Replacement Non Locking Fuel Tank Cap
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.3L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.5L
$15.40
Autobest® Fuel Pump Module Assembly for 2013 Mazda 3
PartNumber: F6050AProduct Specifications- Notes: Exc. SKYACTIV;Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir and Fuel Strainer
- Average Current Draw(A): 6.6
- Average Flow Rating(GPH): 25.1
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Fuel Type: Turbine
- Gasket or Seal Included: No
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.551
- Inlet Type: Strainer
- Installation Warnings: No
- Internal or External: Internal
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Free Flow (GPH): 60
- Maximum Pump Pressure (PSI): 100
- Minimum Free Flow (GPH): 50
- Minimum Pump Pressure (PSI): 80
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 0.311
- Outlet Type: Quick Connect
- Product Height (in): 5.39
- Product Length (in): 9.45
- Product Width (in): 7.44
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 398
- Resistance Ohms Full: 19
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845160508
- Voltage: 12V
- Weight (lbs): 2.23
- Wire Harness Included: No
- Part Description: 2013 Mazda 3 Fuel Pump Module Assembly
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.5L
$124.61
Delphi® In Tank Electric Fuel Pump for 2013 Mazda 3
PartNumber: FE0679Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Average Current Draw: 10
- Average Flow Rating: 30
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Pressure: 123.0
- Outlet Outside Diameter: 0.375
- Outlet Type: Hose Bead
- Package Contents: Electric Fuel Pump, Retainer, Seal, Steel Clip, Instruction Sheet
- Pump Type: Electric
- Strainer Included: No
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Pin
- UPC: 689604264898
- Voltage: 12
- Wiring Harness Included: No
- Part Description: 2013 Mazda 3 In Tank Electric Fuel Pump
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.3L
$122.08
Delphi® In Tank Electric Fuel Pump for 2013 Mazda 3
PartNumber: FE0683Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 25 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Pressure: 123.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Type: Hose Bead
- Pump Type: Electric
- Strainer Included: No
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Pin
- UPC: 689604264904
- Voltage: 12 VDC
- Wiring Harness Included: No
- Part Description: 2013 Mazda 3 In Tank Electric Fuel Pump
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
$308.08
Victor Reinz® Multi Purpose O-Ring for 2013 Mazda 3
PartNumber: 41-73337-00Product Specifications- Complete: Y
- Contains Applications: Y
- Release Wave: 03/29/2019
- UPC: 023913807412
- Part Description: 2013 Mazda 3 Multi Purpose O-Ring
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
STANT® Fuel Tank Cap for 2013 Mazda 3
PartNumber: 10510Product Specifications- Notes: Color Tan w/grey ring
- Cam Type: Quick-On
- Cap Depth: 2.53"
- Neck Diameter: 1.56"
- Shell Diameter: 2.68"
- UPC: 033342044852
- Venting: Vacuum Only
- Part Description: 2013 Mazda 3 Fuel Tank Cap
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.3L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.5L
Airtex® Direct Injection High Pressure Fuel Pump for 2013 Mazda 3
PartNumber: D80037Product Specifications- Notes: Check the OEM Part# stamping on the original OEM part before ordering replacement for Part# PE01-20-3F0B; PE01203F0C; PE01-20-3F0D; PE01-20-3F0E; PE01-20-3F0F
- Connector Gender: Male
- Connector Shape: Rectangle
- Flow Rate: 29
- Gasket or Seal Included: Yes
- Housing Material: Cast / Steel
- Inlet Outside Diameter: 9.7
- Inlet Type: Quick Connect
- Internal or External: External
- Mounting Hardware Included: No
- Muffler Outlet Diameter (in): 13.8
- Outlet Type: Threaded
- Pump Type: Mechanical
- Terminal Type: Spade
- UPC: 889464031948
- Part Description: 2013 Mazda 3 Direct Injection High Pressure Fuel Pump
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
Spectra Premium® Fuel Tank Strap for 2013 Mazda 3
PartNumber: ST379Product Specifications- Internet Product Code (IPC): D0D1C9BB6F2
- Item has MSDS (SDS): N
- MFG Brand Name: Spectra Premium
- MFG Model # (Series): ST379
- MFG Name: Spectra Premium Industries
- Package Contents: Two Fuel Tank Straps
- Strap 1 Length: 38.25
- Strap 1 Width: 1.129
- Strap 2 Length: 39.0
- Strap 2 Width: 1.129
- Strap Material: Satin Coat Steel
- Supplier Company Name: Spectra Premium Industries
- UPC: 671607134278
- Part Description: 2013 Mazda 3 Fuel Tank Strap
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.3L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.5L
STANT® Fuel Tank Cap for 2013 Mazda 3
PartNumber: 10840Product Specifications- Notes: Color Black
- Cam Type: Quick-On
- Cap Depth: 1.9"
- Neck Diameter: 1.56"
- Shell Diameter: 2.75"
- UPC: 033342044609
- Venting: Vacuum Only
- Part Description: 2013 Mazda 3 Fuel Tank Cap
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.3L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.5L

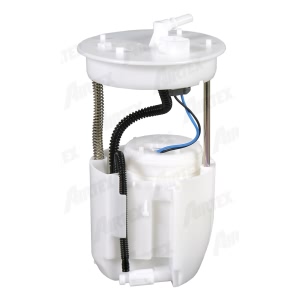

Airtex® Fuel Pump Module Assembly for 2013 Mazda 3
PartNumber: E9049MProduct Specifications- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 60
- Maximum Pressure (psi): 55
- Minimum Free Flow Rate (gph): 50
- Minimum Pressure (psi): 45
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044044406
- Wiring Harness Included: No
- Part Description: 2013 Mazda 3 Fuel Pump Module Assembly
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.5L
STANT® Tan Fuel Cap Testing Adapter for 2013 Mazda 3
PartNumber: 12422Product Specifications- Notes: Tan w/Grey Ring
- Cam Type: Quick-On
- Color: Tan with Gray Ring
- UPC: 033342039629
- Part Description: 2013 Mazda 3 Tan Fuel Cap Testing Adapter
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.3L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.5L
Airtex® Fuel Pump Module Assembly for 2013 Mazda 3
PartNumber: E9065MProduct Specifications- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 65
- Maximum Pressure (psi): 70
- Minimum Free Flow Rate (gph): 55
- Minimum Pressure (psi): 60
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044057758
- Part Description: 2013 Mazda 3 Fuel Pump Module Assembly
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
STANT® Regular Keyed Alike Fuel Cap for 2013 Mazda 3
PartNumber: 17510Product Specifications- Notes: Color Black
- Cap Depth: 2.500''
- Color: Black
- Fuel Cap Venting: Vacuum Only
- Locking: Yes
- Material: Plastic
- Neck Diameter: 1.563''
- Shell Diameter: 2.688''
- Tether Included: No
- UPC: 333420510720
- Part Description: 2013 Mazda 3 Regular Keyed Alike Fuel Cap
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.3L
- 2013 Mazda 3 | All Trims | 4 Cyl 2.5L
Delphi® Direct Injection High Pressure Fuel Pump for 2013 Mazda 3
PartNumber: HM10013Product Specifications- Notes: Japan Built;Stamped PE01-20-3F0F;Check the OEM Stamping Before Ordering
- Drive Shaft Included: No
- Fuel Type: Gas
- Gasket or Seal Included: No
- Housing Color: Silver
- Housing Material: Metal
- In Tank or External: External
- Inlet Fitting Thread Size: M14-1.5
- Inlet Type: Threaded
- Item Grade: Standard Replacement
- Mounting Hardware Included: No
- Outlet Outside Diameter: 0.313
- Outlet Quantity: 2
- Outlet Type: Tube w/Quick Connect
- Package Contents: Direct Injection High Pressure Fuel Pump, Instruction Sheet
- Pump Type: Mechanical
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604265253
- Wiring Harness Included: No
- Part Description: 2013 Mazda 3 Direct Injection High Pressure Fuel Pump
Vehicle Fitment- 2013 Mazda 3 | All Trims | 4 Cyl 2.0L
