2012 Land Rover Range Rover Sport
< Back to View All
Engine & Drivetrain
- Department
- Part Type
- Brands
- Prices
National® Differential Bearing for 2012 Land Rover Range Rover Sport
PartNumber: 32010-XProduct Specifications- Notes: w/Spicer M200 Axle; w/7.9in Ring Gear;w/Spicer M220 Axle; w/8.7in Ring Gear; Non Locking
- Bore (Inch): 1.9685
- Bore (mm): 50.00
- Cone Length (Inch): 0.7874
- Cone Length (mm): 20.00
- Cone Radius (Inch): 0.0591
- Cone Radius (mm): 1.5000
- Cup Length (Inch): 0.6102
- Cup Length (mm): 15.4990
- Cup Radius (Inch): 0.0200
- Cup Radius (mm): 0.5080
- Design: ISO Metric
- Outside Diameter (Inch): 3.1496
- Outside Diameter (mm): 80.00
- Series: 32000
- Standout (Inch): 0.1772
- Standout (mm): 4.5000
- Type: TS
- UPC: 724956092055
- Width (Inch): 0.7874
- Width (mm): 20.00
- Part Description: 2012 Land Rover Range Rover Sport Differential Bearing
Vehicle Fitment- 2012 Land Rover Range Rover Sport | All Trims | All Engines
$31.10
National® Driveshaft Center Support Bearing for 2012 Land Rover Range Rover Sport
PartNumber: 208Product Specifications- Notes: w/Magna Steyr DD295 Transfer Case; 2Spd; Full Time 4WD
- Type: A-1
- Part Description: 2012 Land Rover Range Rover Sport Driveshaft Center Support Bearing
Vehicle Fitment- 2012 Land Rover Range Rover Sport | All Trims | All Engines
$29.19
National® Driveshaft Center Support Bearing for 2012 Land Rover Range Rover Sport
PartNumber: 207Product Specifications- Notes: w/ZF-6HP-28 Trans;w/Magna Steyr DD295 Transfer Case; 2Spd; Full Time 4WD
- Bore (Inch): 1.378
- Bore (mm): 35.00
- Design: Single Row Radial
- Inner Race Bore (Inch): 1.378
- Inner Race Bore (mm): 35.00
- Inner Race Radius (Inch): 0.040
- Inner Race Radius (mm): 1.020
- Inner Race Width (Inch): 0.669
- Inner Race Width (mm): 17.00
- Outer Race Outside Diameter (Inch): 2.835
- Outer Race Outside Diameter (mm): 72.00
- Outer Race Radius (Inch): 0.040
- Outer Race Radius (mm): 1.020
- Outer Race Width (Inch): 0.669
- Outer Race Width (mm): 17.00
- Outside Diameter (Inch): 2.835
- Outside Diameter (mm): 72.00
- Series: 200
- Type: A-1
- Width (Inch): 0.669
- Width (mm): 17.00
- Part Description: 2012 Land Rover Range Rover Sport Driveshaft Center Support Bearing
Vehicle Fitment- 2012 Land Rover Range Rover Sport | All Trims | All Engines
$21.32
National® Differential Bearing with Cup and Cone for 2012 Land Rover Range Rover Sport
PartNumber: A-36Product Specifications- Notes: Taper Bearing Set Incls Cup & Cone; w/Spicer M200 Axle; w/7.9in Ring Gear
- Cone Bore: 1.7812" / 45.242 mm
- Cone Length: 0.7812" / 19.842 mm
- Cone Radius: 0.1400" / 3.5560 mm
- Cup Bore: 3.0625" / 77.788 mm
- Cup Length: 0.6562" / 16.667 mm
- Cup Radius: 0.0310" / 0,787 mm
- Standout: 0.0188" / 0,478 mm
- Taper Bearing Cone: LM603049
- Taper Bearing Cup: LM603012
- Width: 0.8437" / 21.43 mm
- Part Description: 2012 Land Rover Range Rover Sport Differential Bearing with Cup and Cone
Vehicle Fitment- 2012 Land Rover Range Rover Sport | All Trims | All Engines
$17.50
National® Front Driver Side Axle Shaft Bearing for 2012 Land Rover Range Rover Sport
PartNumber: B-228Product Specifications- Notes: w/Spicer M200 Axle; w/7.9in Ring Gear;w/Spicer M220 Axle; w/8.7in Ring Gear
- Type: B
- Part Description: 2012 Land Rover Range Rover Sport Front Driver Side Axle Shaft Bearing
Vehicle Fitment- 2012 Land Rover Range Rover Sport | All Trims | All Engines
$10.91

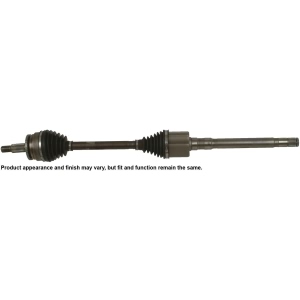

Cardone Reman® Remanufactured CV Axle Assembly for 2012 Land Rover Range Rover Sport
PartNumber: 60-9288Product Specifications- ABS Ring Included: Yes
- ABS Ring Tooth Count: 48
- Axle Nut Locking Type: Stake
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 29
- Length: 39 1/4"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 29
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 38mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M24 x 1.5
- Part Description: 2012 Land Rover Range Rover Sport Remanufactured CV Axle Assembly
Vehicle Fitment- 2012 Land Rover Range Rover Sport | All Trims | All Engines

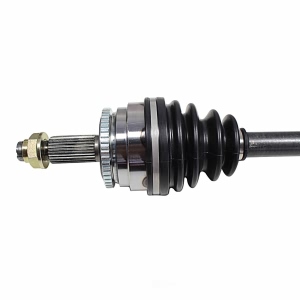

GSP North America® Front Driver Side CV Axle Assembly for 2012 Land Rover Range Rover Sport
PartNumber: NCV83528Product Specifications- ABS Ring Tooth Quantity: 48
- Axle Nut Included: Yes
- Axle Nut Length: 23
- Axle Nut Socket Size: 36
- Axle Nut Thread Size: M24x1.5
- Axle Nut Type: Hex
- Boot Color: Black
- Boot Material: Neoprene
- Compressed Length: 25.08
- Inboard Joint Type: Male
- Inboard Spline Quantity: 29
- Outboard Joint Type: Conventional
- Outboard Spline Quantity: 29
- Prop 65 - Short Label: Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 Yes/No: Yes
- UPC: 883331835288
- Part Description: 2012 Land Rover Range Rover Sport Front Driver Side CV Axle Assembly
Vehicle Fitment- 2012 Land Rover Range Rover Sport | All Trims | All Engines

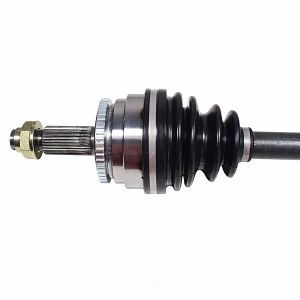

GSP North America® Front Passenger Side CV Axle Assembly for 2012 Land Rover Range Rover Sport
PartNumber: NCV83529Product Specifications- ABS Ring Tooth Quantity: 48
- Axle Nut Included: Yes
- Axle Nut Length: 23
- Axle Nut Socket Size: 36
- Axle Nut Thread Size: M24x1.5
- Axle Nut Type: Hex
- Boot Color: Black
- Boot Material: Neoprene
- Compressed Length: 39.25
- Inboard Joint Type: Male
- Inboard Spline Quantity: 29
- Outboard Joint Type: Conventional
- Outboard Spline Quantity: 29
- Prop 65 - Short Label: Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 Yes/No: Yes
- UPC: 883331835295
- Part Description: 2012 Land Rover Range Rover Sport Front Passenger Side CV Axle Assembly
Vehicle Fitment- 2012 Land Rover Range Rover Sport | All Trims | All Engines
National® Driveshaft Center Support Bearing for 2012 Land Rover Range Rover Sport
PartNumber: 209Product Specifications- Notes: w/Magna Steyr DD295 Transfer Case; 2Spd; Full Time 4WD
- Bore: 1.772"
- Design: Single Row Radial
- Inner Race Bore: 45.000 mm
- Inner Race Radius: 0.040"
- Inner Race Width: 0.748"
- Outer Diameter: 85 mm
- Outer Race Outside Diameter: 3.347"
- Outer Race Radius: 0.040"
- Outer Race Width: 0.748"
- Outside Diameter: 3.347"
- Series: 200
- Type: A-1
- Width: 0.748"
- Part Description: 2012 Land Rover Range Rover Sport Driveshaft Center Support Bearing
Vehicle Fitment- 2012 Land Rover Range Rover Sport | All Trims | All Engines
National® Differential Bearing for 2012 Land Rover Range Rover Sport
PartNumber: A-64Product Specifications- Notes: Taper Bearing Set Incls Cup & Cone; w/Spicer M200 Axle; w/7.9in Ring Gear
- Part Description: 2012 Land Rover Range Rover Sport Differential Bearing
Vehicle Fitment- 2012 Land Rover Range Rover Sport | All Trims | All Engines
