Notes: For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line filter available;Supplied with Electronic Variable Orifice (EVO) Component;with Hydraulic Power;Includes Inner Tie Rods
Casting Material: Steel/Aluminum
Distance Between Mounting Holes (in): 11.625"
Electronic Variable Orifice (EVO): With Rack-mounted EVO valve
Hose Port Type: O-Ring
Import or Domestic: Import
Input Shaft Diameter (in): 0.75"
Input Shaft Length (in): 1.312"
Number of Mounting Holes: 2
Pressure Port Thread Size: M14 x 1.5
Rack Length (in): 42.125"
Return Port Thread Size: M16 x 1.5
Steering Rack Finish: Black
Thread Length (in): 1.915"
Total Turns Lock to Lock: 2.75
Type: Complete Unit

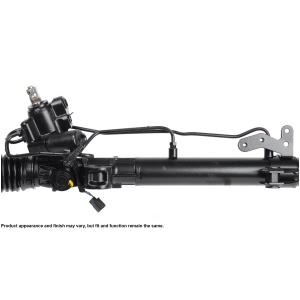

Part Description: 2008 Nissan Altima Remanufactured Hydraulic Power Rack and Pinion Complete Unit
Notes: (Exc Hybrid); If after replacement of steering unit there are still issues w/the Pwr assist, inspect condition of the PS pump. This pump has two Int valves that, if too much debris is in the system, can score the Int finish of the housing itself-the material in the housing is softer that the material used in the valves. If the valves damage the housing the pump will leak & restrict assist to the steering unit.
UPC: 884109247203

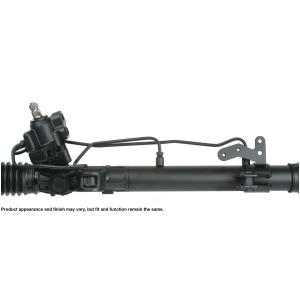

Part Description: 2008 Nissan Altima Remanufactured Hydraulic Power Steering Rack and Pinion Assembly
Notes: Includes Inner Tie Rods;In-Line filter available;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;Supplied without EVO Component;with Hydraulic Power
Casting Material: Steel/Aluminum
Distance Between Mounting Holes (in): 11.625"
Electronic Variable Orifice (EVO): Without Rack-mounted EVO valve
Hose Port Type: O-Ring
Import or Domestic: Import
Input Shaft Diameter (in): 0.75"
Input Shaft Length (in): 1.187"
Number of Mounting Holes: 2
Pressure Port Thread Size: M14 x 1.5
Rack Length (in): 42.125"
Return Port Thread Size: M16 x 1.5
Steering Rack Finish: Black
Thread Length (in): 1.915"
Total Turns Lock to Lock: 2.75
Type: Complete Unit
Part Description: 2008 Nissan Altima Remanufactured Hydraulic Power Rack and Pinion Complete Unit
