< Back ×
My Vehicle Change Vehicle
2005 Cadillac Escalade ESV
< Back to View All
Engine & Drivetrain
- Department
- Part Type
- Brands
- Prices
OEM (Genuine) 2005 Cadillac Escalade ESV Seal, Engine Front Cover
PartNumber: 12585673
Product Specifications- Notes: 5.3 & 6.0 Liter
- Item Dimensions: 3.5 x 3.5 x 0.4 inches
- Item Weight: 0.40 Pounds
- Fitment Type: Direct Replacement
- Replaces: 12550565, 12561244
- Part Description: Seal, Engine Front Cover
$15.05 MSRP:$45.94You Save: $30.89 (68%)
Sealed Power® A Series Aluminum Crankshaft Main Bearing Set for 2005 Cadillac Escalade ESV
PartNumber: 7298MAProduct Specifications- Notes: Standard Size; A-Series aluminum bearings
- Material: A-Series Aluminum Bearings
- Package Alert: Full set
- Part Material: A-Series Aluminum
- Set Type: Main Set
- Size: Standard
- Sizes: Standard-10-20-30
- UPC: 614046634350
- Part Description: A Series Aluminum Crankshaft Main Bearing Set
$98.69
Victor Reinz® Rear Improved Design Crankshaft Seal for 2005 Cadillac Escalade ESV
PartNumber: 19-10080-01Product Specifications- Notes: 1 Piece;Premium, Improved Design; PTFE Rubber; Rear
- Material: PTFE Rubber
- Part Description: Rear Improved Design Crankshaft Seal
$28.15
National® Automatic Transmission Torque Converter Repair Sleeve for 2005 Cadillac Escalade ESV
PartNumber: 99174Product Specifications- Notes: w/GMC 4L60-E Trans;w/GMC 4L65-E Trans
- Part Description: Automatic Transmission Torque Converter Repair Sleeve
$25.99
OEM (Genuine) 2005 Cadillac Escalade ESV Piston
PartNumber: 88894243
Product Specifications- Other Names: Piston, Piston Rings
- Item Dimensions: 4.7 x 4.8 x 0.6 inches
- Item Weight: 0.50 Pounds
- Fitment Type: Direct Replacement
- Replaces: 12456342
- Part Description: Piston
$41.27 MSRP:$65.54You Save: $24.27 (38%)
Sealed Power® Premium Piston Ring Set With Coating for 2005 Cadillac Escalade ESV
PartNumber: E-921KProduct Specifications- Notes: Premium;Standard Size; Ring Groove Widths: 1.5, 1.5, 3.0 (mm); Steel w/Plasma Moly top ring; Grey Iron 2nd ring
- Bore Diameter: 4.000"
- Cylinder Quantity: 8
- Outside Diameter: 4.000"
- Package Alert: Full Set
- Ring Material: Premium Moly
- Size: Standard
- UPC: 614046167391
- Part Description: Premium Piston Ring Set With Coating
$87.54OEM (Genuine) 2005 Cadillac Escalade ESV Piston
PartNumber: 19178305
Product Specifications- Other Names: Piston
- Item Dimensions: 4.9 x 4.7 x 4.6 inches
- Item Weight: 1.40 Pounds
- Fitment Type: Direct Replacement
- Replaces: 89017478
- Part Description: Piston
$73.98 MSRP:$117.48You Save: $43.50 (38%)
Sealed Power® Premium Piston Ring Set W O Coating for 2005 Cadillac Escalade ESV
PartNumber: E-921XProduct Specifications- Notes: Standard;Standard Size; Ring Groove Widths: 1.5, 1.5, 3.0 (mm); Grey Iron top ring; Grey Iron 2nd ring
- Bore Diameter: 4.000"
- Cylinder Quantity: 8
- Outside Diameter: 4.000"
- Package Alert: Full Set
- Ring Material: Iron
- Size: Standard
- UPC: 614046875807
- Part Description: Premium Piston Ring Set W O Coating
$75.23

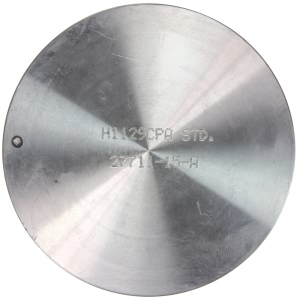

Sealed Power® Duroshield Cast Piston for 2005 Cadillac Escalade ESV
PartNumber: H1129CPAProduct Specifications- Notes: Flat;Standard Size; Hypereutectic; 3 Ring Groove Piston; Ring Groove Widths: 1.50, 1.50, 3.00 (mm)
- Part Material: Hypereutectic
- Size: Standard
- UPC: 019826085849
- Part Description: Duroshield Cast Piston
$44.85
Sealed Power® A Series Connecting Rod Bearing Set for 2005 Cadillac Escalade ESV
PartNumber: 8-2555AProduct Specifications- Notes: Standard Size; A-Series aluminum bearings
- Housing Bore Max: 56.520 mm
- Housing Bore Min: 2.2247"
- Oil Clearance Max: 0.0028"
- Oil Clearance Min: 0.0005"
- Overall Length Max: 21.390 mm
- Part Material: A-Series Aluminum
- Size: Standard
- Standard Shaft Max: 53.340 mm
- Standard Shaft Min: 2.0990"
- UPC: 087674958387
- Wall Thickness Max: 1.580 mm
- Part Description: A Series Connecting Rod Bearing Set
$31.48
Sealed Power® Piston Pin Bushing for 2005 Cadillac Escalade ESV
PartNumber: 4514YProduct Specifications- Part Material: Copper alloy
- UPC: 614046846777
- Part Description: Piston Pin Bushing
$6.27
Sealed Power® Piston Wrist Pin Bushing for 2005 Cadillac Escalade ESV
PartNumber: B-4514YProduct Specifications- UPC: 019826525628
- Part Description: Piston Wrist Pin Bushing
$5.50
Sealed Power® A Series Aluminum Connecting Rod Bearing Set for 2005 Cadillac Escalade ESV
PartNumber: 2555AProduct Specifications- Notes: Standard Size; A-Series aluminum bearings
- Housing Bore Max: 56.520 mm
- Housing Bore Min: 2.2247"
- Oil Clearance Max: 0.0028"
- Oil Clearance Min: 0.0005"
- Overall Length Max: 21.390 mm
- Part Material: A-Series Aluminum
- Size: Standard
- Standard Shaft Max: 53.340 mm
- Standard Shaft Min: 2.0990"
- UPC: 087674957564
- Wall Thickness Max: 0.0622"
- Part Description: A Series Aluminum Connecting Rod Bearing Set
$4.11
SKF® Rear Crankshaft Seal for 2005 Cadillac Escalade ESV
PartNumber: 38617Product Specifications- Notes: w/Reverse Lip
- Quantity Per Application: 1
- UPC: 085311492904
- Part Description: Rear Crankshaft Seal
$26.81
National® Front Crankshaft Repair Sleeve for 2005 Cadillac Escalade ESV
PartNumber: 99189Product Specifications- Notes: w/Borg-Warner 4481 Transfer Case; 1Spd; Full Time 4WD
- Flanged Outside Diameter: 2.205"
- Installation Depth: 0.984"
- Material: Stainless Steel
- Overall Width: 0.668"
- Shaft Size Maximum: 1.893"
- Shaft Size Minimum: 47.930 mm
- UPC: 724956213665
- Width on Shaft: 14.000 mm
- Part Description: Front Crankshaft Repair Sleeve
$26.72
National® Front Crankshaft Repair Sleeve for 2005 Cadillac Escalade ESV
PartNumber: 99193Product Specifications- Notes: with AAM Axle; Independent Front Suspension; with 8.25in Ring Gear
- Flanged Outside Diameter: 56.360 mm
- Installation Depth: 1.000"
- Material: Stainless Steel
- Overall Width: 17.480 mm
- Shaft Size Maximum: 1.940"
- Shaft Size Minimum: 49.120 mm
- Width on Shaft: 14.300 mm
- Part Description: Front Crankshaft Repair Sleeve
$26.63
National® Front Crankshaft Repair Sleeve for 2005 Cadillac Escalade ESV
PartNumber: 99210Product Specifications- Notes: with AAM Axle; with 8.625in Ring Gear
- Flanged Outside Diameter: 2.422"
- Installation Depth: 1.281"
- Material: Stainless Steel
- Overall Width: 19.050 mm
- Shaft Size Maximum: 2.128"
- Shaft Size Minimum: 2.123"
- UPC: 724956213726
- Width on Shaft: 0.500"
- Part Description: Front Crankshaft Repair Sleeve
$27.92
Victor Reinz® Rear Wide Lip Crankshaft Repair Sleeve for 2005 Cadillac Escalade ESV
PartNumber: 71-14573-00Product Specifications- Notes: Crankshaft Machining Required;1.156in Length;Rear; Wide Lip
- Complete: Y
- Contains Applications: Y
- Release Wave: 03/29/2019
- UPC: 023913680497
- Part Description: Rear Wide Lip Crankshaft Repair Sleeve
