Dorman® Rear Coil Springs for 2004 Mercedes-Benz CLK320
PartNumber: 926-574Product Specifications- Notes: Gray
- Coil Quantity: 9
- Color: Black
- End 1 Outside Diameter: 101 mm
- End 2 Outside Diameter: 101 mm
- End Type Spring 1: Tapered
- End Type Spring 2: Flat
- Finish: E- Coat
- Free Height: 335 mm
- Material: Carbon Steel
- Maximum Inside Diameter: 75 mm
- Maximum Outside Diameter: 101 mm
- OE Part Number: 2023241804
- Package Contents: 2 Coil Springs
- Seat Included: No
- Spring Rate: 353 lbs/inch
- Spring Type: Coil
- Suspension Grade Type: Standard
- UPC: 037495946599
- Wire Diameter: 13.8 mm
- Part Description: Rear Coil Springs
$91.45
VAICO® Rear Coil Spring Shim for 2004 Mercedes-Benz CLK320
PartNumber: V30-7595Product Specifications- Notes: Grade: Q+; Dimensions: 17 mm
- Diameter [mm]: 102
- Height [mm]: 35
- Number of Knobs: 4
- Packaging height [cm]: 3,5
- Packaging width [cm]: 10,2
- Thickness [mm]: 17
- Weight [kg]: 0,149
- Part Description: Rear Coil Spring Shim
$15.13
lesjofors® Rear Coil Spring for 2004 Mercedes-Benz CLK320
PartNumber: 4256832Product Specifications- Notes: Exc leveling control; For Classic/Elegance; Generally, the height of a Mercedes can be adjusted by the use of different OE spring spacers; w/o Sports Susp
- Bar Diameter: 0.55" (14mm)
- Free Length: 12.6" (320mm)
- Inner Diameter: 3.91" (100mm)
- UPC: 884109889069
- Part Description: Rear Coil Spring
$46.72
VAICO® Rear Coil Spring Shim for 2004 Mercedes-Benz CLK320
PartNumber: V30-7594Product Specifications- Notes: Grade: Q+; Dimensions: 13 mm
- Number of Knobs: 3
- Packaging height [cm]: 3,1
- Packaging width [cm]: 10,7
- Thickness [mm]: 13
- Weight [kg]: 0,149
- Part Description: Rear Coil Spring Shim
$9.28

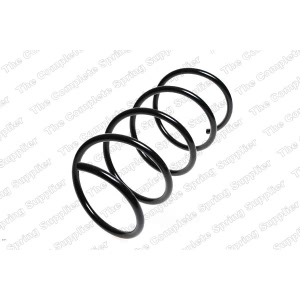

lesjofors® Front Coil Spring for 2004 Mercedes-Benz CLK320
PartNumber: 4056847Product Specifications- Notes: For Classic/Elegance, Exc sports Susp
- UPC: 884109889021
- Part Description: Front Coil Spring
$42.42
VAICO® Rear Coil Spring Shim for 2004 Mercedes-Benz CLK320
PartNumber: V30-7593Product Specifications- Notes: Grade: Q+; Dimensions: 5 mm
- Number of Knobs: 1
- Packaging height [cm]: 2
- Packaging width [cm]: 10,5
- Thickness [mm]: 5
- Weight [kg]: 0,092
- Part Description: Rear Coil Spring Shim
$7.08
Bilstein® Pss9 Front And Rear Lowering Coilover Kit for 2004 Mercedes-Benz CLK320
PartNumber: 48-088602Product Specifications- Notes: Front Lowered Height: 30-50mm, up to 1130kg Axle Load; Rear Lowered Height: 30-50mm, up to 1155kg Axle Load; w/o Self-Leveling Susp; Wheel spacers may be Reqd for some wheel/tire combinations
- Coil Spring Finish: Blue
- Front Axle Load up to: 1130 kg (2492 lbs)
- Front Drop Height: 1.2"-2.0"
- Front Shock Absorber Damping Force Adjustment: Yes
- Front Shock Absorber Height Adjustment Type: Threaded Spacer
- Rear Axle Load up to: 1155 kg (2547 lbs)
- Rear Drop Height: 1.2"-2.0"
- Rear Shock Absorber Damping Force Adjustment: Yes
- Rear Shock Absorber Height Adjustment Type: Threaded Spacer
- Shock Absorber Adjustment Type: Double Adjustment
- Shock Absorber Damping Type: Inverted
- Shock Absorber Finish: Zinc Plated (Front), Yellow (Rear)
- Shock Absorber Internal Design: Monotube
- Shock Absorber Levels of Damping: 9 Levels
- Shock Absorber Reservoir: Without External Reservoir
- Shock Absorber Type: Gas Charged
- UPC: 651860623870
- Part Description: Pss9 Front And Rear Lowering Coilover Kit
lesjofors® Rear Coil Springs for 2004 Mercedes-Benz CLK320
PartNumber: 4256866Product Specifications- Notes: For Classic/Elegance, Exc sports Susp; Generally, the height of a Mercedes can be adjusted by the use of different OE spring spacers.
- Part Description: Rear Coil Springs
VAICO® Rear Coil Spring Shim for 2004 Mercedes-Benz CLK320
PartNumber: V30-0971Product Specifications- Notes: Grade: Q+; Dimensions: 9 mm
- Size: 0.35" (9 mm)
- Part Description: Rear Coil Spring Shim
