Notes: In-Line filter available;Includes Inner Tie Rods;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;with Hydraulic Power
Casting Material: Aluminum
Distance Between Mounting Holes (in): 11.500"
Hose Port Type: Teflon
Import or Domestic: Domestic
Input Shaft Diameter (in): 0.733"
Input Shaft Length (in): 1.562"
Number of Mounting Holes: 2
Pressure Port Thread Size: M16 x 1.5
Rack Length (in): 48.500"
Return Port Thread Size: M16 x 1.5
Steering Rack Finish: Black
Thread Length (in): 2.625"
Total Turns Lock to Lock: 2.81
Type: Complete Unit

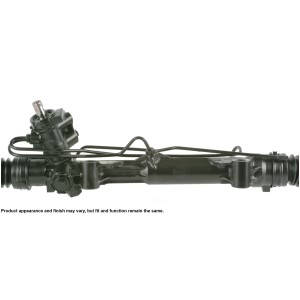

Part Description: 2003 Mercury Sable Remanufactured Hydraulic Power Rack and Pinion Complete Unit
Notes: The pressure & return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in Top port. Refer to warning label 640100.
UPC: 843613111110
Part Description: 2003 Mercury Sable Remanufactured Rack and Pinion Assembly
