Notes: In-Line filter available;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;Includes Inner Tie Rods;with Hydraulic Power
Casting Material: Steel/Aluminum
Distance Between Mounting Holes (in): 19.125"
Hose Port Type: O-Ring
Import or Domestic: Import
Input Shaft Diameter (in): 0.748"
Input Shaft Length (in): 1.937"
Number of Mounting Holes: 2
Pressure Port Thread Size: M16 x 1.5
Rack Length (in): 44.063"
Return Port Thread Size: M17 x 1.5
Steering Rack Finish: Black
Thread Length (in): 2.3"
Total Turns Lock to Lock: 3.19
Type: Complete Unit

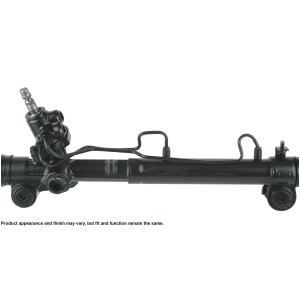

Part Description: 2002 Toyota Camry Remanufactured Hydraulic Power Rack and Pinion Complete Unit
Notes: (15" Tires); This vehicle is equipped w/a relatively small reservoir therefore it will be more difficult to bleed the air out of the system than normal so the bleeding procedure outlined in instruction sheet 655010 must be followed.
UPC: 884109770091
Part Description: 2002 Toyota Camry Rack and Pinion Assembly
Notes: Includes Inner Tie Rods;In-Line filter available;with Hydraulic Power;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system
Casting Material: Steel/Aluminum
Distance Between Mounting Holes (in): 19.125"
Hose Port Type: O-Ring
Import or Domestic: Import
Input Shaft Diameter (in): 0.748"
Input Shaft Length (in): 1.937"
Number of Mounting Holes: 2
Pressure Port Thread Size: M14 x 1.5
Rack Length (in): 43.813"
Return Port Thread Size: M17 x 1.5
Steering Rack Finish: Black
Thread Length (in): 2.3"
Total Turns Lock to Lock: 3.06
Type: Complete Unit
Part Description: 2002 Toyota Camry Remanufactured Hydraulic Power Rack and Pinion Complete Unit
Notes: (16" Tires); This vehicle is equipped w/a relatively small reservoir therefore it will be more difficult to bleed the air out of the system than normal so the bleeding procedure outlined in instruction sheet 655010 must be followed.
UPC: 884109770107
Part Description: 2002 Toyota Camry Remanufactured Rack and Pinion Assembly
Notes: Japan Built, W/O Outer Tie Rod Assy., Le;Japan Built, W/Outer Tie Rod Assy., Le; Camry; W/O Solara; 2.4l; Japan Built; Le;Camry; W/O Solara; 3.0l; All; Japan Built; Le
Item Dimensions: 49.7 x 10.6 x 6.7 inches
Item Weight: 27.00 Pounds
Replaces: 44200-33320, 44250-33320, 44200-33321
Part Description: 2002 Toyota Camry Gear Assembly
More Info
Vehicle Fitment
2002 Toyota Camry | Base, LE, SE, XLE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
Notes: Japan Built, W/O Outer Tie Rod Assy., Le;Japan Built, W/Outer Tie Rod Assy., Le; Camry; W/O Solara; 2.4l; Japan Built; Le;Camry; W/O Solara; 3.0l; All; Japan Built; Le
Item Dimensions: 49.7 x 10.6 x 6.7 inches
Item Weight: 27.00 Pounds
Replaces: 44200-33320, 44250-33320, 44200-33321
Part Description: 2002 Toyota Camry Gear Assembly
More Info
Vehicle Fitment
2002 Toyota Camry | Base, LE, SE, XLE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
Notes: US Built, Se & Xle; Japan Built, W/O Outer Tie Rod Assy., Se & Xle;Japan Built, W/Outer Tie Rod Assy., Se & Xle; Camry; W/O Solara; 2.4l; Japan Built; Se, Xle;Camry; W/O Solara; 2.4l; Usa Built; Se, Xle;Camry; W/O Solara; 3.0l; All; Japan Built; Se, Xle;Camry; W/O Solara; 3.0l; All; Usa Built; Se, Xle
Notes: US Built, Se & Xle; Japan Built, W/O Outer Tie Rod Assy., Se & Xle;Japan Built, W/Outer Tie Rod Assy., Se & Xle; Camry; W/O Solara; 2.4l; Japan Built; Se, Xle;Camry; W/O Solara; 2.4l; Usa Built; Se, Xle;Camry; W/O Solara; 3.0l; All; Japan Built; Se, Xle;Camry; W/O Solara; 3.0l; All; Usa Built; Se, Xle
