2002 Saab 9-5

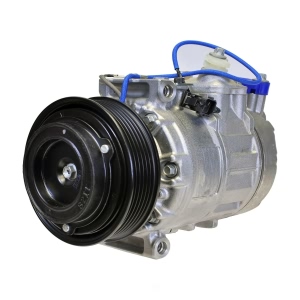

Denso® A/C Compressor with Clutch for 2002 Saab 9-5
PartNumber: 471-1605Product Specifications- Clutch Maximum Diameter: 110.0 mm
- Compressor Mount Hole Quantity: 3
- Mounting Type: Bolt Tangent
- OE Part Number: 5048095
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511177925
- Part Description: 2002 Saab 9-5 A/C Compressor with Clutch
Vehicle Fitment- 2002 Saab 9-5 | All Trims | 4 Cyl 2.3L
- 2002 Saab 9-5 | All Trims | 6 Cyl 3.0L
$367.41
Gates® Safety Stripe Hvac Heater Hose for 2002 Saab 9-5
PartNumber: 28412Product Specifications- Notes: Cut to Length, 12";Cut to Length, 16";Cut to Length, 20"
- Centerline Length: 50 ft
- End 1 Inside Diameter: 19 mm
- End 2 Inside Diameter: 19 mm
- Material: EPDM
- OE Part Number: 49693
- UPC: 072053066326
- Weight Per Length: 13.20 lbs./Carton
- Working Pressure: 50 PSI
- Part Description: 2002 Saab 9-5 Safety Stripe Hvac Heater Hose
Vehicle Fitment- 2002 Saab 9-5 | All Trims | 4 Cyl 2.3L
$67.45

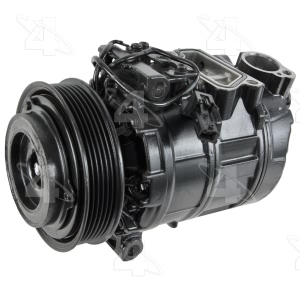

Four Seasons® A C Compressor With Clutch for 2002 Saab 9-5
PartNumber: 98364Product Specifications- Notes: w/ 7SBU16C Compressor; New w/ Clutch; May Require use of OE Manifold
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.6875
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 7SBU16C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.203125
- Mount Distance MM: 30.480
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24670] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24635] / Green Round O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 119.075
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.6875
- Pulley Outside Diameter: 4.6875
- Pulley Ridge Diameter: 4.6875
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361983649
- Part Description: 2002 Saab 9-5 A C Compressor With Clutch
Vehicle Fitment- 2002 Saab 9-5 | All Trims | All Engines
$325.36
Gates® Engine Coolant Hose for 2002 Saab 9-5
PartNumber: 19726Product Specifications- Notes: Cut to fit
- Branch Quantity: 0
- Centerline Length: 693 mm
- End 1 Inside Diameter: 19 mm
- End 2 Inside Diameter: 25 mm
- Material: EPDM
- OE Part Number: 31746
- UPC: 072053466294
- Part Description: 2002 Saab 9-5 Engine Coolant Hose
Vehicle Fitment- 2002 Saab 9-5 | All Trims | 4 Cyl 2.3L
$18.80
Dayco® Small Id Hvac Heater Hose for 2002 Saab 9-5
PartNumber: 87653Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 5/8
- End 2 Inside Diameter: 5/8
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 2 1/4
- UPC: 038244598403
- Part Description: 2002 Saab 9-5 Small Id Hvac Heater Hose
Vehicle Fitment- 2002 Saab 9-5 | All Trims | 4 Cyl 2.3L
- 2002 Saab 9-5 | All Trims | 6 Cyl 3.0L
$7.18
Four Seasons® Remanufactured A C Compressor With Clutch for 2002 Saab 9-5
PartNumber: 97364Product Specifications- Notes: w/ 7SBU16C Compressor; Reman w/ Clutch; May Require use of OE Manifold
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.6875
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 7SBU16C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.203125
- Mount Distance MM: 30.480
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24670] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24635] / Green Round O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 119.075
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.6875
- Pulley Outside Diameter: 4.6875
- Pulley Ridge Diameter: 4.6875
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361973640
- Part Description: 2002 Saab 9-5 Remanufactured A C Compressor With Clutch
Vehicle Fitment- 2002 Saab 9-5 | All Trims | All Engines
$270.97
Four Seasons® Hvac Blower Motor With Wheel for 2002 Saab 9-5
PartNumber: 75073Product Specifications- Notes: w/ Wheel
- Cage Wheel Included: w/ Wheel
- Connector Gender: Male
- Connector qty: 1
- Flanged End: Yes
- Material: Plastic
- Motor Diameter: In Housing
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CCW
- Style: Flanged
- Terminal Type: 2 Terminal Connector
- UPC: 096361069794
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: 5.750
- Part Description: 2002 Saab 9-5 Hvac Blower Motor With Wheel
Vehicle Fitment- 2002 Saab 9-5 | All Trims | All Engines
$95.29
Gates® Hvac Heater Molded Hose for 2002 Saab 9-5
PartNumber: 19665Product Specifications- Notes: Cut to fit
- Centerline Length (in): 13.9"
- Inside Diameter 1 (in): 0.75"
- Number of Branches: 0
- OE Part Number: 43155
- UPC: 072053179682
- Part Description: 2002 Saab 9-5 Hvac Heater Molded Hose
Vehicle Fitment- 2002 Saab 9-5 | All Trims | 4 Cyl 2.3L
$10.82
Four Seasons® A C Expansion Valve for 2002 Saab 9-5
PartNumber: 39296Product Specifications- Color: Gold
- Liquid Inlet Fitting Gender: Female
- Liquid Inlet Fitting Thread Diameter: No. 6
- Liquid Inlet Style: FIO
- Liquid Inlet Type: Insert O-Ring
- Liquid Outlet Fitting Gender: Female
- Liquid Outlet Fitting Thread Diameter: No. 8
- Liquid Outlet Style: FIO
- Liquid Outlet Type: Insert O-Ring
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hole Quantity: 2
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24608] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24610] / Green O-Ring
- O-Ring C Quantity: 1
- O-Ring D Number/Desc: [24612] / Green O-Ring
- O-Ring D Quantity: 1
- Refrigerant Type: R134A
- Style: w/o Solenoid
- Suction Inlet Fitting Gender: Female
- Suction Inlet Fitting Thread Diameter: No. 10
- Suction Inlet Style: FIO
- Suction Inlet Type: Insert O-Ring
- Suction Outlet Fitting Gender: Female
- Suction Outlet Fitting Thread Diameter: No. 12
- Suction Outlet Style: FIO
- Suction Outlet Type: Insert O-Ring
- Super Heat: -1.500
- Switch Included: Not Included
- Tonnage: 2.000
- UPC: 096361392960
- Part Description: 2002 Saab 9-5 A C Expansion Valve
Vehicle Fitment- 2002 Saab 9-5 | All Trims | All Engines
$30.72
Gates® 90 Degree Hvac Heater Molded Hose for 2002 Saab 9-5
PartNumber: 28474Product Specifications- Notes: Cut to fit
- Angle: 90
- Arm Length 1 (in): 4
- Arm Length 1 (mm): 102
- Arm Length 2 (in): 6
- Arm Length 2 (mm): 152
- Centerline Length (in): 10
- Centerline Length (mm): 254
- End 1 Inside Diameter: 0.75 in
- Material: EPDM
- Molded: Yes
- Number of Quick Connect Fittings: 0
- OE Part Number: 9016
- UPC: 072053062083
- Part Description: 2002 Saab 9-5 90 Degree Hvac Heater Molded Hose
Vehicle Fitment- 2002 Saab 9-5 | All Trims | 4 Cyl 2.3L
$9.80
Four Seasons® A C Receiver Drier for 2002 Saab 9-5
PartNumber: 83732Product Specifications- Body Diameter: 2.375
- Body Length: 8.500
- Connector B Type: Pad Mount
- Connector Type: Pad Mount
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Pad Mount
- Inlet Filter Fitting Type: Pad Mount
- Inlet Fitting Diameter: .413
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Bracket Included: Hardware not included
- Outlet Fitting Type: P-Nut Fitting
- Outlet Fraction: 1/2
- Outlet IN: .464
- Overall Depth IN: 8.500
- Pad Mount: w/ Pad Mount
- Service Port: w/o Service Port
- Sight Glass: No
- Style: Aluminum Filter Drier w/ Pad Mount
- Switch Port: w/o Switch Port
- UPC: 096361837324
- Part Description: 2002 Saab 9-5 A C Receiver Drier
Vehicle Fitment- 2002 Saab 9-5 | All Trims | All Engines
$19.27
Four Seasons® A C Clutch Control Relay Harness Connector for 2002 Saab 9-5
PartNumber: 37210Product Specifications- Connector Pin Qty: 5
- Connector Shape: Other design
- Gender: Female
- Printed Foot Note: Harness Connector for Bosch Relays 4 or 5
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 5
- UPC: 096361372108
- Wire Length IN: 6.000
- Part Description: 2002 Saab 9-5 A C Clutch Control Relay Harness Connector
Vehicle Fitment- 2002 Saab 9-5 | All Trims | All Engines
$10.29
Dayco® Small Id Hvac Heater Hose for 2002 Saab 9-5
PartNumber: 88431Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 3/4
- End 2 Inside Diameter: 3/4
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 12
- UPC: 036687663528
- Part Description: 2002 Saab 9-5 Small Id Hvac Heater Hose
Vehicle Fitment- 2002 Saab 9-5 | All Trims | 4 Cyl 2.3L
$9.48
Four Seasons® A C Evaporator Core for 2002 Saab 9-5
PartNumber: 44021Product Specifications- Notes: Evaporator replacement for this application may require considerable time, specialty tools, and training.
- UPC: 096361144057
- Part Description: 2002 Saab 9-5 A C Evaporator Core
Vehicle Fitment- 2002 Saab 9-5 | All Trims | All Engines
$58.74
WIX® Cabin Air Filter for 2002 Saab 9-5
PartNumber: 49370Product Specifications- Notes: without Automatic Climate Control
- Filter Type: Activated Carbon
- Height: 2.18" (55mm)
- Length: 12.795" (325mm)
- OE Part Number: 12758727, 12758729, 5335948, 5335955, 4541456, 12758728, 5047238, 4541546, 5047303
- UPC: 765809493704
- Width: 7.873" (200mm)
- Part Description: 2002 Saab 9-5 Cabin Air Filter
Vehicle Fitment- 2002 Saab 9-5 | All Trims | 6 Cyl 3.0L
- 2002 Saab 9-5 | All Trims | 4 Cyl 2.3L
VEMO® HVAC Heater Core for 2002 Saab 9-5
PartNumber: V40-61-0010Product Specifications- Notes: Grade: Aftermarket; Dimensions: 235 x 157 x 42 mm
- Core Dimensions: 205 x 176 x 42 mm
- Height [mm]: 145
- Length [mm]: 320
- Transmission Type: Manual Transmission
- Vehicle Equipment: for vehicles with air conditioning
- Weight [kg]: 0.617
- Width [mm]: 220
- Part Description: 2002 Saab 9-5 HVAC Heater Core
Vehicle Fitment- 2002 Saab 9-5 | All Trims | 6 Cyl 3.0L
- 2002 Saab 9-5 | All Trims | 4 Cyl 2.3L
Hastings® Cabin Air Filter for 2002 Saab 9-5
PartNumber: AFC1653Product Specifications- Pallet Layer Quantity: 54
- UPC: 768370058990
- Part Description: 2002 Saab 9-5 Cabin Air Filter
Vehicle Fitment- 2002 Saab 9-5 | All Trims | 6 Cyl 3.0L
- 2002 Saab 9-5 | All Trims | 4 Cyl 2.3L
