Notes: Bottom Header: 3 1/16" x 19 5/8"; Core Size: 24 1/8" x 18 7/8" x 1 1/16"; Manufactured Material: Plastic/Alum; Rows: 1; Top Header: 3 1/16" x 19 5/8"; NEW BODY STYLE
Bottom Header: 3.22" x 19.77"
Core Height: 19"
Core Length: 24.17"
Core Material: Aluminum
Core Thickness: 1.02"
EOC: No
Fin Count (every 4"): 73: 73
Fin Wave Height (in): 0.30
Find Wave Pitch: 2.8
Flow Configuration: Crossflow
Inlet Connection Type: Hose Clamp
Inlet Diameter: 1.54"
No. Of Rows: 1
OE Part Number: 52028829AF, CH3010280
Outlet Connection Type: Hose Clamp
Outlet Diameter: 1.77"
TOC: No
Top Header: 3.22" x 19.77"
Total Fin Row Count: 51
Total Tube Count: 50
Tube Count (Every 4"): 11: 11
Tube Width x Height: 26" x 2"
UPC: 762405252926

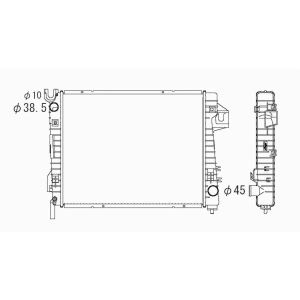

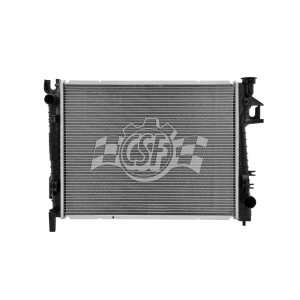

Part Description: 2002 Dodge Ram 1500 Engine Coolant Radiator
Notes: Universal Fit Super Duty Electric Puller Auxiliary Fan. Add on fans used to supplement the primary Eng cooling fan. Incls mounting hardware. Controls not Incld.;Universal Fit Super Duty Electric Puller Primary Fan. Incls mounting hardware. Controls not Incld.
Material: Plastic
Performance Rated: Yes
SDS Required: No (135233618)
UPC: 096361089945
Part Description: 2002 Dodge Ram 1500 Auxiliary Engine Cooling Fan
Notes: Universal Fit Super Duty Electric Pusher Auxiliary Fan. Add on fans used to supplement the primary Eng cooling fan. Incls mounting hardware. Controls not Incld.;Universal Fit Super Duty Electric Pusher Primary Fan. Incls mounting hardware. Controls not Incld.
Material: Plastic
Performance Rated: Yes
SDS Required: No (135233618)
UPC: 096361089952
Part Description: 2002 Dodge Ram 1500 Auxiliary Engine Cooling Fan
Notes: Universal Fit Super Duty Electric Pusher Auxiliary Fan. Add on fans used to supplement the primary Eng cooling fan. Incls mounting hardware. Controls not Incld.
Depth IN: 2.56"
Dia. IN: 12.000
Fan Quantity: 1
Material: Plastic
Mounting Hardware: Included
Performance Rated: Yes
SDS Required: No (135233618)
UPC: 096361089938
Part Description: 2002 Dodge Ram 1500 Auxiliary Engine Cooling Fan
Notes: Universal Fit Auxiliary Electric Fan. Add on fans used to supplement the primary Eng cooling fan.;Universal Fit Primary cooling fan. Reversible for push or pull operation. Includes mounting hardware. Controls not included.
Blade Color A : Black
Blade Material: Plastic; Reinforced Nylon
Blade Quantity: 8
Blade Type: curved 'S' blade
CFM Free Air High: 1250
CFM Free Air Low: 1250
CFM Rad Mnt High: 1050
CFM Rad Mnt Low: 1050
Color: Black
Depth IN: 3.71"
Dia. IN: 14.000
Dia. MM: 355.600
Fan 1 Diameter: 14.000
Fan Clutch Mounted: no
Fan Quantity: 1
Fan Type: Universal Electric fan
Material: Reinforced Nylon
Mounting Hardware: Included
O.E. Replacement: No
Performance Rated: Yes
Rotation: Reversible
SDS Required: No (135233618)
Shroud Color: Black
Shroud Included: finger guard on fan
Shroud Material: Plastic; reinforced nylon
Style: Reversible Fan
Universal Or Specific Fit: Universal Electric fan
UPC: 096361368972
Voltage: 12
Volume (CFM): 1085
Wiring Harness Length: 36.000
Part Description: 2002 Dodge Ram 1500 Electric Fan Kit
