Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 12
Flow Rating: 32 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 105.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Female Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 52.0
Resistance Ohms Full: 396.0
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604190647
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2000 Saab 9-3 Fuel Pump Module Assembly
Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,SE,B205R Eng.,Turbocharged;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Viggen,B235R Eng.,Turbocharged;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Base,B205L Eng.,Turbocharged
Average Current Draw(A): 7
Average Flow Rating(GPH): 40
Connector Gender: Female
Connector Quantity: 1
Connector Shape: Rectangle
Country of Orign: China
Fuel Filter Included: No
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: No
Fuel Type: Turbine
Gasket or Seal Included: Yes
Gasket Or Seal Material: NBR
Grade Type: Performance
Height (in.): 7
Housing Material: POM
In Tank or External: In Tank
Inlet Size: 0.433
Inlet Type: Strainer
Installation Warnings: No
Internal Or External Strainer: External and Internal
Length (in.): 15.5
Life Cycle Status Code: Available to Order
Lock Ring Included: No
Maximum Pump Pressure (PSI): 95
Minimum Pump Pressure (PSI): 85
Mounting Hardware Included: No
Negative Ground: No
Outlet Quantity: 1
Outlet Size: 0.54
Outlet Type: Female Quick Connect
Package Contents: Fuel Pump Module Assembly
Product Height (in): 5.59
Product Length (in): 11.1
Product Width (in): 11.02
Regulator Included: No
Resistance Ohms Empty: 51
Resistance Ohms Full: 395
Short Description: Electric Fuel Pump
Strainer Included: Yes
Terminal Gender: Female
Terminal Quantity: 4
Terminal Type: PIN
UPC: 00072845144379
Voltage: 12V
Weight (lbs): 2.57
Weight (lbs.): 3.3
Width (in.): 10
Wire Harness Included: No

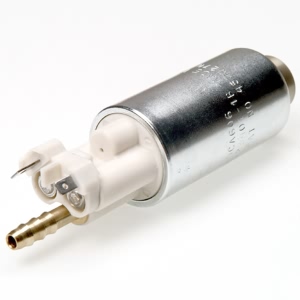

Part Description: 2000 Saab 9-3 Electric Fuel Pump
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Average Current Draw: 9
Average Flow Rating: 21
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Item Grade: Standard Replacement
Maximum Pressure: 80.0
Outlet Outside Diameter: 0.375
Outlet Type: Hose
Package Contents: Electric Fuel Pump, Instruction Sheet
Pump Type: Electric
Strainer Included: No
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604034859
Voltage: 12
Wiring Harness Included: No
Part Description: 2000 Saab 9-3 In Tank Electric Fuel Pump
