Notes: Premium;Standard Size; Use w/H892CP & H893CP pistons; Ring Groove Widths: 1.5, 1.5, 3.0 (mm); Ductile Iron w/Plasma Moly top ring; Grey Iron 2nd ring
Bore Diameter: 87.50 mm
Cylinder Quantity: 4
Outside Diameter: 87.50 mm
Package Alert: Full Set
Ring Material: Premium Moly
Size: Standard
UPC: 053059783578
Part Description: 2000 Plymouth Breeze Premium Piston Ring Set With Coating
Notes: Standard Size; Hypereutectic; Use w/E-640K ring set; 3 Ring Groove Piston; Ring Groove Widths: 1.50, 1.50, 3.00 (mm); 1.225 CD; Domed Head .220 high; DUROSHIELD skirt coated piston
Bore: 87.5000
Bore (Inch): 3.4449
Compression Distance: 1.225
Head Type: Domed Head .220 high; DUROSHIELD~ skirt coated piston
Minimum Clearance: See Piston Fitting Information on carton label
Note 1: Standard Size
Part Material: Hypereutectic
Pin Diameter: 21.99
Pin Diameter (Inch): 0.866
Pin Offset: 0.762
Pin Offset (Inch): 0.03
Ring 1 Qty: 2
Ring 1 Width: 1.50mm
Ring 2 Qty: 1
Ring 2 Width: 3.00mm
Standard Size: Standard
UPC: 614046760714

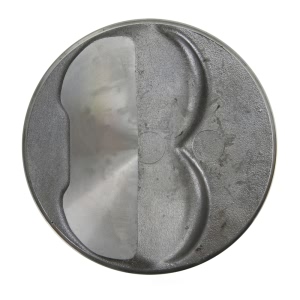

Part Description: 2000 Plymouth Breeze Engine Piston
