43 products about 1999 Mazda B3000 A/C & Heating found
Product Specifications- Gasket or Seal Included: No
- Mounting Hardware Included: No
- OE Part Number: 1F7061B15, ZZM061B15
- Package Contents: Blower Motor Resistor and Harness
- Package Quantity: 1
- Packaging Type: Box
- Terminal Type: Blade
- UPC: 037495645010
- Part Description: 1999 Mazda B3000 Hvac Blower Motor Resistor Kit
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: w/ FS10 Compressor; Reman w/ Clutch
- Belt Width IN: 0.875
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.000
- Coil Clock Position: 3
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: FS10
- Distance From Clutch To Mounting Flange: 1.703125
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24632] / Green O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 127.000
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.000
- Pulley Outside Diameter: 5.000
- Pulley Ridge Diameter: 5.000
- Refrigerant Type: R134a
- Suc Prt Typ Note: W/ O-Ring
- Suction Port Type: Block Mount
- Terminal Type: Pin
- UPC: 096361571327
- Part Description: 1999 Mazda B3000 Remanufactured A C Compressor With Clutch
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | 6 Cyl 3.0L

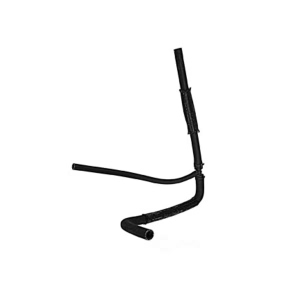

Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: Y
- End 1 Inside Diameter: 5/8
- End 1 Outside Diameter: 31/32
- End 2 Inside Diameter: 5/8
- End 2 Outside Diameter: 31/32
- End 3 Inside Diameter: 1/4
- End 3 Outside Diameter: 9/16
- Hose Type: Branched Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 25 1/4
- UPC: 036687874214
- Part Description: 1999 Mazda B3000 Molded Heater Hose
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: Blend Door Kit; Installed Through Glovebox Area
- Door Length: 8 in
- Door Material: Metal
- Door Thickness: 0.5 in
- Door Width: 0.5 in
- OE Part Number: F5TZ19A813A
- Package Contents: Blend Door; Metal Tape; Instruction Sheet
- Spring Included: No
- Universal Or Specific Fit: Specific
- UPC: 019495275596
- Part Description: 1999 Mazda B3000 Hvac Blend Door Repair Kit
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: w/FS10 Compressor; w/Red Orifice Tube;w/ FS10 Compressor; w/ Red Orifice Tube; Includes: 58132 (New Compressor), 83014 (Accum), 38635 (Orifice), 59007 (Oil), O-Rings
- Components Included: New Compressor, Accumulator, Orifice Tube, Oil, and O-Rings
- UPC: 096361075399
- Part Description: 1999 Mazda B3000 A C Compressor Kit
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | 6 Cyl 3.0L

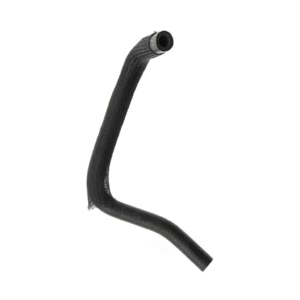

Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 19/32
- End 2 Inside Diameter: 19/32
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 13 1/2
- UPC: 038244721122
- Part Description: 1999 Mazda B3000 Small Id Hvac Heater Hose
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: w/Ford FS-10 AC Compressor
- Type: D-3
- Part Description: 1999 Mazda B3000 A/C Compressor Bearing
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: w/ FS10 Compressor; New w/ Clutch
- Belt Width IN: 0.875
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.000
- Coil Clock Position: 3
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: FS10
- Distance From Clutch To Mounting Flange: 1.703125
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24632] / Green O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.000
- Pulley Outside Diameter: 5.000
- Pulley Ridge Diameter: 5.000
- Refrigerant Type: R134a
- Suc Prt Typ Note: W/ O-Ring
- Suction Port Type: Block Mount
- Terminal Type: Pin
- UPC: 096361581326
- Part Description: 1999 Mazda B3000 A C Compressor With Clutch
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Discharge & Suction Line
- Bracket: w/ Bracket
- Discharge End IN: 0.450
- Discharge End MM: 11.420
- Discharge End Style: Captive O-Ring
- Discharge End Type: P-Nut Fitting
- Fittings Included: Not Included
- Gasket or Seal Included: Included
- Manifold: Yes
- Material: Aluminum / Rubber
- Muffler: w/o Muffler
- O-Ring A Number/Desc: [24672] / Green O-Ring
- O-Ring A Quantity: 3
- O-Ring B Number/Desc: [24628] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24650] / Green O-Ring
- O-Ring C Quantity: 1
- O-Rings Included: Included
- O.E. Replacement: Yes
- Refrigerant Type: R134-A
- Service Port: w/ Service Port
- Service Port Type: R134-A Quick Disconnect
- Suction End IN: 0.803
- Suction End MM: 20.400
- Suction End Style: Male Springlock
- Suction End Type: Block
- Switch Included: Not Included
- Switch Service Port: w/ Switch Port
- UPC: 096361566897
- Part Description: 1999 Mazda B3000 A C Discharge And Suction Line Hose Assembly
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: w/ FS10 Compressor; New
- Belt Type: Serpentine
- Belt Width IN: 0.875
- Can Size: w/ Coil
- Clutch Maximum Diameter: 5.000
- Coil: w/ Coil
- Coil Voltage: 12
- Color: Black
- Distance From Clutch To Mounting Flange: 0.500
- Groove: 6
- Lead Wire : One Piece Coil
- Material: Steel
- Meets / Exceeds OEM: Yes
- Mounting Type: Snap Ring / Press Fit
- Rotation: CCW-CW
- Style: FS10
- Thermal Or Non Thermal: NR
- UPC: 096361478671
- Part Description: 1999 Mazda B3000 A C Compressor Clutch
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | 6 Cyl 3.0L
Product Specifications- Core Depth Fraction: 3-3/4; 3-9/16
- Core Depth MM: 90.487
- Core Height Fraction: 8-1/4
- Core Height MM: 209.550
- Core Width Fraction: 10-35/64
- Core Width MM: 267.792
- Depth: 3.563; 3.750
- Height: 8.250
- Inlet Fitting Outside Diameter: No. 8
- Material: Aluminum
- O-Ring A Number/Desc: [24610] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24668] / Green O-Ring
- O-Ring B Quantity: 2
- O-Ring C Number/Desc: [38635] / Orifice Tube
- O-Ring C Quantity: 1
- Outlet Fitting Outside Diameter: No. 10
- UPC: 096361541771
- Width: 10.541; 10.546875
- Part Description: 1999 Mazda B3000 A C Evaporator Core
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: w/ Wheel
- Cage Wheel Included: w/ Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Metal
- Motor Diameter: 3.250
- Motor Length: 4.500
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CW
- Shaft Diameter: 0.3125
- Shaft Length: 1.3125
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- UPC: 096361758919
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: 6.000
- Wheel Height IN: 3.000
- Part Description: 1999 Mazda B3000 Hvac Blower Motor With Wheel
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: w/o Wheel
- Cage Wheel Included: w/o Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Metal
- Motor Dia. MM: 82.550
- Motor Diameter: 3.250
- Motor Length: 4.4375
- Motor Length MM: 112.725
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CW
- Shaft Diameter: 0.3125
- Shaft Length: 1.250
- Shaft Shape: D-Shaped
- Shaft Type: D-Shaped
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- UPC: 096361353916
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: Yes
- Part Description: 1999 Mazda B3000 Hvac Blower Motor Without Wheel
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: Incls: Accumulator, Orifice Tube Kit, Compressor Oil, Necessary O-Rings & Gaskets Kit
- Compressor Oil Included: Yes
- Compressor Oil Type: PAG Oil / 46
- Gasket or Seal Included: Yes
- Kit Includes: Accumulator, Orifice Tube Kit, Compressor Oil, O-Ring Kit
- Receiver Drier/Accumulator Diameter IN: 3.500
- Receiver Drier/Accumulator Inlet Fitting Size IN: 0.625
- Receiver Drier/Accumulator Inlet Fitting Size MM: 15.875
- Receiver Drier/Accumulator Inlet Fitting Type: Male Insert O-Ring
- Receiver Drier/Accumulator Length IN: 9.500
- Receiver Drier/Accumulator Outlet Fitting Size IN: 0.750
- Receiver Drier/Accumulator Outlet Fitting Size MM: 19.050
- Receiver Drier/Accumulator Outlet Fitting Type: Female Springlock
- UPC: 096361119529
- Part Description: 1999 Mazda B3000 A C Accumulator Kit
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: w/o Orifice Tube
- Bracket: w/o Bracket
- Gasket or Seal Included: Included
- Liquid Line MM: 0.500
- O-Ring A Number/Desc: [24668] / Green O-Ring
- O-Ring A Quantity: 3
- O-Ring B Number/Desc: [24628] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24218] / Spring
- O-Ring C Quantity: 1
- O.E. Replacement: Yes
- Orifice Tube: w/ Orifice Tube
- Refrigerant Type: R134a
- Service Port: w/o Service Port
- Style: Liquid Line Hose Assembly w/o Orifice Tube
- Suction End Type: Male Springlock
- Switch Service Port: w/o Switch Port
- System Pressure: High Pressure
- UPC: 096361565753
- Part Description: 1999 Mazda B3000 A C Liquid Line Hose Assembly
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: High Pressure AC System Mounted Cut-Out Switch;High Pressure AC System Mounted
- Color: Black
- Comp Open/Closed: Closed
- Connector Gender: Female
- Connector Shape: Round
- Fitting Gender: Female
- Fitting Thread Size: M10 x 1.25
- Harness Connector: [37235] / Harness Connector
- Item Included A Desc: 24606
- Item Included A Qty.: 1
- Material: Steel
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System Mounted
- Number of Terminals: 2
- Off Pressure: 430
- Operate Psi High Off: 430
- Operate Psi High On: 285
- Style: High Cut-Out
- Terminal Type: Pin
- UPC: 096361209169
- Voltage: 12
- Weather Pack: Yes
- Part Description: 1999 Mazda B3000 Hvac Pressure Switch
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Connector Shape: Oval
- Gender: Male
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 2
- UPC: 096361010871
- Part Description: 1999 Mazda B3000 Harness Connector
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: w/ 2-Port Valve
- Hose Connector Quantity: 2 Connectors
- Material: Plastic
- O.E. Replacement: Yes
- Opening B IN: 0.625
- Opening B MM: 15.875
- Opening IN: 0.625
- Opening MM: 15.875
- Operation Type: Vacuum
- Style: Non-Bypass
- UPC: 096361748590
- Part Description: 1999 Mazda B3000 Hvac Heater Control Valve
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Body Diameter: 3.500
- Body Length: 9.500
- Dia. MM: 88.900
- Inlet Fitting Diameter: 5/8
- Inlet Fitting Type: Male Insert O-Ring
- Inlet IN: 0.625
- Inlet MM: 15.875
- Length MM: 241.300
- Material: Steel
- Meets / Exceeds OEM: Yes
- Mounting Hardware: Hardware not included.
- O-Ring A Number/Desc: [24222] / Spring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24672] / Green O-Ring
- O-Ring B Quantity: 3
- O-Ring C Number/Desc: [24610] / Green O-Ring
- O-Ring C Quantity: 1
- O-Ring D Number/Desc: [24650] / Green O-Ring
- O-Ring D Quantity: 1
- O-Ring E Number/Desc: [24676] / Green O-Ring
- O-Ring E Quantity: 1
- Outlet Fitting Diameter: 0.750
- Outlet Fitting Type: Female Springlock
- Outlet Fraction: 3/4
- Outlet MM: 19.050
- Style: Complete Unit
- Switch: w/ Switch Port
- Switch Port Dia. IN: 0.472
- Switch Port Dia.MM: 12.000
- Switch Service Port: w/ Service Port
- UPC: 096361830141
- Part Description: 1999 Mazda B3000 A C Accumulator
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Attachment Type: Retainer Clip
- Hub Offset: 1.5625
- Hub Offset MM: 39.6875
- Material: Plastic
- New or Reman: New
- O.E. Replacement: Yes
- Offset: 1.5625
- Rotation: CW
- Set Screw Attached: No
- Shaft Diameter: 0.3125
- Shaft Shape: D-Shaped
- Style: Standard Rotation Blower Motor Wheel
- UPC: 096361356177
- Vented: No
- Wheel: Yes
- Wheel Dia. MM: 152.400
- Wheel Diameter: 6.000
- Wheel Height MM: 76.200
- Wheel Width: 3.000
- Part Description: 1999 Mazda B3000 Hvac Blower Motor Wheel
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: Caps and Valve Core Seal Kit
- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267800
- Valve Core Material: Specific
- Part Description: 1999 Mazda B3000 A C System Valve Core And Cap Kit
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: w/ 4-Port Valve
- Bypass: Yes
- Hose Connector Quantity: 4 Connectors
- Material: Plastic
- O.E. Replacement: Yes
- Opening B IN: 0.625
- Opening B MM: 15.875
- Opening C IN: 0.625
- Opening C MM: 15.875
- Opening D IN: 0.625
- Opening D MM: 15.875
- Opening IN: 0.625
- Opening MM: 15.875
- Operation Type: Modulated; Vacuum
- Style: Bypass
- UPC: 096361748095
- Part Description: 1999 Mazda B3000 Hvac Heater Control Valve
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Connector Shape: Rectangle
- Connector Type: Pin
- Gender: Male
- Printed Foot Note: Connector for Ford Blower Motors and Radiator Fan Motors
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 2
- UPC: 096361372290
- Part Description: 1999 Mazda B3000 Cooling Fan Motor Relay Connector
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: Pressure Switch Connector;AC System Mounted High Pressure Cut-Out Switch Connector
- Connector Shape: Round
- Gender: Male
- Printed Foot Note: Harness Connector
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 4
- UPC: 096361372351
- Part Description: 1999 Mazda B3000 A C Compressor Cut Out Switch Harness Connector
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: Optional Auto Adjusting Orifice Tube For Severe Climates Over 105 Degrees
- Color: White
- Pack in Qty of: 1
- Style: AAOT
- UPC: 096361389045
- Part Description: 1999 Mazda B3000 A C Orifice Tube
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Connector Pin Qty: 5
- Connector Shape: Other design
- Gender: Female
- Printed Foot Note: Harness Connector for Bosch Relays 4 or 5
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 5
- UPC: 096361372108
- Wire Length IN: 6.000
- Part Description: 1999 Mazda B3000 A C Clutch Control Relay Harness Connector
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: Standard
- Connector Shape: Other design
- Gender: Male
- Style: Harness Connector Adapter
- Terminal Gender: Female
- Terminal Quantity: 3
- UPC: 096361372627
- Part Description: 1999 Mazda B3000 Hvac Blower Motor Resistor Connector
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: Harness Connector-Repair; High Temperature Connector;High Temperature
- Connector Shape: Other design
- Gender: Female
- Style: High Temperature Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 4
- UPC: 096361093829
- Part Description: 1999 Mazda B3000 Hvac Blower Motor Resistor Harness Connector
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Green Rubber O-Rings, Metal spring O-Ring
- Style: O-Ring & Gasket Kit
- UPC: 096361267220
- Part Description: 1999 Mazda B3000 A C System O Ring And Gasket Kit
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
Product Specifications- Notes: Optional Auto Adjusting Orifice Tube For Normal Climates Under 105 Degrees
- Color: Red
- Pack in Qty of: 1
- Style: AAOT
- UPC: 096361389021
- Part Description: 1999 Mazda B3000 A C Orifice Tube
More Info Vehicle Fitment- 1999 Mazda B3000 | All Trims | All Engines
