Notes: Engine Family Number WTKXT03.02DM;Engine Family Number WTKXT03.02B2;CARB Executive Order D-193-103;Certification Level : TIER1; OE Spec; Cutting & Welding Reqd During Installation;Certification Level : TLEV; OE Spec; Cutting & Welding Reqd During Installation
Air Tube: No
Body Type: Clam Shell
Catalytic Converter Body Length: 9"
Catalytic Converter Body Shape: Oval
Catalytic Converter Format: Pre-Catalytic Converter and Main Catalytic Converter
Catalytic Converter Overall Length: 13"
Catalytic Converter Oxygen Sensor Location: None
Catalytic Converter Substrate Material: Ceramic
Catalytic Converter Width: 5.5"
Catalytic Inlet Diameter: 2"
Catalytic Outlet Diameter: 2"
Catalytic Series: OBDII
Converter Body Material: Stainless Steel
Converter Configuration: Universal Fit
Inlet Connection Type: Weld-On
Inlet Position: Center
Installation Complexity: Professional Installation Recommended
Main Piping Diameter: 2"
O2 Sensor Port: No
Outlet Connection Type: Weld-On
Outlet Position: Center
Position: Front Passenger Side
UPC: 841380082022

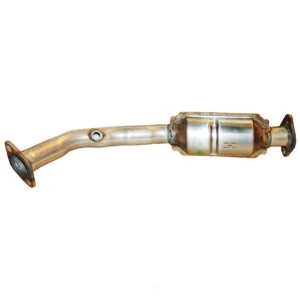

Part Description: 1998 Mazda MPV Universal Catalytic Converter
