Notes: CARB Executive Order D-193-136;Engine Family Number WGMXA05.7185;Engine Family Number WGMXA05.7186;Certification Level : LEV1 LEV; Dual Inlet Muffler
Body Type: Spun
Clamp Included: Yes
Color/Finish: Stainless Steel
Material: Stainless Steel
Mounting Hardware Included: Yes
Series: California
Title: California Direct-Fit
Type: Direct-Fit
UPC: 888563103839
Part Description: 1998 GMC Yukon Direct Fit Catalytic Converter
Notes: Not legal for use in Calif; Illegal for installation in NY on vehicles equipped w/Calif emission systems; This part is available split & must be welded or clamped together, order left & right Assy; Dual Outlet
Gaskets Included: Yes
Height: 17.75 in.
Inlet 1 Gsk.: 24315
Inlet 1 Type: 3 Bolt Loose Flange
Inlet 2 Gsk.: 24236
Inlet 2 Type: 3 Bolt Loose Flange
Large Pkg. Fee: Yes
Outlet Type: 3 Bolt Dual Outlet Fixed Flange
Over All Length: 37.5 in.
UPC: 841809107275
Use Davico Decarbonizing Induction Kit 1540ea: Yes
Width: 30.75 in.

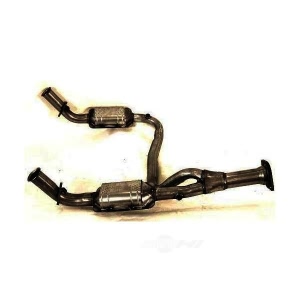

Part Description: 1998 GMC Yukon Direct Fit Catalytic Converter and Pipe Assembly
Notes: Not legal for use in Calif; Illegal for installation in NY on vehicles equipped w/Calif emission systems; OE system is a welded Assy, left & right Assy Reqd for full replacement; under 8500 GVW
Height: 13 in.
Inlet 1 Gsk.: EG24236
Inlet 1 Type: 3 Bolt Loose Flange
Large Pkg. Fee: Yes
Number of O2 Sensors: 2
Outlet 1 Gsk.: Not Required
Outlet 1 Type: Slide On Connection
Over All Length: 58 in.
UPC: 841809107282
Use Davico Decarbonizing Induction Kit 1540ea: Yes
Width: 33 in.
Part Description: 1998 GMC Yukon Direct Fit Catalytic Converter and Pipe Assembly
Notes: CARB Executive Order D-193-136;Engine Family Number WGMXA05.7185;Engine Family Number WGMXA05.7186;Certification Level : LEV1 LEV; OE Spec; Cutting & Welding Reqd During Installation; Single Inlet Muffler
Air Tube Adaptable: No
Body Height: 4
Body Length: 13
Body Shape: Round
Body Type: Spun
Body Width: 4
Finish: Stainless Steel
Heat Shield Attached: No
Inlet Attachment: Weld-On
Inlet Diameter: 2.5
Inlet Orientation: Straight
Inlet Quantity: 1
Material: Stainless Steel
Outlet Attachment: Weld-On
Outlet Diameter: 2.5
Outlet Orientation: Straight
Outlet Quantity: 1
Overall Length: 13
Sensor Port Count: 0
Series: California
Substrate Material: Ceramic
Title: California Universal
UPC: 888563103938
Part Description: 1998 GMC Yukon Universal Catalytic Converter - 2.50in.
Notes: Not legal for use in Calif; Illegal for installation in NY on vehicles equipped w/Calif emission systems; OE system is a welded Assy, left & right Assy Reqd for full replacement; under 8500 GVW
Catalytic Converter Body Height: 12"
Catalytic Converter Overall Length: 37.75"
Catalytic Converter Width: 13"
Converter Configuration: Direct Fit
Inlet Type A: 3 Bolt Loose Flange
O2 Sensor Port: Yes
Outlet Type A: 6 Bolt Fixed Flange
Position: Passenger Side
Part Description: 1998 GMC Yukon Direct Fit Catalytic Converter and Pipe Assembly
