Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 22 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 93.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 15.0
Resistance Ohms Full: 160.0
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 7
Terminal Type: Pin
UPC: 689604201374
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

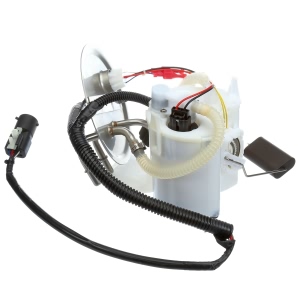

Part Description: 1997 Mercury Sable Fuel Pump Module Assembly
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 7
Flow Rating: 26 gph
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 65.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Type: Hose
Pump Type: Electric
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604076064
Voltage: 12.0 VDC
Wiring Harness Included: Yes
Part Description: 1997 Mercury Sable Fuel Pump And Strainer Set
Notes: with 18 Gallon Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 23 gph
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 85.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Type: Hose
Pump Type: Electric
Strainer Included: Yes
System Pressure: 45 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604120422
Voltage: 12.0 VDC
Wiring Harness Included: Yes
Part Description: 1997 Mercury Sable Fuel Pump And Strainer Set
Notes: with 16 Gal Fuel Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 27 gph
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Item Grade: Standard Replacement
Maximum Pressure: 87.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Type: Hose Bead
Pump Type: Electric
Strainer Included: No
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604215197
Voltage: 12 VDC
Wiring Harness Included: No

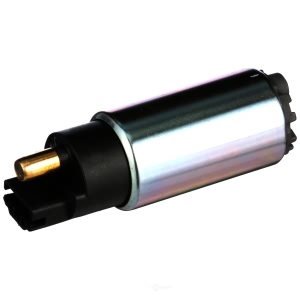

Part Description: 1997 Mercury Sable In Tank Electric Fuel Pump
Notes: with Electric Fuel Pump;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Item Grade: Standard Replacement
Micron Rating: 60
Strainer Material: Polyester
UPC: 689604062685
Part Description: 1997 Mercury Sable Fuel Pump Strainer
