1996 Chrysler New Yorker
Dorman® OE Solutions Inner Cv Joint Boot Kit for 1996 Chrysler New Yorker
PartNumber: 614-002Product Specifications- Notes: Uni-Fit; Joint Dia 3.3"
- Boot Color: Grey
- Grease Type: Non-synthetic
- Joint End Inside Diameter: 3.3"
- Material: Silicone
- Package Quantity: 1
- Packaging Type: Box
- Rib Quantity: 6
- Shaft End Inside Diameter: 0.87"
- Split Or Solid Type: Solid
- UPC: 019495615323
- Vented Boot: No
- Part Description: OE Solutions Inner Cv Joint Boot Kit
$26.21

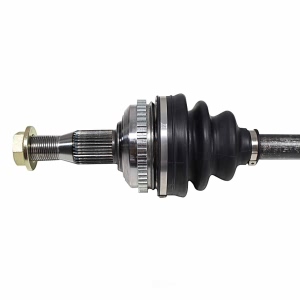

Cardone Reman® Remanufactured CV Axle Assembly for 1996 Chrysler New Yorker
PartNumber: 60-3188Product Specifications- ABS Ring Included: Yes
- ABS Ring Tooth Count: 50
- Axle Nut Locking Type: Self Lock
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 27
- Length: 21 1/8"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 33
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 34mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M27 x 2.0
- Part Description: Remanufactured CV Axle Assembly
$62.97
SKF® Rear Axle Shaft Bearing Kit for 1996 Chrysler New Yorker
PartNumber: BR36Product Specifications- Cone ID: 1.781"
- Cone Length: 0.781"
- Cone Radius: 0.14"
- Cup Length: 0.656"
- Cup Radius: 0.03"
- OE Part Number: ZZL127305, 9759BR36, BTC9001, 9739NO36SET, ZZL127307, 4864213, 5R3Z4220AA, 5135660AB
- Outside Diameter: 3.062"
- UPC: 085311068826
- Width: 0.843"
- Part Description: Rear Axle Shaft Bearing Kit
$14.75
National® Front Outer Differential Pinion Bearing for 1996 Chrysler New Yorker
PartNumber: M802048Product Specifications- Notes: w/Chrysler 42LE Trans
- UPC: 724956020683
- Part Description: Front Outer Differential Pinion Bearing
$16.67
Dorman® OE Solutions Front Outer Cv Joint Boot Kit for 1996 Chrysler New Yorker
PartNumber: 614-003Product Specifications- Notes: Uni-Fit; Joint Dia 3.44"
- Boot Color: Black
- Boot Material: Neoprene
- Joint End Inside Diameter: 4"
- Package Contents: 1 CV Joint Boot; 1 CV Joint Grease Pack; 2 Clamps
- Package Quantity: 1
- Packaging Type: Box
- Rib Quantity: 6
- Shaft End Inside Diameter: 0.98"
- Split Or Solid Type: Solid
- UPC: 019495800798
- Vented Boot: No
- Part Description: OE Solutions Front Outer Cv Joint Boot Kit
$21.49
SKF® Rear Axle Shaft Bearing Race for 1996 Chrysler New Yorker
PartNumber: LM603012Product Specifications- Cup Length: 0.656"
- Cup Radius: 0.030"
- OE Part Number: Y-603012, 3172566, 9759LM603012, D9AW4222AA, D9AZ4222A, 3723569
- Outside Diameter: 3.063"
- UPC: 085311057226
- Width: 0.843"
- Part Description: Rear Axle Shaft Bearing Race
$7.13
Cardone Reman® Remanufactured CV Axle Assembly for 1996 Chrysler New Yorker
PartNumber: 60-3190Product Specifications- ABS Ring Included: Yes
- ABS Ring Tooth Count: 50
- Axle Nut Locking Type: Self Lock
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 27
- Length: 27 1/4"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 33
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 34mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M27 x 2.0
- Part Description: Remanufactured CV Axle Assembly
$63.06
National® Automatic Transmission Transfer Shaft Race for 1996 Chrysler New Yorker
PartNumber: M802011Product Specifications- Notes: w/Chrysler 42LE Trans
- Cup Bore: 3.2500" / 82.55 mm
- Cup Length: 0.7950" / 20.193 mm
- Cup Radius: 0.1250" / 3,175 mm
- Part Description: Automatic Transmission Transfer Shaft Race
$9.03
OEM (Genuine) 1996 Chrysler New Yorker Original Hub Bearing
PartNumber: 4582220
Product Specifications- Notes: All Models
- Other Names: Hub & Bearing, Hub & Bearing Assembly
- Item Dimensions: 6.8 x 6.8 x 3.4 inches
- Item Weight: 4.40 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 4779011
- Part Description: Original Hub Bearing
$176.40 MSRP:$199.00You Save: $22.60 (12%)
National® Differential Bearing with Cup and Cone for 1996 Chrysler New Yorker
PartNumber: A-36Product Specifications- Notes: Taper Bearing Set Incls Cup & Cone; w/Chrysler 42LE Trans
- Cone Bore: 1.7812" / 45.242 mm
- Cone Length: 0.7812" / 19.842 mm
- Cone Radius: 0.1400" / 3.5560 mm
- Cup Bore: 3.0625" / 77.788 mm
- Cup Length: 0.6562" / 16.667 mm
- Cup Radius: 0.0310" / 0,787 mm
- Standout: 0.0188" / 0,478 mm
- Taper Bearing Cone: LM603049
- Taper Bearing Cup: LM603012
- Width: 0.8437" / 21.43 mm
- Part Description: Differential Bearing with Cup and Cone
$17.50
FAG® Differential Bearing for 1996 Chrysler New Yorker
PartNumber: 401089Product Specifications- Notes: FAG Global# 401089
- Bearing Inside Diameter: 1.781; 45.242
- Length: 0.781; 19.842
- UPC: 670774290602
- Part Description: Differential Bearing
OEM (Genuine) 1996 Chrysler New Yorker Wheel Bearing Kit Compatible
PartNumber: 4593450AA
Product Specifications- Notes: All Models
- Location: Driver Side; Passenger Side
- Item Dimensions: 7.4 x 7.3 x 6.4 inches
- Item Weight: 9.10 Pounds
- Fitment Type: Direct Replacement
- Replaces: 4593003AB
- Part Description: Wheel Bearing Kit Compatible
OEM (Genuine) 1996 Chrysler New Yorker *Boot-HALFSHAFT
PartNumber: 4728261
Product Specifications- Notes: All Models; Left
- Location: Driver Side
- Other Names: Inner Boot
- Item Dimensions: 6.8 x 6.5 x 6.4 inches
- Item Weight: 1.30 Pounds
- Fitment Type: Direct Replacement
- Part Description: *Boot-HALFSHAFT
GSP North America® Front Driver Side CV Axle Assembly for 1996 Chrysler New Yorker
PartNumber: NCV12551Product Specifications- Notes: TLEV Spec;Exc.TLEV Spec;LH Body (Tooth Style ABS Ring)
- ABS Count: 50
- ABS Style: Teeth
- IBJ Spline Count: 27
- IBJ Type: Female
- Length: 27 1/2"
- OBJ Spline Count: 33
- UPC: 883331125518
- Part Description: Front Driver Side CV Axle Assembly
OEM (Genuine) 1996 Chrysler New Yorker Boot-Half Shaft
PartNumber: 4728262
Product Specifications- Notes: All Models; Right
- Location: Passenger Side
- Other Names: Inner Boot
- Item Dimensions: 7.5 x 7.3 x 6.6 inches
- Item Weight: 2.70 Pounds
- Fitment Type: Direct Replacement
- Part Description: Boot-Half Shaft
GSP North America® Front Passenger Side CV Axle Assembly for 1996 Chrysler New Yorker
PartNumber: NCV12552Product Specifications- Notes: TLEV Spec;Exc.TLEV Spec;LH Body (Tooth Style ABS Ring)
- ABS Count: 50
- ABS Style: Teeth
- IBJ Spline Count: 27
- IBJ Type: Female
- Length: 21 1/8"
- OBJ Spline Count: 33
- UPC: 883331125525
- Part Description: Front Passenger Side CV Axle Assembly
OEM (Genuine) 1996 Chrysler New Yorker Axle Shaft
PartNumber: 4798095Product Specifications- Notes: W/O ABS, W/O Transitory Emis;W/O ABS, W/Transitory Emissi; All Models; W/O ABS; Left
- Location: Driver Side
- Part Description: Axle Shaft
OEM (Genuine) 1996 Chrysler New Yorker Driveshaft
PartNumber: 4798095Product Specifications- Notes: W/O ABS, W/O Transitory Emis;W/O ABS, W/Transitory Emissi; All Models; W/O ABS; Left
- Location: Driver Side
- Part Description: Driveshaft
OEM (Genuine) 1996 Chrysler New Yorker Axle Half Shaft
PartNumber: 4798096Product Specifications- Notes: W/O ABS, W/O Transitory Emis; All Models; W/O ABS; Right
- Location: Passenger Side
- Other Names: Axle Assembly
- Item Weight: 18.00 Pounds
- Fitment Type: Direct Replacement
- Part Description: Axle Half Shaft
OEM (Genuine) 1996 Chrysler New Yorker Axle Half Shaft
PartNumber: 4798096Product Specifications- Notes: W/O ABS, W/O Transitory Emis; All Models; W/O ABS; Right
- Location: Passenger Side
- Other Names: Axle Assembly
- Item Weight: 18.00 Pounds
- Fitment Type: Direct Replacement
- Part Description: Axle Half Shaft
OEM (Genuine) 1996 Chrysler New Yorker Front Drive Shaft Assembly
PartNumber: 4798777Product Specifications- Notes: W/ABS, W/Transitory Emissi;W/O ABS, W/Transitory Emissi
- Location: Passenger Side
- Other Names: Axle Assembly
- Item Dimensions: 25.7 x 6.0 x 6.1 inches
- Item Weight: 16.00 Pounds
- Fitment Type: Direct Replacement
- Part Description: Front Drive Shaft Assembly
OEM (Genuine) 1996 Chrysler New Yorker Front Drive Shaft Assembly
PartNumber: 4798777Product Specifications- Notes: W/ABS, W/Transitory Emissi;W/O ABS, W/Transitory Emissi
- Location: Passenger Side
- Other Names: Axle Assembly
- Item Dimensions: 25.7 x 6.0 x 6.1 inches
- Item Weight: 16.00 Pounds
- Fitment Type: Direct Replacement
- Part Description: Front Drive Shaft Assembly
OEM (Genuine) 1996 Chrysler New Yorker Boot-Half Shaft
PartNumber: 4863722
Product Specifications- Notes: All Models
- Location: Driver Side; Passenger Side
- Other Names: Boot Kit, Boots, Outer Boot
- Item Dimensions: 6.9 x 7.0 x 6.4 inches
- Item Weight: 1.20 Pounds
- Fitment Type: Direct Replacement
- Part Description: Boot-Half Shaft
OEM (Genuine) 1996 Chrysler New Yorker Cv Axle Shaft Assembly
PartNumber: R2073759ACProduct Specifications- Notes: W/ABS, W/O Transitory Emis;W/ABS, W/Transitory Emissi; All Models; W/ABS; Left
- Location: Driver Side
- Other Names: Axle Assembly
- Item Dimensions: 32.0 x 5.7 x 5.6 inches
- Item Weight: 17.70 Pounds
- Fitment Type: Direct Replacement
- Replaces: R2073759AB
- Part Description: Cv Axle Shaft Assembly
OEM (Genuine) 1996 Chrysler New Yorker Cv Axle Shaft Assembly
PartNumber: R2073759ACProduct Specifications- Notes: W/ABS, W/O Transitory Emis;W/ABS, W/Transitory Emissi; All Models; W/ABS; Left
- Location: Driver Side
- Other Names: Axle Assembly
- Item Dimensions: 32.0 x 5.7 x 5.6 inches
- Item Weight: 17.70 Pounds
- Fitment Type: Direct Replacement
- Replaces: R2073759AB
- Part Description: Cv Axle Shaft Assembly
OEM (Genuine) 1996 Chrysler New Yorker Cv Axle Shaft Assembly
PartNumber: R2073769ACProduct Specifications- Notes: W/ABS, W/O Transitory Emis; All Models; W/ABS; Right
- Location: Passenger Side
- Other Names: Axle Assembly
- Item Dimensions: 34.1 x 5.4 x 5.7 inches
- Item Weight: 16.90 Pounds
- Fitment Type: Direct Replacement
- Replaces: R2073769AB
- Part Description: Cv Axle Shaft Assembly
OEM (Genuine) 1996 Chrysler New Yorker Cv Axle Shaft Assembly
PartNumber: R2073769ACProduct Specifications- Notes: W/ABS, W/O Transitory Emis; All Models; W/ABS; Right
- Location: Passenger Side
- Other Names: Axle Assembly
- Item Dimensions: 34.1 x 5.4 x 5.7 inches
- Item Weight: 16.90 Pounds
- Fitment Type: Direct Replacement
- Replaces: R2073769AB
- Part Description: Cv Axle Shaft Assembly
