1994 Suzuki Samurai

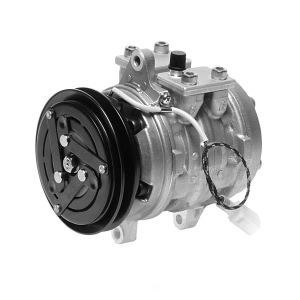

Denso® Remanufactured A/C Compressor with Clutch for 1994 Suzuki Samurai
PartNumber: 471-0294Product Specifications- Notes: R12
- Clutch Maximum Diameter: 115.0 mm
- Compressor Mount Hole Quantity: 3
- Mounting Type: Three Ear Mount
- OE Part Number: 9520083080, 9523082115, 9523083000, 9523082116
- Pulley Belt Type: V-Belt
- Refrigerant Type: R12
- UPC: 042511162785
- Part Description: Remanufactured A/C Compressor with Clutch
$228.42
Gates® Engine Coolant Molded Bypass Hose for 1994 Suzuki Samurai
PartNumber: 28410Product Specifications- Notes: Cut to Length, 20";Cut to Length, 10"
- Centerline Length (in): 600"
- Inside Diameter 1 (in): 0.5"
- OE Part Number: 8989
- UPC: 072053066302
- Weight Per Length: 8.25 lbs./Carton
- Working Pressure (psi): 60
- Part Description: Engine Coolant Molded Bypass Hose
$52.80

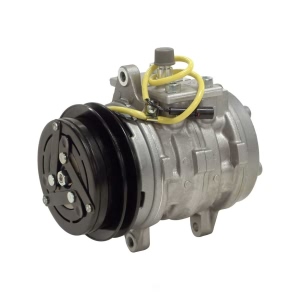

Four Seasons® A C Compressor With Clutch for 1994 Suzuki Samurai
PartNumber: 78311Product Specifications- Notes: w/ 10P08E Compressor; New w/ Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10P08E
- Discharge Port Type: Pad Mount
- Distance From Clutch To Mounting Flange: 1.40625
- Mount Distance MM: 35.560
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: New
- O-Ring A Number/Desc: [24613] / Green O-Ring
- O-Ring A Quantity: 4
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 101.600
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 4.000
- Pulley Outside Diameter: 4.000
- Pulley Ridge Diameter: 4.000
- Refrigerant Type: R134a
- Suction Port Type: Pad Mount
- Terminal Type: Spade
- UPC: 096361783119
- Part Description: A C Compressor With Clutch
$275.09
Denso® A/C Expansion Valve for 1994 Suzuki Samurai
PartNumber: 475-0509Product Specifications- Notes: R134A; DENSO is the OE supplier for this vehicle; OE-specified O-rings Incld.
- OE Part Number: 8851534010, 9543167A50, 8851504020, 9543150G00, 8851550090
- Type: Angle valve
- UPC: 042511072688
- Part Description: A/C Expansion Valve
$17.69
Spectra Premium® A/C Accumulator for 1994 Suzuki Samurai
PartNumber: 0233592Product Specifications- Notes: R134a
- UPC: 671607183795
- Part Description: A/C Accumulator
$11.08
Gates® Safety Stripe Hvac Heater Hose for 1994 Suzuki Samurai
PartNumber: 28407Product Specifications- Notes: Cut to Length, 10"
- Centerline Length (in): 600"
- Inside Diameter 1 (in): 0.25"
- OE Part Number: 34580
- UPC: 072053133219
- Weight Per Length: 6 lbs./Carton
- Working Pressure (psi): 60
- Part Description: Safety Stripe Hvac Heater Hose
$31.48
Four Seasons® Hvac Blower Motor Without Wheel for 1994 Suzuki Samurai
PartNumber: 35484Product Specifications- Notes: w/o Wheel
- Cage Wheel Included: w/o Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Metal
- Motor Diameter: 3.000
- Motor Length: 3.875
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CW/CCW
- Shaft Diameter: 0.268
- Shaft Length: 1.9375
- Shaft Shape: Round
- Shaft Type: Round
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- UPC: 096361354845
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: Yes
- Part Description: Hvac Blower Motor Without Wheel
$71.17

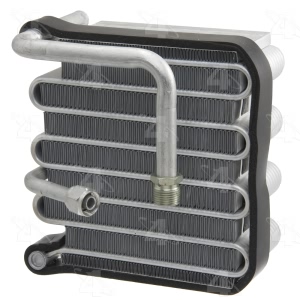

Four Seasons® A C Evaporator Core for 1994 Suzuki Samurai
PartNumber: 54182Product Specifications- Core Depth Fraction: 3-1/4
- Core Depth MM: 82.550
- Core Height Fraction: 7-3/4
- Core Height MM: 196.850
- Core Width Fraction: 8-1/8
- Core Width MM: 206.375
- Depth: 3.25; 3.250
- Height: 7.750
- Inlet Fitting Outside Diameter: No. 8
- Material: Aluminum
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- Outlet Fitting Outside Diameter: No. 10
- UPC: 096361541825
- Width: 8.125
- Part Description: A C Evaporator Core
$60.85
Gates® 90 Degree Engine Heater Molded Bypass Hose for 1994 Suzuki Samurai
PartNumber: 28461Product Specifications- Notes: Cut to fit
- Angle: 90
- Arm Length 1 (in): 4"
- Arm Length 2 (in): 12"
- Centerline Length (in): 16"
- Inside Diameter 1 (in): 0.5"
- OE Part Number: 9002
- UPC: 072053061956
- Part Description: 90 Degree Engine Heater Molded Bypass Hose
$11.21

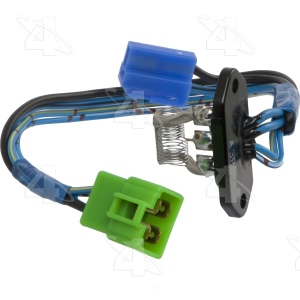

Four Seasons® Hvac Blower Motor Resistor for 1994 Suzuki Samurai
PartNumber: 20199Product Specifications- Connector Gender: Female / Male
- Connector Shape: Other design
- Meets / Exceeds OEM: Yes
- Number of Terminals: 6
- Speed: Fixed # 3
- Terminal Type: Spade / Wire Lead
- UPC: 096361201996
- Part Description: Hvac Blower Motor Resistor
$23.86
Gates® Engine Coolant Molded Bypass Hose for 1994 Suzuki Samurai
PartNumber: 18010Product Specifications- Notes: Cut to fit
- Centerline Length (in): 9.6"
- Inside Diameter 1 (in): 0.25"
- Number of Branches: 0
- OE Part Number: 1785
- UPC: 072053178005
- Part Description: Engine Coolant Molded Bypass Hose
$9.42
Four Seasons® A C Clutch Control Relay Harness Connector for 1994 Suzuki Samurai
PartNumber: 37257Product Specifications- Connector Shape: Rectangle
- Gender: Male
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 4
- UPC: 096361372573
- Part Description: A C Clutch Control Relay Harness Connector
$16.39
Four Seasons® A C Expansion Valve for 1994 Suzuki Samurai
PartNumber: 39173Product Specifications- Color: Brass
- Refrigerant Type: R134A
- UPC: 096361391734
- Part Description: A C Expansion Valve
$13.39
Four Seasons® A C Receiver Drier for 1994 Suzuki Samurai
PartNumber: 33592Product Specifications- Body Diameter: 2.500
- Body Length: 6.500
- Bracket: w/o Bracket
- Connector B Type: Pad Mount
- Connector Type: Pad Mount
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Dia. MM: 63.500
- Fuse Plug: No
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Pad Mount
- Inlet Filter Fitting Type: Pad Mount
- Inlet Fitting Diameter: .402
- Inlet Fitting Type: Pad Mount
- Inlet Fraction: 3/8
- Inlet MM: 10.000
- Length MM: 165.100
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Moisture Indicator Window: No
- Mounting Bracket Included: Hardware not included
- New or Reman: New
- O-Ring A Number/Desc: [24611] / Green O-Ring
- Outlet Fitting Type: Pad Mount
- Outlet Fraction: 3/8
- Outlet IN: .402
- Outlet MM: 10.000
- Overall Depth IN: 6.500
- Overall Depth MM: 165.000
- P. R. V.: No
- Pad Mount: w/ Pad Mount
- Service Port: w/o Service Port
- Sight Glass: No
- Stud: No
- Style: Aluminum Filter Drier w/ Pad Mount
- Switch Port: w/o Switch Port
- UPC: 096361335929
- Part Description: A C Receiver Drier
$12.46
Four Seasons® A C System Valve Core And Cap Kit for 1994 Suzuki Samurai
PartNumber: 26783Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ JRA Valves
- Cap Color: Red, Blue
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267831
- Valve Core Material: Specific
- Part Description: A C System Valve Core And Cap Kit
$10.86
Four Seasons® A C System O Ring And Gasket Kit for 1994 Suzuki Samurai
PartNumber: 26834Product Specifications- Notes: O-Ring & Gasket Seal Kit; Factory Air
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361070738
- Part Description: A C System O Ring And Gasket Kit
$7.99
Spectra Premium® A/C Accumulator for 1994 Suzuki Samurai
PartNumber: 0233237Product Specifications- Notes: R12
- UPC: 671607161465
- Part Description: A/C Accumulator
Denso® A/C Compressor for 1994 Suzuki Samurai
PartNumber: 471-0389Product Specifications- Notes: R134A
- Clutch Maximum Diameter: 115.0
- Compressor Mount Hole Quantity: 3
- Mounting Type: Three Ear Mount
- New or Remanufactured: Remanufactured
- Pulley Belt Type: V-Belt
- Refrigerant Type: R134A
- UPC: 042511096301
- Part Description: A/C Compressor
Denso® A/C Expansion Valve for 1994 Suzuki Samurai
PartNumber: 475-0101Product Specifications- Notes: R12; DENSO is the OE supplier for this vehicle; OE-specified O-rings Incld.
- OE Part Number: 9535082000, 9545060A50, B11161J14, MB298891, 9543160B10, MB657066, LA0561P14, LA0161J14, 9535183000
- Type: Angle valve
- UPC: 042511075009
- Part Description: A/C Expansion Valve
Denso® A/C Receiver Drier for 1994 Suzuki Samurai
PartNumber: 478-0101Product Specifications- Notes: R12; DENSO is the OE supplier for this vehicle; OE-specified O-rings Incld.
- Body Diameter (mm): 67.00
- Body Length (mm): 193.0000
- Inlet Fitting Type: MALE
- Material: Steel
- OE Part Number: 8847014010, 9533080020, 8847001010, 8847012070
- Outlet Fitting Type: MALE
- Type: Union Nut
- UPC: 042511076006
- Part Description: A/C Receiver Drier
Denso® A/C Receiver Drier for 1994 Suzuki Samurai
PartNumber: 478-0502Product Specifications- Notes: R134a; DENSO is the OE supplier for this vehicle; OE-specified O-rings Incld.
- Body Diameter: 60.00
- Body Length: 167.0000
- Material: Steel
- New or Remanufactured: NEW
- UPC: 042511076099
- Part Description: A/C Receiver Drier
Denso® A/C Receiver Drier for 1994 Suzuki Samurai
PartNumber: 478-2001Product Specifications- Notes: R134a; DENSO is the OE supplier for this vehicle; OE-specified O-rings Incld.
- Body Diameter (mm): 63.500
- Body Length (mm): 165.100
- Inlet Fitting Type: FEMALE
- Material: Aluminum
- OE Part Number: 30012864, 94457314301, 9533071B10
- Outlet Fitting Type: FEMALE
- Type: Block Union
- UPC: 042511221598
- Part Description: A/C Receiver Drier
