Four Seasons® A C Compressor With Clutch for 1994 Jaguar Vanden Plas
PartNumber: 78589Product Specifications- Notes: w/ SD709 Compressor; New w/ Clutch
- Belt Width IN: 0.500
- Belt Width MM: 12.700
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.125
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Comp Head Prt Config: Rear-Horiz-Pad
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Head Type: QS
- Compressor Type: SD709
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.546875
- Mount Distance MM: 39.370
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: New
- O-Ring A Number/Desc: [24615] / Green O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 130.048
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.125
- Pulley Outside Diameter: 5.125
- Pulley Ridge Diameter: 5.125
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Sensor Port
- Terminal Type: Spade
- UPC: 096361785892
- Part Description: A C Compressor With Clutch
$240.91

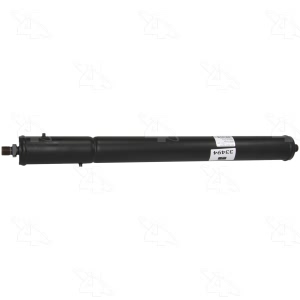

Four Seasons® A C Receiver Drier for 1994 Jaguar Vanden Plas
PartNumber: 33494Product Specifications- Body Diameter: 1.750
- Body Length: 20.500
- Bracket: w/o Bracket
- Connector B Type: Male Insert O-Ring
- Connector Type: Male Insert O-Ring
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Dia. MM: 44.450
- Fuse Plug: No
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Male
- Inlet Filter Fitting Thread Diameter: 0.625
- Inlet Filter Fitting Type: Male
- Inlet Fitting Diameter: 0.375
- Inlet Fitting Type: Male Insert O-Ring
- Inlet Fraction: 3/8
- Inlet IN: 0.375
- Inlet MM: 9.525
- Length MM: 520.700
- Material: Steel
- Meets / Exceeds OEM: Yes
- Moisture Indicator Window: No
- Mounting Bracket Included: Hardware not included
- New or Reman: New
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 2
- Outlet Fitting Type: Male Insert O-Ring
- Outlet Fraction: 3/8
- Outlet IN: 0.375
- Outlet MM: 9.525
- Overall Depth IN: 20.28
- P. R. V.: Yes
- Service Port: w/o Service Port
- Sight Glass: No
- Stud: No
- Style: Steel Filter Drier
- Switch Port: w/o Switch Port
- UPC: 096361334946
- Part Description: A C Receiver Drier
$22.59

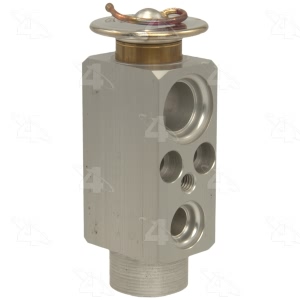

Four Seasons® A C Expansion Valve for 1994 Jaguar Vanden Plas
PartNumber: 38882Product Specifications- Color: Aluminum
- Liquid Inlet Fitting Gender: Female
- Liquid Inlet Fitting Thread Diameter: No. 6
- Liquid Inlet Style: FIO
- Liquid Inlet Type: Insert O-Ring
- Liquid Outlet Fitting Gender: Female
- Liquid Outlet Fitting Thread Diameter: No. 8
- Liquid Outlet Style: FIO
- Liquid Outlet Type: Insert O-Ring
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hole Quantity: 2
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: [24608] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24610] / Green O-Ring
- O-Ring C Quantity: 1
- Refrigerant Type: R134A
- Style: w/o Solenoid
- Suction Inlet Fitting Gender: Female
- Suction Inlet Fitting Thread Diameter: No. 10
- Suction Inlet Style: FIO
- Suction Inlet Type: Insert O-Ring
- Suction Outlet Fitting Gender: Female
- Suction Outlet Fitting Thread Diameter: No. 10
- Suction Outlet Style: FIO
- Suction Outlet Type: Insert O-Ring
- Super Heat: 3.000
- Switch Included: Not Included
- Tonnage: 2.500
- UPC: 096361388826
- Part Description: A C Expansion Valve
$21.32
Four Seasons® A C System Valve Core And Cap Kit for 1994 Jaguar Vanden Plas
PartNumber: 26777Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ R12 or R134a Retrofit System
- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: A C System Valve Core And Cap Kit
$10.69
Four Seasons® A C System O Ring And Gasket Kit for 1994 Jaguar Vanden Plas
PartNumber: 26719Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Green Rubber O-Rings, Metal spring O-Ring
- Style: O-Ring & Gasket Kit
- UPC: 096361267190
- Part Description: A C System O Ring And Gasket Kit
$8.54
Four Seasons® A C Condenser Fan Switch for 1994 Jaguar Vanden Plas
PartNumber: 20893Product Specifications- Notes: Hi-Side Mounted
- Connector Color: White
- Connector Gender: Male
- Connector Shape: Oval; Rectangle
- Fan Open/Closed: Open
- Fitting Gender: Female
- Fitting Thread Size: 7/16 in. x 20
- Item Included A Desc: 24650
- Item Included A Qty.: 1
- Material: Plastic / Metal
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System Mounted
- Operate Psi Med Off: 120
- Operate Psi Med On: 175
- Style: Pressure
- Terminal Quantity: 2
- UPC: 096361208933
- Part Description: A C Condenser Fan Switch
$70.98
