Replacement Parts for 1990 Volkswagen Vanagon Driveline, Axles & 4WD

1990 Volkswagen Vanagon Driveline, Axles & 4WD

My Vehicle Change Vehicle
1990 Volkswagen Vanagon
Change Vehicle
Vehicle Options
We need more information about your vehicle to make a correct determination of fitment
< Back to View All
Engine & Drivetrain

13 products about 1990 Volkswagen Vanagon Driveline, Axles & 4WD found

Show Item:
  • 30
  • 60
  • 90
Sort by:
Recommended
Filter
Sort
View by
  • Cardone Reman Remanufactured CV Axle Assembly for 1990 Volkswagen Vanagon - 60-7077

    Cardone Reman® Remanufactured CV Axle Assembly for 1990 Volkswagen Vanagon

    PartNumber: 60-7077
    Product Specifications
    • ABS Ring Included: No
    • Input Shaft Bolt Count: 6
    • Input Shaft Connection Style: Bolt-On
    • Length: 21 3/8"
    • Output Shaft Bolt Count: 6
    • Output Shaft Connection Style: Bolt-On
    • Product Condition: Remanufactured
    • Spindle Nut Included: No
    • Part Description: 1990 Volkswagen Vanagon Remanufactured CV Axle Assembly
    More Info
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | All Trims | All Engines
    $71.92
  • National Differential Bearing for 1990 Volkswagen Vanagon - 32010-X

    National® Differential Bearing for 1990 Volkswagen Vanagon

    PartNumber: 32010-X
    Product Specifications
    • Notes: w/VW 094 Trans;w/VW 091 Trans;VW 094
    • Bore (Inch): 1.9685
    • Bore (mm): 50.00
    • Cone Length (Inch): 0.7874
    • Cone Length (mm): 20.00
    • Cone Radius (Inch): 0.0591
    • Cone Radius (mm): 1.5000
    • Cup Length (Inch): 0.6102
    • Cup Length (mm): 15.4990
    • Cup Radius (Inch): 0.0200
    • Cup Radius (mm): 0.5080
    • Design: ISO Metric
    • Outside Diameter (Inch): 3.1496
    • Outside Diameter (mm): 80.00
    • Series: 32000
    • Standout (Inch): 0.1772
    • Standout (mm): 4.5000
    • Type: TS
    • UPC: 724956092055
    • Width (Inch): 0.7874
    • Width (mm): 20.00
    • Part Description: 1990 Volkswagen Vanagon Differential Bearing
    More Info
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | All Trims | All Engines
    • 1990 Volkswagen Vanagon | All Trims | 4 Cyl 2.1L
    $31.10
  • National Driveshaft Center Support Bearing for 1990 Volkswagen Vanagon - 207

    National® Driveshaft Center Support Bearing for 1990 Volkswagen Vanagon

    PartNumber: 207
    Product Specifications
    • Bore (Inch): 1.378
    • Bore (mm): 35.00
    • Design: Single Row Radial
    • Inner Race Bore (Inch): 1.378
    • Inner Race Bore (mm): 35.00
    • Inner Race Radius (Inch): 0.040
    • Inner Race Radius (mm): 1.020
    • Inner Race Width (Inch): 0.669
    • Inner Race Width (mm): 17.00
    • Outer Race Outside Diameter (Inch): 2.835
    • Outer Race Outside Diameter (mm): 72.00
    • Outer Race Radius (Inch): 0.040
    • Outer Race Radius (mm): 1.020
    • Outer Race Width (Inch): 0.669
    • Outer Race Width (mm): 17.00
    • Outside Diameter (Inch): 2.835
    • Outside Diameter (mm): 72.00
    • Series: 200
    • Type: A-1
    • Width (Inch): 0.669
    • Width (mm): 17.00
    • Part Description: 1990 Volkswagen Vanagon Driveshaft Center Support Bearing
    More Info
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | All Trims | All Engines
    $21.32
  • Cardone Reman Remanufactured CV Axle Assembly for 1990 Volkswagen Vanagon - 60-7101

    Cardone Reman® Remanufactured CV Axle Assembly for 1990 Volkswagen Vanagon

    PartNumber: 60-7101
    Product Specifications
    • ABS Ring Included: No
    • Axle Nut Locking Type: Self Lock
    • Input Shaft Bolt Count: 6
    • Input Shaft Connection Style: Bolt-On
    • Length: 21 1/2"
    • Output Shaft Connection Style: Spline
    • Output Shaft Spline Count: 22
    • Product Condition: Remanufactured
    • Spindle Nut Hex Head Size: 30mm
    • Spindle Nut Included: Yes
    • Spindle Nut Thread Size: M20 x 1.5
    • Part Description: 1990 Volkswagen Vanagon Remanufactured CV Axle Assembly
    More Info
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | All Trims | All Engines
    $62.69
  • VAICO Rear Passenger Side Outer CV Joint Boot Kit for 1990 Volkswagen Vanagon - V10-0994

    VAICO® Rear Passenger Side Outer CV Joint Boot Kit for 1990 Volkswagen Vanagon

    PartNumber: V10-0994
    Product Specifications
    • Notes: Grade: Aftermarket
    • Inner diameter 1 [mm]: 21
    • Inner diameter 2 [mm]: 100
    • Length [mm]: 100
    • Packaging Depth [cm]: 10
    • Packaging height [cm]: 10
    • Packaging width [cm]: 10
    • Weight [kg]: 0,2
    • Part Description: 1990 Volkswagen Vanagon Rear Passenger Side Outer CV Joint Boot Kit
    More Info
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | Base | All Engines
    • 1990 Volkswagen Vanagon | Campmobile | All Engines
    • 1990 Volkswagen Vanagon | Carat | All Engines
    • 1990 Volkswagen Vanagon | GL | All Engines
    • 1990 Volkswagen Vanagon | Syncro | All Engines
    Show More
    $7.59
  • VAICO Rear Passenger Side Outer CV Joint Kit for 1990 Volkswagen Vanagon - V10-7277

    VAICO® Rear Passenger Side Outer CV Joint Kit for 1990 Volkswagen Vanagon

    PartNumber: V10-7277
    Product Specifications
    • Notes: Grade: Aftermarket; Location: Transmission Side
    • Int. teeth, diff.side, conn.to transm.: 33
    • Joint Type: CV Joint
    • Length [mm]: 150
    • Outer diameter [mm]: 100
    • Packaging height [cm]: 20
    • Packaging width [cm]: 11,5
    • Weight [kg]: 1,81
    • Part Description: 1990 Volkswagen Vanagon Rear Passenger Side Outer CV Joint Kit
    More Info
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | Base | All Engines
    • 1990 Volkswagen Vanagon | Campmobile | All Engines
    • 1990 Volkswagen Vanagon | Carat | All Engines
    • 1990 Volkswagen Vanagon | GL | All Engines
    • 1990 Volkswagen Vanagon | Syncro | All Engines
    Show More
  • Centric Premium™ Axle Shaft Bearing Assembly Single Row for 1990 Volkswagen Vanagon - 411.33000

    Centric® Premium™ Axle Shaft Bearing Assembly Single Row for 1990 Volkswagen Vanagon

    PartNumber: 411.33000
    Product Specifications
    • UPC: 805890568414
    • Part Description: 1990 Volkswagen Vanagon Premium™ Axle Shaft Bearing Assembly Single Row
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | All Trims | All Engines
  • FAG Front Axle Shaft Bearing for 1990 Volkswagen Vanagon - 32010X

    FAG® Front Axle Shaft Bearing for 1990 Volkswagen Vanagon

    PartNumber: 32010X
    Product Specifications
    • Notes: FAG Global# 32010X
    • Bearing Inside Diameter: 1.969; 50
    • Bearing Outside Diameter: 3.15; 80
    • Length: 0.787; 20
    • UPC: 884109252801
    • Part Description: 1990 Volkswagen Vanagon Front Axle Shaft Bearing
    More Info
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | All Trims | All Engines

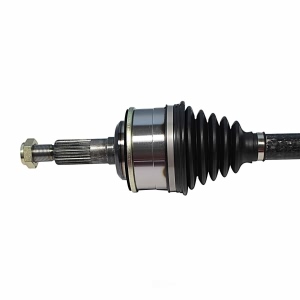

  • GSP North America Front Passenger Side CV Axle Assembly for 1990 Volkswagen Vanagon - NCV72013

    GSP North America® Front Passenger Side CV Axle Assembly for 1990 Volkswagen Vanagon

    PartNumber: NCV72013
    Product Specifications
    • IBJ Type: Bolt
    • Length: 28 1/16"
    • OBJ Spline Count: 26
    • UPC: 883331720133
    • Part Description: 1990 Volkswagen Vanagon Front Passenger Side CV Axle Assembly
    More Info
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | Syncro | All Engines

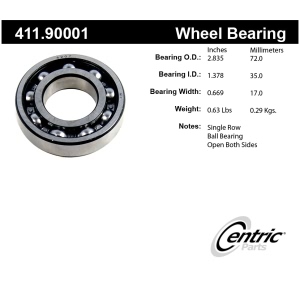

  • Centric Premium™ Rear Driver Side Single Row Wheel Bearing for 1990 Volkswagen Vanagon - 411.90001

    Centric® Premium™ Rear Driver Side Single Row Wheel Bearing for 1990 Volkswagen Vanagon

    PartNumber: 411.90001
    Product Specifications
    • UPC: 805890569176
    • Part Description: 1990 Volkswagen Vanagon Premium™ Rear Driver Side Single Row Wheel Bearing
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | All Trims | All Engines

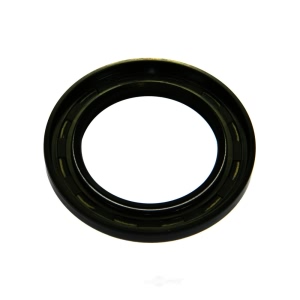

  • Centric Premium™ Axle Shaft Seal for 1990 Volkswagen Vanagon - 417.33004

    Centric® Premium™ Axle Shaft Seal for 1990 Volkswagen Vanagon

    PartNumber: 417.33004
    Product Specifications
    • Notes: Centric Premium Oil & Grease Seal
    • UPC: 805890573036
    • Part Description: 1990 Volkswagen Vanagon Premium™ Axle Shaft Seal
    More Info
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | All Trims | All Engines

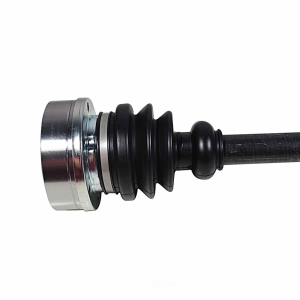

  • GSP North America Rear Passenger Side CV Axle Assembly for 1990 Volkswagen Vanagon - NCV72990

    GSP North America® Rear Passenger Side CV Axle Assembly for 1990 Volkswagen Vanagon

    PartNumber: NCV72990
    Product Specifications
    • IBJ Type: Bolt
    • Length: 21 5/16"
    • UPC: 883331729907
    • Part Description: 1990 Volkswagen Vanagon Rear Passenger Side CV Axle Assembly
    More Info
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | Syncro | All Engines
  • National Driveshaft Center Support Bearing for 1990 Volkswagen Vanagon - 107

    National® Driveshaft Center Support Bearing for 1990 Volkswagen Vanagon

    PartNumber: 107
    Product Specifications
    • Bore: 1.378"
    • Design: Single Row Radial
    • Inner Race Bore (Inch): 1.378
    • Inner Race Radius (Inch): 0.040
    • Inner Race Width (Inch): 0.551
    • Outer Race Outside Diameter (Inch): 2.441
    • Outer Race Radius (Inch): 0.040
    • Outer Race Width (Inch): 0.551
    • Outside Diameter: 2.441"
    • Series: 100
    • Type: A-1
    • Width: 0.551"
    • Part Description: 1990 Volkswagen Vanagon Driveshaft Center Support Bearing
    More Info
    Vehicle Fitment
    • 1990 Volkswagen Vanagon | All Trims | All Engines
