Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 50 gph
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 70.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Type: Hose Bead
Pump Type: Electric
Strainer Included: Yes
System Pressure: 36 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Pin
UPC: 689604120095
Voltage: 12.0 VDC
Wiring Harness Included: No
Part Description: 1989 Nissan Maxima Fuel Pump And Strainer Set
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 32 gph
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Item Grade: Standard Replacement
Maximum Pressure: 94.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Type: Hose
Pump Type: Electric
Strainer Included: No
System Pressure: 34 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604035207
Voltage: 12 VDC
Wiring Harness Included: Yes

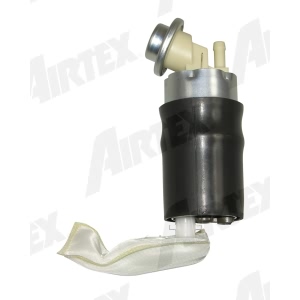

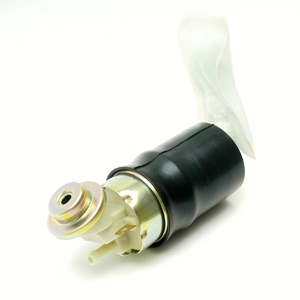

Part Description: 1989 Nissan Maxima In Tank Electric Fuel Pump
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Item Grade: Standard Replacement
Micron Rating: 31
Strainer Material: Polyester
UPC: 689604062739
Part Description: 1989 Nissan Maxima Fuel Pump Strainer
