1987 Jaguar XJ6
Four Seasons® Remanufactured A C Compressor With Clutch for 1987 Jaguar XJ6
PartNumber: 57096Product Specifications- Notes: w/ A6 Compressor; Reman w/ Clutch
- Belt Width IN: 0.4375
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.125
- Coil Clock Position: 2
- Coil Type: Spade
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 150
- Compressor Type: A6
- Distance From Clutch To Mounting Flange: 2.000
- Mounting Hardware: Not Included
- Mounting Type: Direct Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24619] / Green Oval O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 130.048
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.125
- Pulley Outside Diameter: 5.125
- Pulley Ridge Diameter: 5.125
- Refrigerant Type: R134a
- Suc Prt Typ Note: W/ O-Ring
- Suction Port Type: Block Mount
- Switch Included: High Pressure
- Terminal Type: Spade
- UPC: 096361570962
- Part Description: Remanufactured A C Compressor With Clutch
$272.78
National® A/C Compressor Bearing for 1987 Jaguar XJ6
PartNumber: 907257Product Specifications- Notes: w/Harrison A-6 AC Compressor
- Bore (in): 1.574
- Bore (mm): 39.987
- Design: Double Row Angular Contact
- Inner Race Radius (in): 0.040
- Inner Race Radius (mm): 1.016
- Outside Diameter (In): 2.441
- Outside Diameter (mm): 62.004
- Series: SPECIAL
- Type: D-3
- Width (in): 0.812
- Width (mm): 20.625
- Part Description: A/C Compressor Bearing
$28.86
Four Seasons® A C Compressor With Clutch for 1987 Jaguar XJ6
PartNumber: 58096Product Specifications- Notes: w/A6 Compressor; New w/Clutch; 8 Oz. PAG Oil for R-134A, 8 Oz. Mineral Oil for R-12
- Belt Width IN: 0.4375
- Belt Width MM: 11.113
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.125
- Coil Clock Position: 2
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: A6
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.000
- Mount Distance MM: 50.800
- Mounting Hardware: Not Included
- Mounting Type: Direct Mount
- New or Reman: New
- O-Ring A Number/Desc: [24619] / Green Oval O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 130.048
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.125
- Pulley Outside Diameter: 5.125
- Pulley Ridge Diameter: 5.125
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: High Pressure
- Terminal Type: Spade
- UPC: 096361580961
- Part Description: A C Compressor With Clutch
$308.56
Four Seasons® System Mounted Low Cut Out Pressure Switch for 1987 Jaguar XJ6
PartNumber: 35756Product Specifications- Notes: Low Pressure Compressor Mounted; Axial Compressor; w/High Pressure;Low Pressure Compressor Mounted Cut-Out Switch; Axial Compressor; w/High Pressure
- Color: Black
- Connector Gender: Male
- Connector Shape: Round
- Fitting Thread Size: No Threads/Clip-In
- Harness Connector: [37219] / Harness Connector
- Item Included A Desc: 24623
- Item Included A Qty.: 1
- Material: Plastic / Metal
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: Compressor Mount; Compressor Mounted
- Number of Terminals: 2
- Operate Psi Low Off: 29; 33
- Operate Psi Low On: 27; 30; 36
- Style: Pressure
- UPC: 096361357563
- Weather Pack: Yes
- Part Description: System Mounted Low Cut Out Pressure Switch
$27.50
Four Seasons® A C Expansion Valve for 1987 Jaguar XJ6
PartNumber: 38602Product Specifications- Color: Aluminum
- Liquid Inlet Fitting Gender: Female
- Liquid Inlet Fitting Thread Diameter: No. 6
- Liquid Inlet Style: FIO
- Liquid Inlet Thread Type: 5/8" - 18
- Liquid Inlet Type: O-Ring
- Liquid Outlet Fitting Gender: Female
- Liquid Outlet Fitting Thread Diameter: No. 8
- Liquid Outlet Style: FIO
- Liquid Outlet Thread Type: 3/4" - 18
- Liquid Outlet Type: O-Ring
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hole Quantity: 2
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24608] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24610] / Green O-Ring
- O-Ring C Quantity: 2
- Refrigerant Type: R134A
- Style: w/o Solenoid
- Suction Inlet Fitting Gender: Female
- Suction Inlet Fitting Thread Diameter: No. 10
- Suction Inlet Style: FIO
- Suction Inlet Thread Type: 7/8" - 18
- Suction Inlet Type: O-Ring
- Suction Outlet Fitting Gender: Female
- Suction Outlet Fitting Thread Diameter: No. 10
- Suction Outlet Style: FIO
- Suction Outlet Thread Type: 7/8" - 18
- Suction Outlet Type: O-Ring
- Super Heat: 6.300
- Switch Included: Not Included
- Tonnage: 2.000
- UPC: 096361386020
- Part Description: A C Expansion Valve
$25.49
Four Seasons® A C Receiver Drier for 1987 Jaguar XJ6
PartNumber: 33492Product Specifications- Body Diameter: 1.77
- Body Length: 16.7
- Bracket: w/o Bracket
- Connector B Type: Male Insert O-Ring
- Connector Type: Male Insert O-Ring
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Fuse Plug: No
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Male
- Inlet Filter Fitting Type: Male
- Inlet Fitting Diameter: 0.375
- Inlet Fitting Type: Male Insert O-Ring
- Material: Steel
- Meets / Exceeds OEM: Yes
- Moisture Indicator Window: No
- Mounting Bracket Included: Hardware not included
- New or Reman: New
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 2
- Outlet Fitting Type: Male Insert O-Ring
- Outlet IN: 0.375
- Overall Depth IN: 16.7
- Service Port: w/o Service Port
- Service Port Qty.: 1
- Sight Glass: No
- Stud: No
- Style: Steel Filter Drier
- Switch Port: w/ Switch Port
- UPC: 096361334922
- Part Description: A C Receiver Drier
$21.29
Four Seasons® A C System Valve Core And Cap Kit for 1987 Jaguar XJ6
PartNumber: 26777Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ R12 or R134a Retrofit System
- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: A C System Valve Core And Cap Kit
$10.69
Four Seasons® Hvac Heater Control Valve for 1987 Jaguar XJ6
PartNumber: 74803Product Specifications- Hose Connector Quantity: 2 Connectors
- Material: Plastic
- O.E. Replacement: Yes
- Opening B IN: 0.625
- Opening B MM: 15.875
- Opening C IN: 0.625
- Opening C MM: 15.875
- Opening D IN: 0.625
- Opening D MM: 15.875
- Opening IN: 0.625
- Opening MM: 15.875
- Operation Type: Vacuum
- Style: Non-Bypass
- UPC: 096361748033
- Part Description: Hvac Heater Control Valve
$9.61
Four Seasons® Harness Connector Adapter for 1987 Jaguar XJ6
PartNumber: 37216Product Specifications- Notes: w/A6 Compressor; Harness Connector-Conversion
- Connector B Gender: Female
- Connector B Shape: Rectangle
- Connector Shape: Oval
- Gender: Female
- Printed Foot Note: Harness Connector Adapter
- Style: Harness Connector Adapter
- Terminal Gender: Male
- Terminal Quantity: 2
- UPC: 096361372160
- Part Description: Harness Connector Adapter
$8.10
Four Seasons® A C Compressor Wiring Harness for 1987 Jaguar XJ6
PartNumber: 37201Product Specifications- Notes: w/A6 Compressor; Harness Connector-Repair
- Connector Pin Qty: 2
- Connector Shape: Rectangle
- Connector Type: Spade
- Gender: Female
- Printed Foot Note: Repair Kit for GM 2 Terminal Coil w/ Diode
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 2
- UPC: 096361372016
- Part Description: A C Compressor Wiring Harness
$7.23
Four Seasons® Harness Connector Adapter for 1987 Jaguar XJ6
PartNumber: 37209Product Specifications- Notes: w/A6 Compressor; Harness Connector-Extender
- Connector B Gender: Female
- Connector B Shape: Rectangle
- Connector Pin Qty: 2
- Connector Shape: Rectangle
- Gender: Female
- Printed Foot Note: 12" Extension Coil Wire for GM Products.
- Style: Harness Connector Adapter
- Terminal Gender: Male
- Terminal Quantity: 2
- UPC: 096361372092
- Wire Length IN: 12.000
- Wire Length MM: 304.800
- Part Description: Harness Connector Adapter
$7.40
Four Seasons® A C System O Ring And Gasket Kit for 1987 Jaguar XJ6
PartNumber: 26718Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Green Rubber O-Rings, Metal spring O-Ring
- Style: O-Ring & Gasket Kit
- UPC: 096361267183
- Part Description: A C System O Ring And Gasket Kit
$5.19

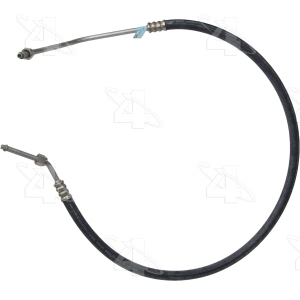

Four Seasons® A C Liquid Line Hose Assembly for 1987 Jaguar XJ6
PartNumber: 55769Product Specifications- Notes: Liquid Line w/o Orifice Tube;w/o Orifice Tube
- Bracket: w/o Bracket
- Gasket or Seal Included: Included
- Liquid Line MM: 5/8" - 18
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 2
- O.E. Replacement: Yes
- Orifice Tube: w/ Orifice Tube
- Refrigerant Type: R134a
- Service Port: w/o Service Port
- Style: Liquid Line Hose Assembly w/o Orifice Tube
- Suction End Type: Female O Ring
- Switch Service Port: w/o Switch Port
- System Pressure: High Pressure
- UPC: 096361557697
- Part Description: A C Liquid Line Hose Assembly
Four Seasons® Reman GM Frigidaire/Harrison A6 Clutch Assembly w/ Coil for 1987 Jaguar XJ6
PartNumber: 48284Product Specifications- Notes: w/ A6 Compressor; Reman
- Belt Type: V-Belt
- Belt Width IN: 0.4375
- Can Size: w/ Coil
- Clutch Maximum Diameter: 5.000
- Coil: w/ Coil
- Coil Voltage: 12
- Color: Black
- Connector Quantity: 2
- Distance From Clutch To Mounting Flange: 2.000
- Groove: 1
- Hub Number: [48241] / Clutch Assembly
- Lead Wire : One Piece Coil
- Material: Cast Iron
- Meets / Exceeds OEM: Yes
- Mounting Type: Press Fit
- Rotation: CCW-CW
- Style: Frigidaire/Harrison A6
- Terminal Quantity: 2
- Thermal Or Non Thermal: NR
- UPC: 096361482845
- Part Description: Reman GM Frigidaire/Harrison A6 Clutch Assembly w/ Coil
