OEM (Genuine) 2015 Toyota Prius V Fuel Pump
PartNumber: 23220-21211
Product Specifications- Item Dimensions: 12.8 x 6.8 x 6.2 inches
- Item Weight: 1.10 Pounds
- Part Description: 2015 Toyota Prius V Fuel Pump
Vehicle Fitment- 2015 Toyota Prius V | Five, Four, Three, Two | 4 Cyl 1.8 L ELECTRIC/GAS
$293.21 MSRP:$425.97You Save: $132.76 (32%)
Delphi® Fuel Pump Module Assembly for 2015 Toyota Prius V
PartNumber: FG1639Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 50 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 95.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 2
- Outlet Type: Push''
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 410.0
- Resistance Ohms Full: 15.0
- Strainer Included: Yes
- System Pressure: 47 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604240717
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2015 Toyota Prius V Fuel Pump Module Assembly
Vehicle Fitment- 2015 Toyota Prius V | All Trims | 4 Cyl 1.8L
$672.80
OEM (Genuine) 2015 Toyota Prius V Fuel Pump
PartNumber: 77020-47111
Product Specifications- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Weight: 3.10 Pounds
- Fitment Type: Direct Replacement
- Replaces: 77020-47110
- Part Description: 2015 Toyota Prius V Fuel Pump
Vehicle Fitment- 2015 Toyota Prius V | Five, Four, Three, Two | 4 Cyl 1.8 L ELECTRIC/GAS
$376.05 MSRP:$554.55You Save: $178.50 (33%)
Delphi® Fuel Pump And Strainer Set for 2015 Toyota Prius V
PartNumber: FE0670Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 26 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 100.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Type: Hose Bead
- Pump Type: Electric
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604280812
- Voltage: 12.0 VDC
- Wiring Harness Included: No
- Part Description: 2015 Toyota Prius V Fuel Pump And Strainer Set
Vehicle Fitment- 2015 Toyota Prius V | All Trims | 4 Cyl 1.8L
$335.21

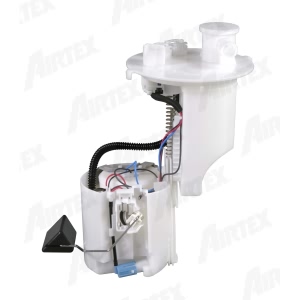

Airtex® Fuel Pump Module Assembly for 2015 Toyota Prius V
PartNumber: E9181MProduct Specifications- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 60
- Maximum Pressure (psi): 115
- Minimum Free Flow Rate (gph): 50
- Minimum Pressure (psi): 44.0
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: FEMALE QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044058359
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2015 Toyota Prius V Fuel Pump Module Assembly
Vehicle Fitment- 2015 Toyota Prius V | All Trims | 4 Cyl 1.8L
