Replacement and OEM Parts for 2012 Toyota RAV4 Spark Plug

2012 Toyota RAV4 Spark Plug

My Vehicle Change Vehicle
2012 Toyota RAV4
Change Vehicle
Vehicle Options
We need more information about your vehicle to make a correct determination of fitment
< Back to View All
Spark Plugs & Wires
  • Department
  • Electrode Material
  • Insulator Type
  • Location
  • Brands
  • Prices

16 Products found

Show Item:
  • 30
  • 60
  • 90
Sort by:
Recommended
Filter
Sort
View by

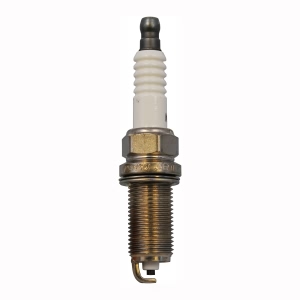

  • Denso Iridium Long-Life Spark Plug for 2012 Toyota RAV4 - 3426

    Denso® Iridium Long-Life Spark Plug for 2012 Toyota RAV4

    PartNumber: 3426
    Product Specifications
    • Notes: Gap 0.044; DENSO is OE Manufacturer / Iridium Long Life Plug - Patented Iridium Alloy Plug (90% Ir) w/Platinum Ground Strap
    • Center Electrode Design: Fine Wire
    • Center Electrode Tip Material: 0.55mm Iridium; Iridium-Rhodium Alloy
    • Drive Size: 13/16 in
    • Gap - Factory Preset: 1.1 mm = 0.044 in
    • Ground Configuration: Needle-to-Needle
    • Ground Electrode Configuration: Single
    • Ground Electrode Core Material: Nickel
    • Ground Electrode Design: Needle to Needle
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: Platinum Needle
    • Ground Electrode Tip Material: 0.7mm Platinum
    • Hex Size: 16.0
    • Insulator Material: Ceramic
    • Insulator Type: Non-Projected
    • Internet Product Code (IPC): AF6B0F27F34
    • Item has MSDS (SDS): N
    • Manufacturer Heat Range: 20
    • Manufacturer Heat Range Number: 20
    • MFG Brand Name: DENSO Auto Parts
    • MFG Model # (Series): 3426
    • MFG Name: DENSO
    • Pre-Gap Size: 0.044
    • Reach: 26.50
    • Resistance: 5000
    • Resistor: Yes
    • Seat Style: Gasket
    • Seat Type: Flat
    • Short Style: No
    • Supplier Company Name: DENSO
    • Thread Diameter: 0.551
    • Thread Size: 14mm
    • UPC: 042511034266
    • Part Description: 2012 Toyota RAV4 Iridium Long-Life Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 6 Cyl 3.5L
    $13.79
  • Denso Iridium Long-Life Spark Plug for 2012 Toyota RAV4 - 3417

    Denso® Iridium Long-Life Spark Plug for 2012 Toyota RAV4

    PartNumber: 3417
    Product Specifications
    • Notes: Gap 0.044; DENSO is OE Manufacturer / Iridium Long Life Plug - Patented Iridium Alloy Plug (90% Ir) w/Platinum Ground Strap
    • Electrode Material: Iridium
    • Gap: .043" (1.1 mm)
    • Heat Range: 16
    • Hex Size: 5/8" (16 mm)
    • Nominal Gap: 1.1 mm
    • Overall Height: ISO
    • Reach: 26.5 mm (1.04")
    • Seat Type: Gasket
    • Terminal Type: Solid
    • Thread Diameter: 14 mm
    • Thread Pitch: 1.25 mm
    • UPC: 042511034174
    • Part Description: 2012 Toyota RAV4 Iridium Long-Life Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L
    $8.99
  • Denso Iridium TT™ Spark Plug for 2012 Toyota RAV4 - 4703

    Denso® Iridium TT™ Spark Plug for 2012 Toyota RAV4

    PartNumber: 4703
    Product Specifications
    • Notes: Gap 0.040; Iridium TT - Ultimate Endurance & Pwr, 0.4mm Iridium & 0.7mm Platinum Twin-Tip Technology
    • Electrode Material: Iridium
    • Gap: .039" (1.0 mm)
    • Heat Range: 16
    • Hex Size: 5/8" (16 mm)
    • Nominal Gap: 1 mm
    • Overall Height: ISO
    • Reach: 26.5 mm (1.04")
    • Seat Type: Gasket
    • Terminal Type: Solid
    • Thread Diameter: 14 mm
    • Thread Pitch: 1.25 mm
    • UPC: 042511047037
    • Part Description: 2012 Toyota RAV4 Iridium TT™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L
    $7.25
  • Denso Iridium TT™ Spark Plug for 2012 Toyota RAV4 - 4704

    Denso® Iridium TT™ Spark Plug for 2012 Toyota RAV4

    PartNumber: 4704
    Product Specifications
    • Notes: Gap 0.040; Iridium TT - Ultimate Endurance & Pwr, 0.4mm Iridium & 0.7mm Platinum Twin-Tip Technology
    • Electrode Material: Iridium
    • Gap: .039" (1.0 mm)
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: Platinum Twin-Tip
    • Heat Range: 20
    • Hex Size: 5/8" (16 mm)
    • Material: Nickel
    • Nominal Gap: 1 mm
    • Overall Height: ISO
    • Reach: 26.5 mm (1.04")
    • Seat Type: Gasket
    • Spark Plug Reach: 26.50 mm
    • Terminal Type: Solid
    • Thread Diameter: 14 mm
    • Thread Pitch: 1.25 mm
    • UPC: 042511047044
    • Wrench Diameter: 16 mm
    • Part Description: 2012 Toyota RAV4 Iridium TT™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 6 Cyl 3.5L
    $7.25
  • Denso Iridium Power™ Spark Plug for 2012 Toyota RAV4 - 5343

    Denso® Iridium Power™ Spark Plug for 2012 Toyota RAV4

    PartNumber: 5343
    Product Specifications
    • Notes: Gap 0.044; Iridium Pwr - Perf Upgrade w/Worlds Smallest Center Electrode (0.4 mm Dia) & Tapered Tip Patented U-Groove Design & Patented Ir Alloy (90% Ir)
    • Electrode Material: Iridium
    • Gap: .043" (1.1 mm)
    • Heat Range: 16
    • Hex Size: 5/8" (16 mm)
    • Nominal Gap: 1.1 mm
    • Overall Height: ISO
    • Reach: 26.5 mm (1.04")
    • Seat Type: Gasket
    • Terminal Type: Solid
    • Thread Diameter: 14 mm
    • Thread Pitch: 1.25 mm
    • UPC: 042511053434
    • Part Description: 2012 Toyota RAV4 Iridium Power™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L
    $6.61
  • Denso Iridium Power™ Spark Plug for 2012 Toyota RAV4 - 5344

    Denso® Iridium Power™ Spark Plug for 2012 Toyota RAV4

    PartNumber: 5344
    Product Specifications
    • Notes: Gap 0.044; Iridium Pwr - Perf Upgrade w/Worlds Smallest Center Electrode (0.4 mm Dia) & Tapered Tip Patented U-Groove Design & Patented Ir Alloy (90% Ir)
    • Electrode Material: Iridium
    • Gap: .043" (1.1 mm)
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: Tapercut, U-Groove
    • Heat Range: 20
    • Hex Size: 5/8" (16 mm)
    • Material: Nickel
    • Nominal Gap: 1.1 mm
    • Overall Height: ISO
    • Reach: 26.5 mm (1.04")
    • Seat Type: Gasket
    • Spark Plug Reach: 26.50 mm
    • Terminal Type: Solid
    • Thread Diameter: 14 mm
    • Thread Pitch: 1.25 mm
    • UPC: 042511053441
    • Wrench Diameter: 16 mm
    • Part Description: 2012 Toyota RAV4 Iridium Power™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 6 Cyl 3.5L
    $6.61
  • Denso Platinum TT™ Spark Plug for 2012 Toyota RAV4 - 4505

    Denso® Platinum TT™ Spark Plug for 2012 Toyota RAV4

    PartNumber: 4505
    Product Specifications
    • Notes: Gap 0.040; Platinum TT - Twin-Tip Technology Design w/Platinum Center Electrode & Titanium Enhanced Ground Strap
    • Electrode Material: Platinum
    • Gap: .039" (1.0 mm)
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: Titanium Enhanced Twin-Tip
    • Heat Range: 16
    • Hex Size: 5/8" (16 mm)
    • Material: Nickel
    • Nominal Gap: 1 mm
    • Overall Height: ISO
    • Reach: 26.5 mm (1.04")
    • Seat Type: Gasket
    • Spark Plug Reach: 26.50 mm
    • Terminal Type: Solid
    • Thread Diameter: 14 mm
    • Thread Pitch: 1.25 mm
    • UPC: 042511045057
    • Wrench Diameter: 16 mm
    • Part Description: 2012 Toyota RAV4 Platinum TT™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L
    $5.12
  • Denso Original U-Groove™ Spark Plug for 2012 Toyota RAV4 - 3482

    Denso® Original U-Groove™ Spark Plug for 2012 Toyota RAV4

    PartNumber: 3482
    Product Specifications
    • Notes: Gap 0.044; Resistor Plug w/Patented U-Groove Design
    • Center Electrode Core Material: Copper
    • Center Electrode Material: Nickel
    • Gap: 0.044"
    • Ground Configuration: Standard
    • Ground Electrode Core Material: Nickel
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: U-Groove
    • Heat Range: 16
    • Hex Size: 16 mm
    • Resistance: 5 kOhm
    • Spark Plug Seat Style: Gasket
    • Thread Diameter: 0.551"
    • Thread Reach: 1.043"
    • UPC: 042511034822
    • Part Description: 2012 Toyota RAV4 Original U-Groove™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L
  • Denso Iridium Long-Life™ Spark Plug for 2012 Toyota RAV4 - FK20HR11

    Denso® Iridium Long-Life™ Spark Plug for 2012 Toyota RAV4

    PartNumber: FK20HR11
    Product Specifications
    • Notes: Gap 0.044; DENSO is OE Manufacturer / Iridium Long Life Plug - Patented Iridium Alloy Plug (90% Ir) w/Platinum Ground Strap
    • Center Electrode Core Material: Copper
    • Center Electrode Tip Material: Iridium-Rhodium Alloy
    • Ground Configuration: Needle-to-Needle
    • Ground Electrode Core Material: Nickel
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: Platinum Needle
    • Hex Size: 16.0
    • Manufacturer Heat Range: 20
    • Pre-Gap Size: 0.044
    • Reach: 26.50
    • Resistance: 5000
    • Seat Type: Gasket
    • UPC: 042511034266
    • Part Description: 2012 Toyota RAV4 Iridium Long-Life™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 6 Cyl 3.5L
  • Denso Iridium Tt™ Spark Plug for 2012 Toyota RAV4 - IKH16

    Denso® Iridium Tt™ Spark Plug for 2012 Toyota RAV4

    PartNumber: IKH16
    Product Specifications
    • Notes: Gap 0.044; Iridium Pwr - Perf Upgrade w/Worlds Smallest Center Electrode (0.4 mm Dia) & Tapered Tip Patented U-Groove Design & Patented Ir Alloy (90% Ir)
    • Center Electrode Core Material: Copper
    • Center Electrode Tip Material: Iridium Rhodium Alloy
    • Ground Configuration: Standard
    • Ground Electrode Core Material: Nickel
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: Tapercut, U-Groove
    • Hex Size: 16.0
    • Manufacturer Heat Range: 16
    • Pre-Gap Size: 0.044
    • Reach: 26.50
    • Resistance: 5000
    • Seat Type: Gasket
    • UPC: 042511053434
    • Part Description: 2012 Toyota RAV4 Iridium Tt™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L
  • Denso Iridium Tt™ Spark Plug for 2012 Toyota RAV4 - IKH16TT

    Denso® Iridium Tt™ Spark Plug for 2012 Toyota RAV4

    PartNumber: IKH16TT
    Product Specifications
    • Notes: Gap 0.040; Iridium TT - Ultimate Endurance & Pwr, 0.4mm Iridium & 0.7mm Platinum Twin-Tip Technology
    • Center Electrode Core Material: Copper
    • Center Electrode Tip Material: Iridium Rhodium Alloy
    • Ground Configuration: Twin-Tip
    • Ground Electrode Core Material: Nickel
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: Platinum Twin-Tip
    • Hex Size: 16.0
    • Manufacturer Heat Range: 16
    • Pre-Gap Size: 0.040
    • Reach: 26.50
    • Resistance: 5000
    • Seat Type: Gasket
    • UPC: 042511047037
    • Part Description: 2012 Toyota RAV4 Iridium Tt™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L
  • Denso Iridium Tt™ Spark Plug for 2012 Toyota RAV4 - IKH20

    Denso® Iridium Tt™ Spark Plug for 2012 Toyota RAV4

    PartNumber: IKH20
    Product Specifications
    • Notes: Gap 0.044; Iridium Pwr - Perf Upgrade w/Worlds Smallest Center Electrode (0.4 mm Dia) & Tapered Tip Patented U-Groove Design & Patented Ir Alloy (90% Ir)
    • Center Electrode Core Material: Copper
    • Center Electrode Tip Material: Iridium Rhodium Alloy
    • Ground Configuration: Standard
    • Ground Electrode Core Material: Nickel
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: Tapercut, U-Groove
    • Hex Size: 16.0
    • Manufacturer Heat Range: 20
    • Pre-Gap Size: 0.044
    • Reach: 26.50
    • Resistance: 5000
    • Seat Type: Gasket
    • UPC: 042511053441
    • Part Description: 2012 Toyota RAV4 Iridium Tt™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 6 Cyl 3.5L
  • Denso Iridium Tt™ Spark Plug for 2012 Toyota RAV4 - IKH20TT

    Denso® Iridium Tt™ Spark Plug for 2012 Toyota RAV4

    PartNumber: IKH20TT
    Product Specifications
    • Notes: Gap 0.040; Iridium TT - Ultimate Endurance & Pwr, 0.4mm Iridium & 0.7mm Platinum Twin-Tip Technology
    • Center Electrode Core Material: Copper
    • Center Electrode Tip Material: Iridium Rhodium Alloy
    • Ground Configuration: Twin-Tip
    • Ground Electrode Core Material: Nickel
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: Platinum Twin-Tip
    • Hex Size: 16.0
    • Manufacturer Heat Range: 20
    • Pre-Gap Size: 0.040
    • Reach: 26.50
    • Resistance: 5000
    • Seat Type: Gasket
    • UPC: 042511047044
    • Part Description: 2012 Toyota RAV4 Iridium Tt™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 6 Cyl 3.5L
  • Denso Original U-Groove™ Spark Plug for 2012 Toyota RAV4 - K16HR-U11

    Denso® Original U-Groove™ Spark Plug for 2012 Toyota RAV4

    PartNumber: K16HR-U11
    Product Specifications
    • Notes: Gap 0.044; Resistor Plug w/Patented U-Groove Design
    • Center Electrode Core Material: Copper
    • Center Electrode Tip Material: Nickel
    • Ground Configuration: Standard
    • Ground Electrode Core Material: Nickel
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: U-Groove
    • Hex Size: 16.0
    • Manufacturer Heat Range: 16
    • Pre-Gap Size: 0.044
    • Reach: 26.50
    • Resistance: 5000
    • Seat Type: Gasket
    • UPC: 042511034822
    • Part Description: 2012 Toyota RAV4 Original U-Groove™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L
  • Denso Platinum Tt™ Spark Plug for 2012 Toyota RAV4 - PKH16TT

    Denso® Platinum Tt™ Spark Plug for 2012 Toyota RAV4

    PartNumber: PKH16TT
    Product Specifications
    • Notes: Gap 0.040; Platinum TT - Twin-Tip Technology Design w/Platinum Center Electrode & Titanium Enhanced Ground Strap
    • Center Electrode Core Material: Copper
    • Center Electrode Tip Material: Platinum
    • Ground Configuration: Twin-Tip
    • Ground Electrode Core Material: Nickel
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: Titanium Enhanced Twin-Tip
    • Hex Size: 16.0
    • Manufacturer Heat Range: 16
    • Pre-Gap Size: 0.040
    • Reach: 26.50
    • Resistance: 5000
    • Seat Type: Gasket
    • UPC: 042511045057
    • Part Description: 2012 Toyota RAV4 Platinum Tt™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L
  • Denso Iridium Long-Life™ Spark Plug for 2012 Toyota RAV4 - SK16HR11

    Denso® Iridium Long-Life™ Spark Plug for 2012 Toyota RAV4

    PartNumber: SK16HR11
    Product Specifications
    • Notes: Gap 0.044; DENSO is OE Manufacturer / Iridium Long Life Plug - Patented Iridium Alloy Plug (90% Ir) w/Platinum Ground Strap
    • Center Electrode Core Material: Copper
    • Center Electrode Tip Material: Iridium-Rhodium Alloy
    • Ground Configuration: Standard
    • Ground Electrode Core Material: Nickel
    • Ground Electrode Quantity: 1
    • Ground Electrode Tip Design: Platinum Chip
    • Hex Size: 16.0
    • Manufacturer Heat Range: 16
    • Pre-Gap Size: 0.044
    • Reach: 26.50
    • Resistance: 5000
    • Seat Type: Gasket
    • UPC: 042511034174
    • Part Description: 2012 Toyota RAV4 Iridium Long-Life™ Spark Plug
    More Info
    Vehicle Fitment
    • 2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L
