Delphi® Fuel Pump Module Assembly for 2011 Dodge Caliber
PartNumber: FG1140Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 20 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 78.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 120.0
- Resistance Ohms Full: 14.0
- Strainer Included: Yes
- System Pressure: 59 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604230800
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2011 Dodge Caliber Fuel Pump Module Assembly
Vehicle Fitment- 2011 Dodge Caliber | All Trims | 4 Cyl 2.4L
- 2011 Dodge Caliber | All Trims | 4 Cyl 2.0L
$146.26
Autobest® Fuel Pump Module Assembly for 2011 Dodge Caliber
PartNumber: F3231AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir and Fuel Strainer
- Average Current Draw(A): 10
- Average Flow Rating(GPH): 38.30
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Trapezoid
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 64
- Minimum Pump Pressure (PSI): 58
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 8.84
- Product Length (in): 13.66
- Product Width (in): 9.02
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 118
- Resistance Ohms Full: 13
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845132314
- Voltage: 12V
- Weight (lbs): 2.53
- Wire Harness Included: No
- Part Description: 2011 Dodge Caliber Fuel Pump Module Assembly
Vehicle Fitment- 2011 Dodge Caliber | All Trims | 4 Cyl 2.0L
- 2011 Dodge Caliber | All Trims | 4 Cyl 2.4L
$97.80
OEM (Genuine) 2011 Dodge Caliber Module-Fuel Pump/Level Unit
PartNumber: 5183201AF
Product Specifications- Notes: 2.0 & 2.4 Liter
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 15.4 x 11.6 x 8.3 inches
- Item Weight: 5.60 Pounds
- Replaces: 5183201AC, 5183201AA, RL183201AC, 5183201AE, 5183201AD, 5183201AB
- Replaced by: 5183201AG
- Part Description: 2011 Dodge Caliber Module-Fuel Pump/Level Unit
Vehicle Fitment- 2011 Dodge Caliber | Express, Heat, Mainstreet, Rush, SE, SXT, SXT Plus, Uptown | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
$343.19 MSRP:$526.00You Save: $182.81 (35%)

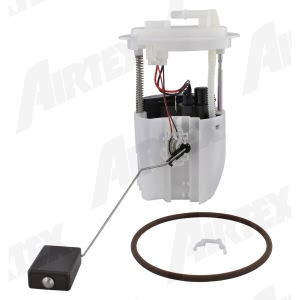

Airtex® In-Tank Fuel Pump Module Assembly for 2011 Dodge Caliber
PartNumber: E7220MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 19D40587D49
- Item Grade: OEM Standard
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 59
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E7220M
- Minimum Pressure (psi): 59
- Outlet Attachment: Quick Connect
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump & Kit
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044025146
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2011 Dodge Caliber In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2011 Dodge Caliber | All Trims | 4 Cyl 2.0L
- 2011 Dodge Caliber | All Trims | 4 Cyl 2.4L
