2010 Toyota Highlander
< Back to View All
Fuel Systems
- Department
- Location
- Operation
- Product Fit
- Brands
- Prices
OEM (Genuine) 2010 Toyota Highlander Fuel Pump
PartNumber: 77020-0E021
Product Specifications- Notes: US Built, 3.5 Liter; Highlander; 3.5l
- Other Names: Fuel Pump
- Item Weight: 3.00 Pounds
- Fitment Type: Direct Replacement
- Replaces: 77020-0E020
- Part Description: 2010 Toyota Highlander Fuel Pump
Vehicle Fitment- 2010 Toyota Highlander | Base, Limited, SE, Sport | 6 Cyl 3.5 L GAS
$519.89 MSRP:$766.64You Save: $246.75 (33%)
Denso® Electric Fuel Pump for 2010 Toyota Highlander
PartNumber: 951-0002Product Specifications- Notes: DENSO OE Replacement Fuel Pump
- Gasket or Seal Included: No
- Inlet Outside Diameter: 11.000 mm
- Internal or External: Internal
- Mounting Bracket Included: No
- Mounting Hardware Included: YES
- Negative Ground: Yes
- New or Remanufactured: NEW
- Outlet Quantity: 1
- Regulator Included: No
- Seal And Lock Ring Included: No
- Strainer Included: No
- UPC: 042511072381
- Voltage: 12 VDC
- Part Description: 2010 Toyota Highlander Electric Fuel Pump
Vehicle Fitment- 2010 Toyota Highlander | All Trims | 6 Cyl 3.3L
$76.14
Delphi® Fuel Pump Module Assembly for 2010 Toyota Highlander
PartNumber: FG0922Product Specifications- Notes: Except Japan Built;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 14
- Flow Rating: 21 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 78.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 111.0
- Resistance Ohms Full: 4.0
- Strainer Included: Yes
- System Pressure: 47 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604205921
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2010 Toyota Highlander Fuel Pump Module Assembly
Vehicle Fitment- 2010 Toyota Highlander | All Trims | 6 Cyl 3.5L
- 2010 Toyota Highlander | All Trims | 4 Cyl 2.7L
$341.10
Airtex® In-Tank Electric Fuel Pump for 2010 Toyota Highlander
PartNumber: E8404Product Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 50
- Maximum Pressure Rate (psi): 90
- Minimum Free Flow Rate (gph): 40
- Minimum Pressure Rate (psi): 70
- Outlet Count: 1
- Outlet Size: 5/16
- Outlet Type: Hose Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044517351
- Warranty: Lifetime Limited Warranty
- Part Description: 2010 Toyota Highlander In-Tank Electric Fuel Pump
Vehicle Fitment- 2010 Toyota Highlander | All Trims | 6 Cyl 3.3L
$53.67
Autobest® In Tank Electric Fuel Pump for 2010 Toyota Highlander
PartNumber: F4415Product Specifications- Notes: Strainer required to validate the warranty: F344S
- Average Current Draw(A): 6.5
- Average Flow Rating(GPH): 90
- Country of Orign: China
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 123.3
- Minimum Pump Pressure (PSI): 80
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.346
- Outlet Type: Hose
- Product Height (in): 1.5
- Product Length (in): 4.57
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Chip
- UPC: 00072845144157
- Voltage: 12V
- Weight (lbs): 0.67
- Wire Harness Included: No
- Part Description: 2010 Toyota Highlander In Tank Electric Fuel Pump
Vehicle Fitment- 2010 Toyota Highlander | Hybrid | 6 Cyl 3.3L
$20.74
OEM (Genuine) 2010 Toyota Highlander Fuel Pump
PartNumber: 23220-31180
Product Specifications- Notes: Japan Built, 3.5 Liter
- Item Dimensions: 2.6 x 2.6 x 6.2 inches
- Item Weight: 1.00 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2010 Toyota Highlander Fuel Pump
Vehicle Fitment- 2010 Toyota Highlander | Base, Limited, SE, Sport | 6 Cyl 3.5 L GAS
$341.42 MSRP:$503.47You Save: $162.05 (33%)
Delphi® Fuel Pump And Strainer Set for 2010 Toyota Highlander
PartNumber: FE0705Product Specifications- Notes: Japan Built;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 28 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 85.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Type: Female Quick Connect
- Pump Type: Electric
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604280829
- Voltage: 12.0 VDC
- Wiring Harness Included: No
- Part Description: 2010 Toyota Highlander Fuel Pump And Strainer Set
Vehicle Fitment- 2010 Toyota Highlander | All Trims | 6 Cyl 3.5L
$273.10
OEM (Genuine) 2010 Toyota Highlander Fuel Pump
PartNumber: 23221-20030
Product Specifications- Notes: Fuel Pump & Components; Highlander Hybrid
- Other Names: Fuel Pump
- Item Dimensions: 12.3 x 6.0 x 5.6 inches
- Item Weight: 1.40 Pounds
- Fitment Type: Direct Replacement
- Replaces: 23221-74090
- Part Description: 2010 Toyota Highlander Fuel Pump
Vehicle Fitment- 2010 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L ELECTRIC/GAS
$299.74 MSRP:$435.45You Save: $135.71 (32%)
Delphi® In Tank Electric Fuel Pump for 2010 Toyota Highlander
PartNumber: FE0527Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 5
- Flow Rating: 32 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Pressure: 104.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Type: Hose
- Pump Type: Electric
- Strainer Included: No
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604222164
- Voltage: 12 VDC
- Wiring Harness Included: No
- Part Description: 2010 Toyota Highlander In Tank Electric Fuel Pump
Vehicle Fitment- 2010 Toyota Highlander | All Trims | 6 Cyl 3.3L
$92.39OEM (Genuine) 2010 Toyota Highlander Fuel Pump
PartNumber: 77020-0E060
Product Specifications- Notes: US Built, 2.7 Liter; Highlander; 2.7l
- Other Names: Fuel Pump
- Item Dimensions: 16.3 x 10.6 x 8.0 inches
- Item Weight: 3.60 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2010 Toyota Highlander Fuel Pump
Vehicle Fitment- 2010 Toyota Highlander | Base, Plus, SE | 4 Cyl 2.7 L GAS
$453.21 MSRP:$668.31You Save: $215.10 (33%)OEM (Genuine) 2010 Toyota Highlander Fuel Pump
PartNumber: 23220-28180
Product Specifications- Notes: Japan Built, 2.7 Liter
- Item Dimensions: 13.1 x 6.9 x 6.1 inches
- Item Weight: 1.20 Pounds
- Part Description: 2010 Toyota Highlander Fuel Pump
Vehicle Fitment- 2010 Toyota Highlander | Base | 4 Cyl 2.7 L GAS
$232.40 MSRP:$337.63You Save: $105.23 (32%)

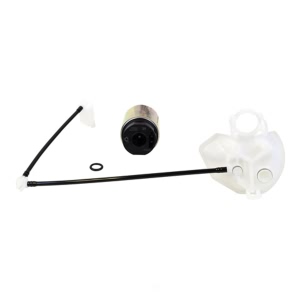

Denso® Fuel Pump And Strainer Set for 2010 Toyota Highlander
PartNumber: 950-0106Product Specifications- Notes: DENSO OE Replacement Fuel Pump & Strainer Kit
- Fuel Pump Type: Electrical
- Gaskets Included: No
- Internet Product Code (IPC): BD9C5CAA0F9
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 950-0106
- MFG Name: DENSO
- Package Contents: Fuel Pump Kit
- Pump Placement: In Tank
- Strainer Fitting Diameter: 0.43
- Strainer Length: 83.0
- Strainer Width: 55.00
- Supplier Company Name: DENSO
- UPC: 042511072114
- Part Description: 2010 Toyota Highlander Fuel Pump And Strainer Set
Vehicle Fitment- 2010 Toyota Highlander | All Trims | 6 Cyl 3.3L

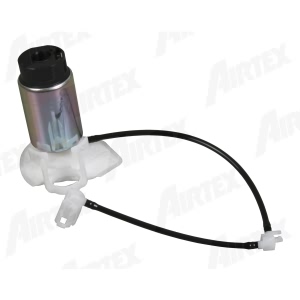

Airtex® In-Tank Fuel Pump And Strainer Set for 2010 Toyota Highlander
PartNumber: E8866Product Specifications- Notes: Japan Built
- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 75
- Maximum Pressure (psi): 65
- Minimum Free Flow Rate (gph): 65
- Minimum Pressure (psi): 55
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: RECESSED QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Maximum Pressure: 44
- Pump Type: Electrical
- UPC: 080044043898
- Voltage [V]: 12V
- Part Description: 2010 Toyota Highlander In-Tank Fuel Pump And Strainer Set
Vehicle Fitment- 2010 Toyota Highlander | All Trims | 6 Cyl 3.5L
Denso® Fuel Pump and Strainer Set for 2010 Toyota Highlander
PartNumber: 950-0207Product Specifications- Notes: DENSO OE Replacement Fuel Pump & Strainer Kit
- Fuel Pump Type: Electrical
- Pump Placement: In Tank
- Strainer Fitting Diameter: 0.35''
- Strainer Length: 59.0 mm
- Strainer Width: 74.00 mm
- UPC: 042511171619
- Part Description: 2010 Toyota Highlander Fuel Pump and Strainer Set
Vehicle Fitment- 2010 Toyota Highlander | All Trims | 6 Cyl 3.5L

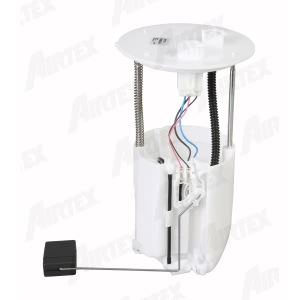

Airtex® Fuel Pump Module Assembly for 2010 Toyota Highlander
PartNumber: E8883MProduct Specifications- Notes: Except Japan Built
- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 55
- Maximum Pressure (psi): 50
- Minimum Free Flow Rate (gph): 45
- Minimum Pressure (psi): 50.0
- Outlet Count: 1
- Outlet Size: 5/16
- Outlet Type: FEMALE QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044038566
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2010 Toyota Highlander Fuel Pump Module Assembly
Vehicle Fitment- 2010 Toyota Highlander | All Trims | 6 Cyl 3.5L

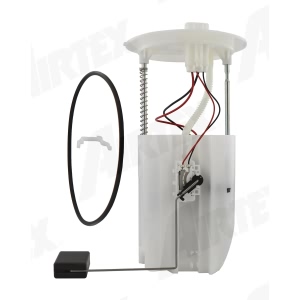

Airtex® Fuel Pump Module Assembly for 2010 Toyota Highlander
PartNumber: E9011MProduct Specifications- Notes: Exc Japan Built Vehicles; Incls Fuel Pump, Fuel Pressure Reg, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
- Gasket Included: Y
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 65
- Maximum Pressure Rate (psi): 55
- Minimum Free Flow Rate (gph): 55
- Minimum Pressure Rate (psi): 45
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: FEMALE QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044053200
- Part Description: 2010 Toyota Highlander Fuel Pump Module Assembly
Vehicle Fitment- 2010 Toyota Highlander | All Trims | 4 Cyl 2.7L
