2009 Ford Edge
< Back to View All
Fuel Systems
- Department
- Brands
- Prices
OEM (Genuine) 2009 Ford Edge Fuel Pump
PartNumber: 8T4Z-9H307-A
Product Specifications- Notes: W/AWD
- Other Names: Fuel Pump
- Item Dimensions: 8.2 x 10.5 x 13.5 inches
- Item Weight: 3.40 Pounds
- Fitment Type: Direct Replacement
- Replaces: 7T4Z-9H307-G, 7T4Z-9H307-A
- Part Description: 2009 Ford Edge Fuel Pump
Vehicle Fitment- 2009 Ford Edge | Limited, SE, SEL, SEL Plus, Sport | 6 Cyl 3.5 L GAS
$221.26 MSRP:$369.09You Save: $147.83 (41%)
Delphi® Fuel Pump Module Assembly for 2009 Ford Edge
PartNumber: FG1206Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 8
- Flow Rating: 26 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 94.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 180.0
- Resistance Ohms Full: 10.0
- Strainer Included: Yes
- System Pressure: 65 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604231784
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2009 Ford Edge Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Edge | All Trims | 6 Cyl 3.5L
$201.32
Autobest® Electric Fuel Pump Module Assembly for 2009 Ford Edge
PartNumber: F1529Product Specifications- Notes: Strainer required to validate the warranty
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 180
- Country of Orign: China
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 95
- Minimum Pump Pressure (PSI): 85
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.346
- Outlet Type: Hose
- Product Height (in): 1.5
- Product Length (in): 4.51
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Chip
- UPC: 00072845115294
- Voltage: 12V
- Weight (lbs): 0.66
- Wire Harness Included: No
- Part Description: 2009 Ford Edge Electric Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Edge | All Trims | 6 Cyl 3.5L
$27.02OEM (Genuine) 2009 Ford Edge Fuel Pump
PartNumber: 8T4Z-9H307-B
Product Specifications- Notes: W/O AWD
- Other Names: Fuel Pump
- Item Dimensions: 8.1 x 10.6 x 13.7 inches
- Item Weight: 3.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 7T4Z-9H307-H, 7T4Z-9H307-B
- Part Description: 2009 Ford Edge Fuel Pump
Vehicle Fitment- 2009 Ford Edge | Limited, SE, SEL, SEL Plus, Sport | 6 Cyl 3.5 L GAS
$225.62 MSRP:$376.36You Save: $150.74 (41%)
Delphi® Driver Side Fuel Pump Module Assembly for 2009 Ford Edge
PartNumber: FG1168Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 25 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 180.0
- Resistance Ohms Full: 10.0
- Strainer Included: Yes
- System Pressure: 65 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604231449
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2009 Ford Edge Driver Side Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Edge | All Trims | 6 Cyl 3.5L
$171.33
OEM (Genuine) 2009 Ford Edge Fuel Pump
PartNumber: 7T4Z-9275-B
Product Specifications- Notes: Edge, Mkx; AWD; Secondary
- Other Names: Fuel Pump
- Item Dimensions: 8.2 x 4.6 x 6.2 inches
- Item Weight: 0.90 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2009 Ford Edge Fuel Pump
Vehicle Fitment- 2009 Ford Edge | Limited, SE, SEL, SEL Plus, Sport | 6 Cyl 3.5 L GAS
$89.42 MSRP:$147.82You Save: $58.40 (40%)
Delphi® Fuel Tank Sending Unit for 2009 Ford Edge
PartNumber: FT4008Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Item Grade: Standard Replacement
- Package Contents: Fuel Transfer Unit with Float Arm, Seal, Instruction Sheet
- Regulator Included: No
- Resistance Ohms Empty: 180.0
- Resistance Ohms Full: 10.0
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604265031
- Vapor Pressure Sensor: No
- Part Description: 2009 Ford Edge Fuel Tank Sending Unit
Vehicle Fitment- 2009 Ford Edge | All Trims | 6 Cyl 3.5L
$76.85

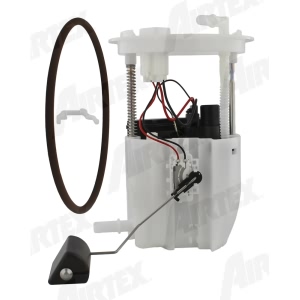

Airtex® Fuel Pump Module Assembly for 2009 Ford Edge
PartNumber: E2470MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 65
- Maximum Pressure (psi): 66
- Minimum Free Flow Rate (gph): 55
- Minimum Pressure (psi): 65.0
- Outlet Count: 1
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044035114
- Wiring Harness Included: No
- Part Description: 2009 Ford Edge Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Edge | All Trims | 6 Cyl 3.5L

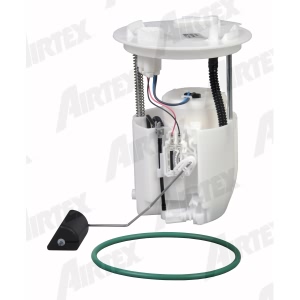

Airtex® Fuel Pump Module Assembly for 2009 Ford Edge
PartNumber: E2479MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): BED5FC66598
- Item Grade: OEM Standard
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 65
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E2479M
- Minimum Pressure (psi): 65.0
- Outlet Attachment: Quick Connect
- Outlet Size: 3/8:
- Outlet Type: QUICK CONNECT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044040798
- Wiring Harness Included: No
- Part Description: 2009 Ford Edge Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Edge | All Trims | 6 Cyl 3.5L
Autobest® Fuel Pump Module Assembly for 2009 Ford Edge
PartNumber: F1480AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FWD
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Trapezoid
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 65
- Minimum Pump Pressure (PSI): 65
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 9.25
- Product Length (in): 9.65
- Product Width (in): 9.45
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 180
- Resistance Ohms Full: 10
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845114808
- Voltage: 12V
- Weight (lbs): 2.6
- Part Description: 2009 Ford Edge Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Edge | All Trims | 6 Cyl 3.5L
Autobest® Fuel Pump Module Assembly for 2009 Ford Edge
PartNumber: F1481AProduct Specifications- Notes: Left Side;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,AWD
- Average Current Draw(A): 7.3
- Average Flow Rating(GPH): 42.3
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Trapezoid
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 66
- Minimum Pump Pressure (PSI): 66
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 9.25
- Product Length (in): 9.65
- Product Width (in): 9.45
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 180
- Resistance Ohms Full: 10
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845114815
- Voltage: 12V
- Weight (lbs): 2.8
- Part Description: 2009 Ford Edge Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Edge | All Trims | 6 Cyl 3.5L
