Notes: with Onboard Fuel Vapor Recovery;OE Part has White Label on Pump Cover;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 14
Flow Rating: 19 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 78.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 180.0
Resistance Ohms Full: 10.0
Strainer Included: Yes
System Pressure: 73 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604212189
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

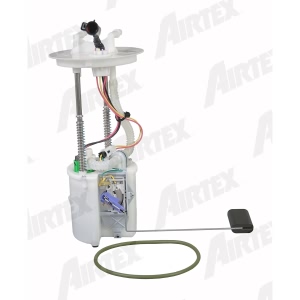

Part Description: 2008 Ford Escape Fuel Pump Module Assembly
Notes: OE Part has Blue Label on Pump Cover;without Onboard Fuel Vapor Recovery;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 14
Flow Rating: 19 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 78.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 180.0
Resistance Ohms Full: 10.0
Strainer Included: Yes
System Pressure: 73 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604212196
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

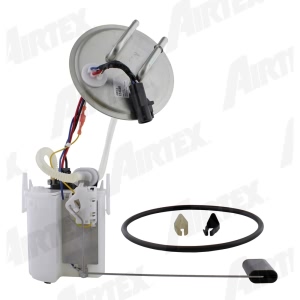

Part Description: 2008 Ford Escape Fuel Pump Module Assembly
Notes: Used to Service Modules With Ford OEM Module Style Connector;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 38 gph
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 90.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Type: Hose
Pump Type: Electric
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604200827
Voltage: 12.0 VDC
Wiring Harness Included: No
Part Description: 2008 Ford Escape Fuel Pump And Strainer Set
Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir and Fuel Strainer;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir and Fuel Strainer,GAS;w/Onboard Refuel Vapor Recovery
Gasket or Seal Included: No
Height (in.): 7
Inlet Type: Strainer
Length (in.): 14
Life Cycle Status Code: Available to Order
Maximum Free Flow (GPH): 75
Maximum Pump Pressure (PSI): 90
Minimum Free Flow (GPH): 65
Minimum Pump Pressure (PSI): 80
Outlet Size: 3/8
Outlet Type: Quick Connect
Package Contents: Pump & Kit
UPC: 072845114068
Weight (lbs.): 2.65
Width (in.): 10

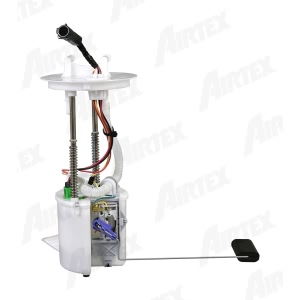

Part Description: 2008 Ford Escape Fuel Pump Module Assembly
