Delphi® Fuel Tank Sending Unit for 2008 Dodge Magnum
PartNumber: FT4018Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas/Flex
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Item Grade: Standard Replacement
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 4
- Outlet Type: Quick Connect
- Package Contents: Fuel Transfer Unit with Float Arm, Seal, Instruction Sheet
- Regulator Included: Yes
- Resistance Ohms Empty: 990.0
- Resistance Ohms Full: 50.0
- Strainer Included: No
- Terminal Gender: Female
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604266618
- Vapor Pressure Sensor: No
- Part Description: 2008 Dodge Magnum Fuel Tank Sending Unit
Vehicle Fitment- 2008 Dodge Magnum | All Trims | 6 Cyl 2.7L
- 2008 Dodge Magnum | All Trims | 6 Cyl 3.5L
- 2008 Dodge Magnum | All Trims | 8 Cyl 5.7L
- 2008 Dodge Magnum | All Trims | 8 Cyl 6.1L
$176.63
Autobest® Fuel Pump Module Assembly for 2008 Dodge Magnum
PartNumber: F3103AProduct Specifications- Notes: with 19 Gallon Tank;Driver Side Pump;w/19 Gallon Tank;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 11
- Average Flow Rating(GPH): 41.3
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.314
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 108.75
- Minimum Pump Pressure (PSI): 79.75
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 0.311
- Outlet Type: Quick Connect
- Product Height (in): 7.6
- Product Length (in): 11.5
- Product Width (in): 8.46
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 53
- Resistance Ohms Full: 840
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845171924
- Voltage: 12V
- Weight (lbs): 2.45
- Wire Harness Included: No
- Part Description: 2008 Dodge Magnum Fuel Pump Module Assembly
Vehicle Fitment- 2008 Dodge Magnum | All Trims | 6 Cyl 2.7L
- 2008 Dodge Magnum | All Trims | 6 Cyl 3.5L
- 2008 Dodge Magnum | All Trims | 8 Cyl 5.7L
$85.89
Delphi® Driver Side Fuel Pump Module Assembly for 2008 Dodge Magnum
PartNumber: FG1053Product Specifications- Notes: with 19 Gallon Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 24 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 990.0
- Resistance Ohms Full: 51.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Blade
- UPC: 689604215852
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2008 Dodge Magnum Driver Side Fuel Pump Module Assembly
Vehicle Fitment- 2008 Dodge Magnum | All Trims | 6 Cyl 3.5L
- 2008 Dodge Magnum | All Trims | 8 Cyl 5.7L
$147.08
Autobest® Electric Fuel Pump Module Assembly for 2008 Dodge Magnum
PartNumber: F3280Product Specifications- Notes: Includes Fuel Pressure Regulator, Sending Unit, Float, and Tank Seal. Doesn't include Fuel Pump.;FUEL TRANSFER PUMP;Right Side
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- In Tank or External: In Tank
- Installation Warnings: No
- Lock Ring Included: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 8.66
- Product Length (in): 10.67
- Product Width (in): 9.8
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 995
- Resistance Ohms Full: 51
- Strainer Included: No
- UPC: 00072845132802
- Weight (lbs): 2.65
- Wire Harness Included: No
- Part Description: 2008 Dodge Magnum Electric Fuel Pump Module Assembly
Vehicle Fitment- 2008 Dodge Magnum | All Trims | 6 Cyl 2.7L
- 2008 Dodge Magnum | All Trims | 6 Cyl 3.5L
- 2008 Dodge Magnum | All Trims | 8 Cyl 5.7L
- 2008 Dodge Magnum | All Trims | 8 Cyl 6.1L
$83.74
Delphi® Driver Side Fuel Pump Module Assembly for 2008 Dodge Magnum
PartNumber: FG1052Product Specifications- Notes: with 18 Gallon Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 24 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 990.0
- Resistance Ohms Full: 51.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Blade
- UPC: 689604215845
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2008 Dodge Magnum Driver Side Fuel Pump Module Assembly
Vehicle Fitment- 2008 Dodge Magnum | All Trims | 6 Cyl 2.7L
- 2008 Dodge Magnum | All Trims | 6 Cyl 3.5L
$136.46
Autobest® Fuel Pump Module Assembly for 2008 Dodge Magnum
PartNumber: F3252AProduct Specifications- Notes: Driver Side Pump;w/18 Gallon Tank;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 38.2
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.314
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: External and Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 108.75
- Minimum Pump Pressure (PSI): 79.75
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 0.354
- Outlet Type: Quick Connect
- Product Height (in): 7.28
- Product Length (in): 10.71
- Product Width (in): 7.8
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 991
- Resistance Ohms Full: 51
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: PIN
- UPC: 00072845132529
- Voltage: 12V
- Weight (lbs): 2.21
- Wire Harness Included: No
- Part Description: 2008 Dodge Magnum Fuel Pump Module Assembly
Vehicle Fitment- 2008 Dodge Magnum | All Trims | 6 Cyl 2.7L
- 2008 Dodge Magnum | All Trims | 6 Cyl 3.5L
- 2008 Dodge Magnum | All Trims | 8 Cyl 5.7L
$77.59
OEM (Genuine) 2008 Dodge Magnum Fuel Pump Complete Kit-Module Assembly Left
PartNumber: 68102700AC
Product Specifications- Other Names: Fuel Pump
- Item Dimensions: 15.1 x 14.3 x 8.6 inches
- Item Weight: 4.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 68041407AB, 68041407AA, RL161808AE, 68102700AA, 5136021AG, 5136021AF, 68102700AB, RL136021AG, 5161808AD, 5161808AE
- Replaced by: 68102700AD
- Part Description: 2008 Dodge Magnum Fuel Pump Complete Kit-Module Assembly Left
Vehicle Fitment- 2008 Dodge Magnum | SRT8 | 8 Cyl 6.1 L GAS
$430.09 MSRP:$657.00You Save: $226.91 (35%)
OEM (Genuine) 2008 Dodge Magnum Module Fuel PUMP/LEV
PartNumber: 5136022AK
Product Specifications- Other Names: Fuel Pump
- Item Dimensions: 14.8 x 11.3 x 8.1 inches
- Item Weight: 3.40 Pounds
- Replaced by: 5136022AL
- Part Description: 2008 Dodge Magnum Module Fuel PUMP/LEV
Vehicle Fitment- 2008 Dodge Magnum | R/T, SE, SXT | 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS, 8 Cyl 5.7 L GAS
$408.09 MSRP:$623.00You Save: $214.91 (35%)
OEM (Genuine) 2008 Dodge Magnum MODULEKIT Pickup / L
PartNumber: 5136023AF
Product Specifications- Notes: Right Side
- Other Names: Auxiliary Pump, Fuel Gauge Sending Unit, Fuel Pump
- Item Dimensions: 15.1 x 11.9 x 8.8 inches
- Item Weight: 3.00 Pounds
- Fitment Type: Direct Replacement
- Replaces: RL136023AD, 5136023AB, 5136023AD, RL136023AC, 5136023AE, 5136023AC
- Part Description: 2008 Dodge Magnum MODULEKIT Pickup / L
Vehicle Fitment- 2008 Dodge Magnum | Base, R/T, SE, SRT8, SXT, SXT Special Edition | 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS
$307.65 MSRP:$451.00You Save: $143.35 (32%)

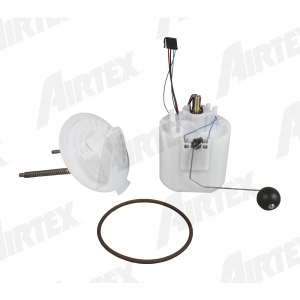

Airtex® Driver Side Fuel Pump Module Assembly for 2008 Dodge Magnum
PartNumber: E7192MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): E94A838A45E
- Item Grade: OEM Standard
- Item has MSDS (SDS): No
- Maximum Free Flow Rate (gph): 85
- Maximum Pressure (psi): 120
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E7192M
- Minimum Pressure (psi): 63.0
- Package Contents: Fuel Pump & Kit
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044034155
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2008 Dodge Magnum Driver Side Fuel Pump Module Assembly
Vehicle Fitment- 2008 Dodge Magnum | All Trims | 8 Cyl 6.1L
Airtex® Driver Side In-Tank Fuel Pump Module Assembly for 2008 Dodge Magnum
PartNumber: E7241MProduct Specifications- Notes: with 18 Gallon Tank
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 75
- Maximum Pressure Rate (psi): 115
- Minimum Free Flow Rate (gph): 65
- Minimum Pressure Rate (psi): 105
- Outlet Count: 1
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044034278
- Warranty: Lifetime Limited Warranty
- Part Description: 2008 Dodge Magnum Driver Side In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2008 Dodge Magnum | All Trims | 6 Cyl 2.7L
- 2008 Dodge Magnum | All Trims | 6 Cyl 3.5L
- 2008 Dodge Magnum | All Trims | 8 Cyl 5.7L
OEM (Genuine) 2008 Dodge Magnum Fuel Pump/Level Unit Module
PartNumber: 5136021AE
Product Specifications- Notes: Left Side, 18 Gallon
- Other Names: Fuel Pump
- Item Dimensions: 8.2 x 11.5 x 15.3 inches
- Item Weight: 3.30 Pounds
- Fitment Type: Direct Replacement
- Replaces: 5136021AB, 5136021AC, 5136021AD
- Part Description: 2008 Dodge Magnum Fuel Pump/Level Unit Module
Vehicle Fitment- 2008 Dodge Magnum | Base, R/T, SE, SRT8, SXT, SXT Special Edition | 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS
