Notes: Except Left Side Rear Hinged Door;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 11
Flow Rating: 28 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Flex
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 73.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 3
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 54 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604160343
Vapor Pressure Sensor: Yes
Voltage: 13.0 VDC

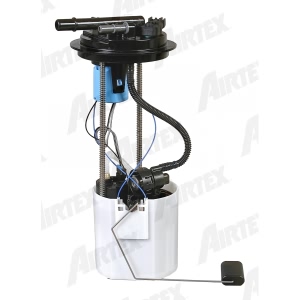

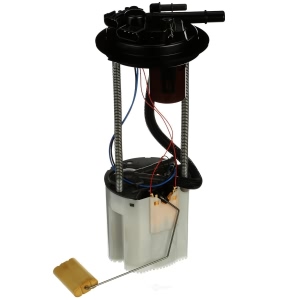

Part Description: 2008 Chevrolet Express 1500 Fuel Pump Module Assembly
Notes: Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; 4.3l; W/O Left Rear Door;Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; 4.8l, 5.3l; W/O Left Rear Door
Other Names: Fuel Pump
Item Dimensions: 17.3 x 13.6 x 10.6 inches
Item Weight: 2.80 Pounds
Fitment Type: Direct Replacement
Replaces: 19303380, 19153039, 88965414, 19133519
Part Description: 2008 Chevrolet Express 1500 Fuel Pump
More Info
Vehicle Fitment
2008 Chevrolet Express 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
Notes: RPO Code E26 - w/Left Side Rear Hinged Door;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 11
Flow Rating: 28 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Flex
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 73.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 3
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 54 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604160374
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC
Part Description: 2008 Chevrolet Express 1500 Fuel Pump Module Assembly
Notes: RPO Code E26 - w/Left Side Rear Hinged Door;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Notes: Exc Left Side Rear Hinged Door; Incls Fuel Pump, Fuel Pressure Reg, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
Gasket Included: Y
Inlet Count: 1
Inlet Type: STRAINER
Item Grade: STANDARD REPLACEMENT
Maximum Free Flow Rate (gph): 85
Maximum Pressure Rate (psi): 65
Minimum Free Flow Rate (gph): 75
Minimum Pressure Rate (psi): 55
Outlet Count: 1
Outlet Size: 3/8"
Outlet Type: QUICK CONNECT
Package Contents: PUMP & KIT
Package Quantity: 1
UPC: 080044049487

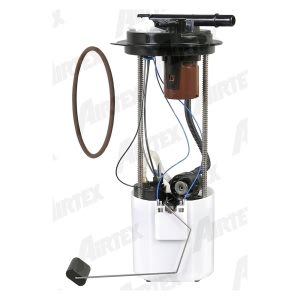

Part Description: 2008 Chevrolet Express 1500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2008 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L
Notes: Includes Fuel Pump, Fuel Pressure Regulator, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal;Exc. Left Side Rear Hinged Door
Average Current Draw(A): 10.4
Average Flow Rating(GPH): 46
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Racetrack
Country of Orign: China
Fuel Filter Included: Yes
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: Yes
Fuel Type: Turbine
Gasket or Seal Included: Yes
Gasket Or Seal Material: NBR
Grade Type: Performance
Housing Material: POM
In Tank or External: In Tank
Inlet Size: 0.433
Inlet Type: Strainer
Installation Warnings: No
Internal or External: Internal
Internal Or External Strainer: Internal
Lock Ring Included: No
Maximum Free Flow (GPH): 79
Maximum Pump Pressure (PSI): 64
Minimum Free Flow (GPH): 67.3
Minimum Pump Pressure (PSI): 59
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Quantity: 1
Outlet Size: 3/8
Outlet Type: Quick Connect
Product Height (in): 5.98
Product Length (in): 15.43
Product Width (in): 10.35
Pump Type: Turbine
Regulator Included: Yes
Resistance Ohms Empty: 250
Resistance Ohms Full: 40
Strainer Included: No
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: PIN
UPC: 00072845128324
Voltage: 12V
Weight (lbs): 3.14
Wire Harness Included: No
Part Description: 2008 Chevrolet Express 1500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2008 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L
